pandas

The pandas logo

Learning outcomes

At the end of this sessions, learners …

  • have practiced using the documentation of favorite HPC cluster

  • understand what pandas is

  • understand why pandas is important

  • have run Python code that uses pandas

  • (optional) have read a comma-separated file using pandas

  • (optional) have saved a table as a comma-separated file using pandas

  • (optional) have seen the effect of the index argument when saving a table

  • (optional) have tried out some of the operation at the the pandas page ‘10 minutes to pandas’

For teachers

Repeat:

  • Q: What is an HPC cluster? A: A group of computers working together to do things one computer would not be able to do

  • Q: When we are on an HPC cluster, what is the name of the computer we are on? A: The login node

  • Q: What is a software module? A: Pre-installed software of a specific version

  • Q: In which two ways can we find out which software module to load? A: search the documentation or search the modules using module spider

  • Q: If there is no documentation, how to find out which software module to load? A: search the modules using module spider

  • Q: If there is no documentation, and there is no software module, what do we do? A: we install this ourselves

  • Q: What is pip? A: The Python package installer

  • Q: How do we behave on the login node? A: We run only light jobs

  • Q: How do we run heavy calculations? A: We submit a job to the job scheduler

Prior:

  • What is data wrangling?

  • What is tidy data?

What is pandas?

From the pandas homepage:

pandas is [an] […] open source data analysis and manipulation tool […]

It allows you to do work with/on data, for example, you can turn this messy data …

Country

1952

1957

1962

Albania

-9

-9

-9

Argentina

-9

-1

-1

using this pandas code …

table = pd.read_csv("dem_score.csv")
table = table.melt(id_vars = ["country"])

into this tidy data, which is easier to work with:

Country

Year

Democracy level

Albania

1952

-9

Albania

1957

-9

Albania

1962

-9

Argentina

1952

-9

Argentina

1957

-1

Argentina

1962

-1

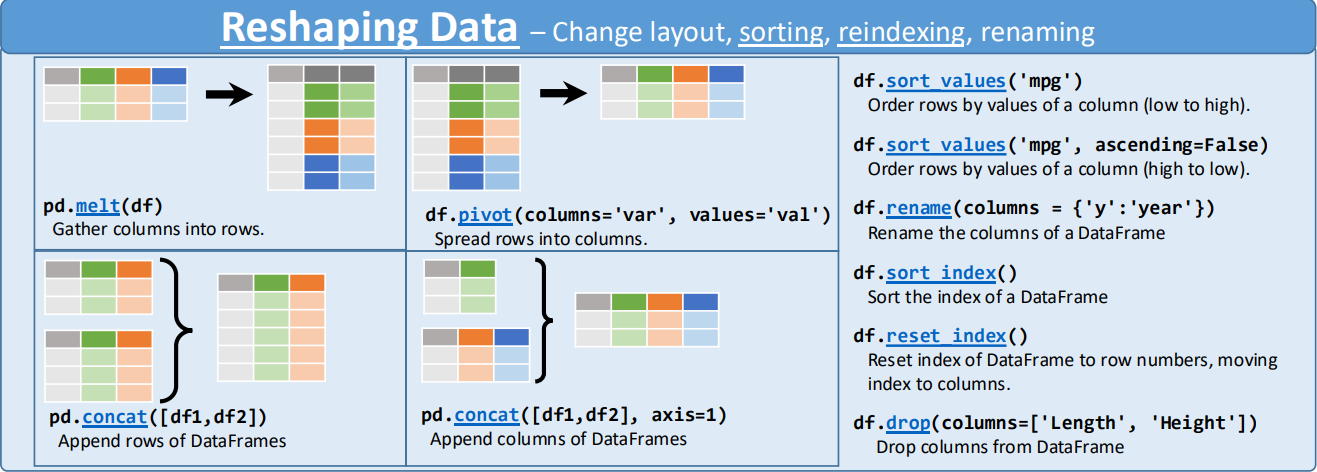

pandas can do many other things, such as reshaping data (from the pandas cheat sheet):

Reshaping functions, from the cheat sheet

Why pandas is important

pandas is a popular Python package that allows you to work with data and it gives you a vocabulary (and the Python functions) to do so.

How popular is pandas?

pandas is not popular enough to be in the PyPI top 20.

However, at the pandas PyPI statistics page we see that it has more than 600 million downloads per month. As the number 20 package has around 800 million downloads per month, we can infer that it is not all too unpopular.

Exercises

Want to see the answers as a video?

HPC cluster

YouTube video

Alvis

YouTube video

COSMOS

YouTube video

Dardel

YouTube video

Kebnekaise

YouTube video

Pelle

YouTube video

Tetralith

YouTube video

Exercise 1: minimal code

Use the documentation of the HPC cluster you work on.

Answer: where is your documentation?

Sorted by HPC cluster:

HPC center

HPC cluster

HPC cluster-specific documentation

C3SE

Alvis

Documentation

UPPMAX

Bianca

Documentation

LUNARC

COSMOS

Documentation

PDC

Dardel

Documentation

HPC2N

Kebnekaise

Documentation

UPPMAX

Pelle

Documentation

NSC

Tetralith

Documentation

In that documentation, find the software module to load the pandas Python package.

Answer: where is the pandas documentation?

HPC cluster

HPC cluster-specific pandas documentation

Alvis

Has no documentation on how to load pandas

Bianca

pandas documentation

COSMOS

Has no documentation on how to load pandas

Dardel

Has no documentation on how to load pandas

Kebnekaise

pandas documentation

Pelle

pandas documentation

Tetralith

pandas documentation

In a terminal (on your HPC cluster), load the software module to use pandas.

Answer: how to load the pandas software module

HPC cluster

How to load the pandas software module

Alvis

module load matplotlib/3.9.2-gfbf-2024a

COSMOS

module load GCC/13.2.0 Python/3.11.5 SciPy-bundle/2023.11

Dardel

module load python/3.12.3 ; pip3 install pandas

Kebnekaise

module load GCC/13.3.0 SciPy-bundle/2024.05

Pelle

module load SciPy-bundle/2024.05-gfbf-2024a

Tetralith

module load Python/3.10.4-env-hpc1-gcc-2022a-eb

On your HPC cluster, create a script called pandas_exercise_1.py with the following code:

import pandas
print(pandas.__version__)

Run the script.

Answer: how to run the script

HPC cluster

How to run the script

Alvis

python pandas_exercise_1.py

COSMOS

python pandas_exercise_1.py

Dardel

python3 pandas_exercise_1.py

Kebnekaise

python pandas_exercise_1.py

Pelle

python pandas_exercise_1.py

Tetralith

python pandas_exercise_1.py

What do you see?

Answer: how does that look like?

The output looks similar to this:

3.0.1

Even though the code shows nothing directly useful, why is this a useful exercise anyways?

Answer

This is a useful exercise, because it proves that you have successfully loaded/installed pandas.

(optional) Exercise 2: reading and saving a comma-separated file

In this exercise, we will first read the ‘diamonds’ dataset (as a comma-separated file): a dataset about diamonds. It is described in the ggplot2 (an R package) documentation.

Download this file to the same folder as where you are running your Python code.

How do I do that?

There are many ways:

wget https://raw.githubusercontent.com/UPPMAX/HPC-python/refs/heads/main/docs/day3/pandas/diamonds.csv

  • Your favorite alternative way

On your HPC cluster, create a script called pandas_exercise_2.py with the following code:

import pandas as pd

table = pd.read_csv("diamonds.csv")
print(table)

Run the script pandas_exercise_2.py.

Answer: how to run the script

HPC cluster

How to run the script

Alvis

python pandas_exercise_2.py

COSMOS

python pandas_exercise_2.py

Dardel

python3 pandas_exercise_2.py

Kebnekaise

python pandas_exercise_2.py

Pelle

python pandas_exercise_2.py

Tetralith

python pandas_exercise_2.py

What does the script pandas_exercise_2.py do?

Answer

It reads a comma-separated file into memory.

Next step is to save it. Add the following code to pandas_exercise_2.py:

table.to_csv("pandas_exercise_2.csv")

Again, run the script pandas_exercise_2.py.

Answer: how to run the script

HPC cluster

How to run the script

Alvis

python pandas_exercise_2.py

COSMOS

python pandas_exercise_2.py

Dardel

python3 pandas_exercise_2.py

Kebnekaise

python pandas_exercise_2.py

Pelle

python pandas_exercise_2.py

Tetralith

python pandas_exercise_2.py

Take a look at the file pandas_exercise_2.csv. What has been added to the data?

Answer

Of each row in the data, there has been an index added:

,carat,cut,color,clarity,depth,table,price,x,y,z
0,0.23,Ideal,E,SI2,61.5,55.0,326,3.95,3.98,2.43
1,0.21,Premium,E,SI1,59.8,61.0,326,3.89,3.84,2.31
2,0.23,Good,E,VS1,56.9,65.0,327,4.05,4.07,2.31
3,0.29,Premium,I,VS2,62.4,58.0,334,4.2,4.23,2.63
4,0.31,Good,J,SI2,63.3,58.0,335,4.34,4.35,2.75

In pandas_exercise_2.py, replace the last line by this version:

table.to_csv("pandas_exercise_2.csv", index = False)

Run pandas_exercise_2.py. How does the data look like now?

Answer

Now, the file looks like shown below, where there is no indexing anymore.

carat,cut,color,clarity,depth,table,price,x,y,z
0.23,Ideal,E,SI2,61.5,55.0,326,3.95,3.98,2.43
0.21,Premium,E,SI1,59.8,61.0,326,3.89,3.84,2.31
0.23,Good,E,VS1,56.9,65.0,327,4.05,4.07,2.31
0.29,Premium,I,VS2,62.4,58.0,334,4.2,4.23,2.63
0.31,Good,J,SI2,63.3,58.0,335,4.34,4.35,2.75

What seems to be the most useful way to save: with or without indexing?

Answer

Typically, you will want to save without indexing.

Why would pandas supply this option, to save with/without indexing?

Answer

For backwards compatibility.

Indexing was a useful feature in the field pandas was initially developed in, so pandas always used indexing, with no way to disable this feature.

However, later it was found that indexing is not useful in other fields.

There were two options:

  • Remove indexing from pandas

  • Allow users to disable indexing

Removing indexing would cause old code to break, so this was decided against. Instead, it was decided to allow users to disable indexing when needed.

(optional) Exercise 3: tidy data

pandas shines when the data is tidy.

Search the web for ‘What is tidy data?’. Is the diamonds dataset tidy? Why?

Answer

I found the definition below from a tidyr (an R package) article:

In tidy data:

  • Each variable is a column; each column is a variable.

  • Each observation is a row; each row is an observation.

  • Each value is a cell; each cell is a single value.

The diamonds dataset is tidy, because:

  • Each feature of each single diamond has a column. Each feature is observed at more-or-less the same time

  • Each diamond has its own row

  • Each value in the table is indeed one value

Now take a look at a dataset from this book called dem_score.csv. This dataset shows the ratings of the level of democracy in different countries spanning 1952 to 1992, where the minimum value of -10 corresponds to a highly autocratic nation whereas a value of 10 corresponds to a highly democratic nation. Here is how it looks like:

country,1952,1957,1962,1967,1972,1977,1982,1987,1992
Albania,-9,-9,-9,-9,-9,-9,-9,-9,5
Argentina,-9,-1,-1,-9,-9,-9,-8,8,7
Armenia,-9,-7,-7,-7,-7,-7,-7,-7,7
Australia,10,10,10,10,10,10,10,10,10

Is the dem_score dataset tidy? Why?

Answer

I found the definition below from a tidyr (an R package) article:

In tidy data:

  • Each variable is a column; each column is a variable.

  • Each observation is a row; each row is an observation.

  • Each value is a cell; each cell is a single value.

The dem_score.csv dataset is not tidy, because:

  • For all expect the first column, these columns are values: they are values for the year the measurement was done.

  • Each row contains multiple observations: per country, it shows the democratic index of 1952, the democratic index of 1953, etc.

  • Each value in the table is indeed one value

How would this data look like, would it be tidy?

Answer

Here is how this data would look like, would it be tidy:

country,year,democracy_level
Albania,1952,-9
Albania,1953,-9
Albania,1954,-9
Albania,1955,-9

Create a Python script called pandas_exercise_3.py. In that script, use pandas to read the dem_score.csv dataset, convert it to tidy data and save it as tidy_dem_scores.csv.

For this use:

Answer

Here is the minimal code to do so:

import pandas as pd
table = pd.read_csv("dem_score.csv")
table = table.melt(id_vars = ["country"])
table.rename(columns = {"variable": "year", "value": "democratic_score"}, inplace = True)
table.to_csv("tidy_dem_scores.csv", index = False)

(optional) Exercise 4: what does pandas mean?

The word pandas is actually a shortened version of something. Search the internet for what it stands for. In which field did pandas originate?

Answer

pandas is short for ‘panel data’. Panel data is a type of data set used in econometrics. Econometrics is the field where pandas originated.

Done?

Go to the session about matplotlib
