Merge conflicts¶

Learning outcomes

Learners ...

understand what a merge conflict is
can fix merge conflicts

For teachers

Prior:

When would your version control system reject your push?
What is a merge conflicts?
Why can't merge conflicts be resolved automatically?

What is a merge conflict?¶

A merge conflict happens when two people have modified the same parts of the same file.

They are indicated in a file like this:

<<<<< fedcba0987654321fedcba
Once upon a time, there was a prince.
=====
Once upon a time ... ... and they lived happily every after.
>>>>> 1234567890abcdef123456

Here is a schematic overview of the merge conflict we will cause in the exercises:

graph TB
  classDef optional_node stroke-dasharray: 5 5

  subgraph online
    direction TD
    version_a_online["abcdef1: Once upon a time ..."]
    version_b["123456a: Once upon a time, there was a prince."]
    version_a_online --> version_b
  end
  subgraph local
    direction TD
    version_a_local["abcdef1: Once upon a time ..."]
    version_c["a1b2c3d: Once upon a time ... ... and they lived happily every after."]
    version_a_local --> version_c
  end

a schematic overview of the merge conflict we will cause in the exercises. The hexadecimal numbers indicate the version of the file (i.e. the commit hash). The actual file content starts after the colon.

Why are merge conflict important?¶

Merge conflicts inevitably happen when working together.

A merge conflict forces you to think and sometimes need special attention by the most experienced team member.

Strategies to avoid merge conflicts¶

'Take small steps - always' [Thomas and Hunt, 2019] (tip 42). This overlaps with the mantra 'Commit early, commit often'
Limit the amount of characters per line: the version control system works on a line-by-line basis

Exercises¶

Exercise 1: create a merge conflict¶

In the learners project, in your own learners subfolder, create a file called fairytale.txt with the text:

Once upon a time ...

How do I do this again?

Login to GitHub.

Navigate to the learners project.

Click on the learners folder.

If there is a folder with your name:

click on that folder

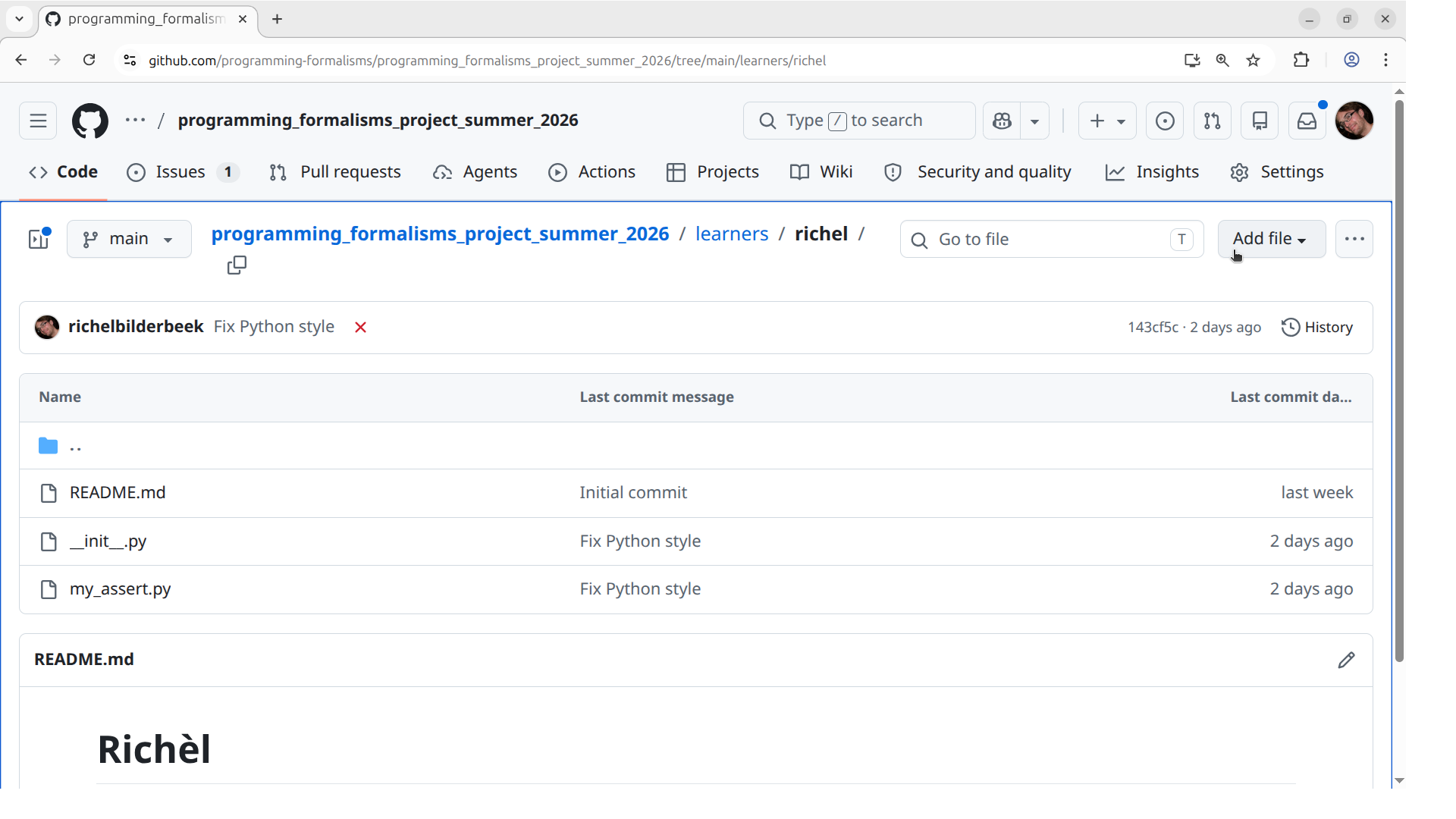

click 'Add file'

How does that look like?

It looks similar to this:

Click 'Add file'

Else:

create it by putting the folder name before the filename (e.g. call the file sven/fairytale.txt).

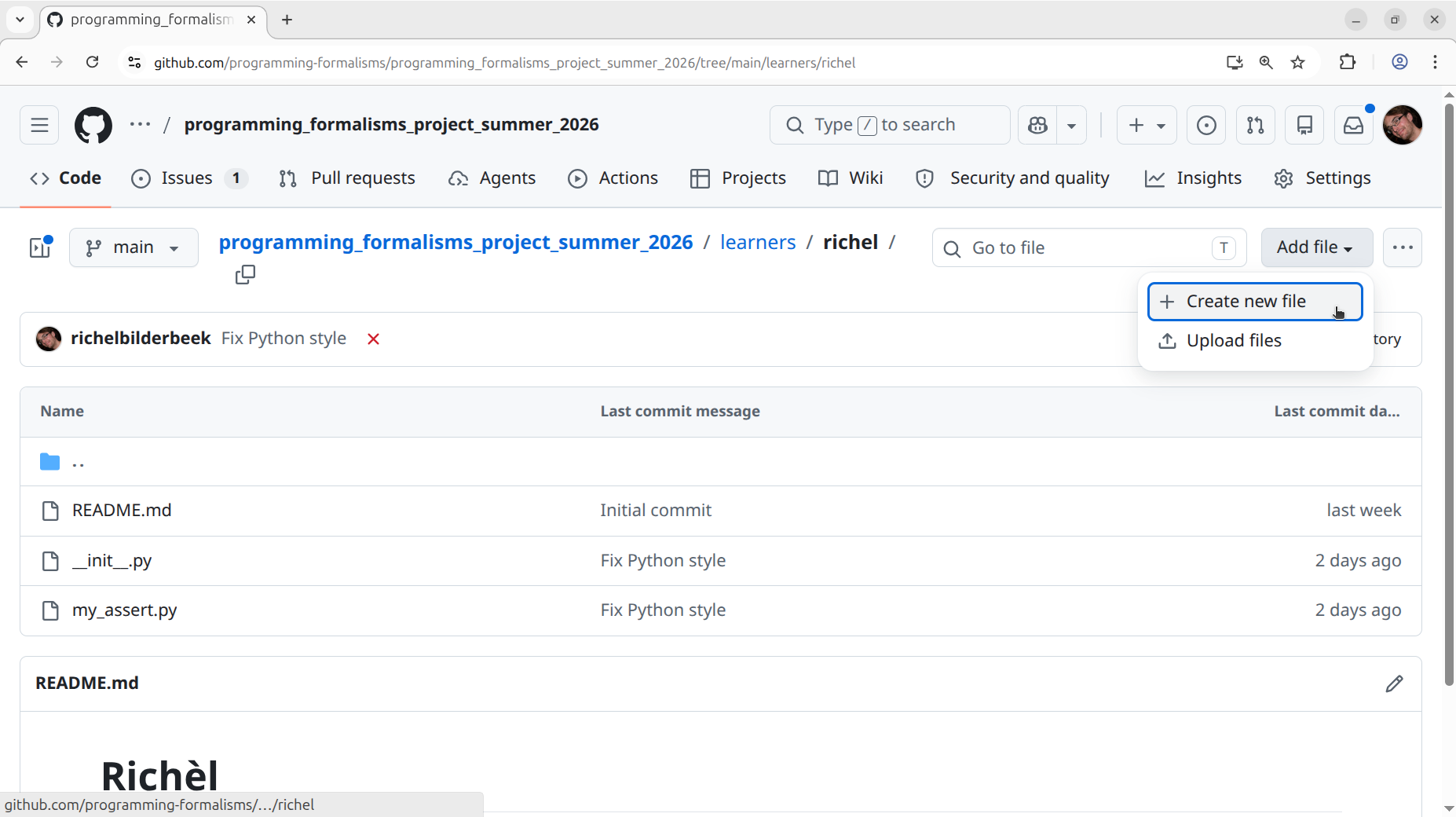

Click on 'Create new file'.

How does that look like?

It looks similar to this:

Click 'Create new file'

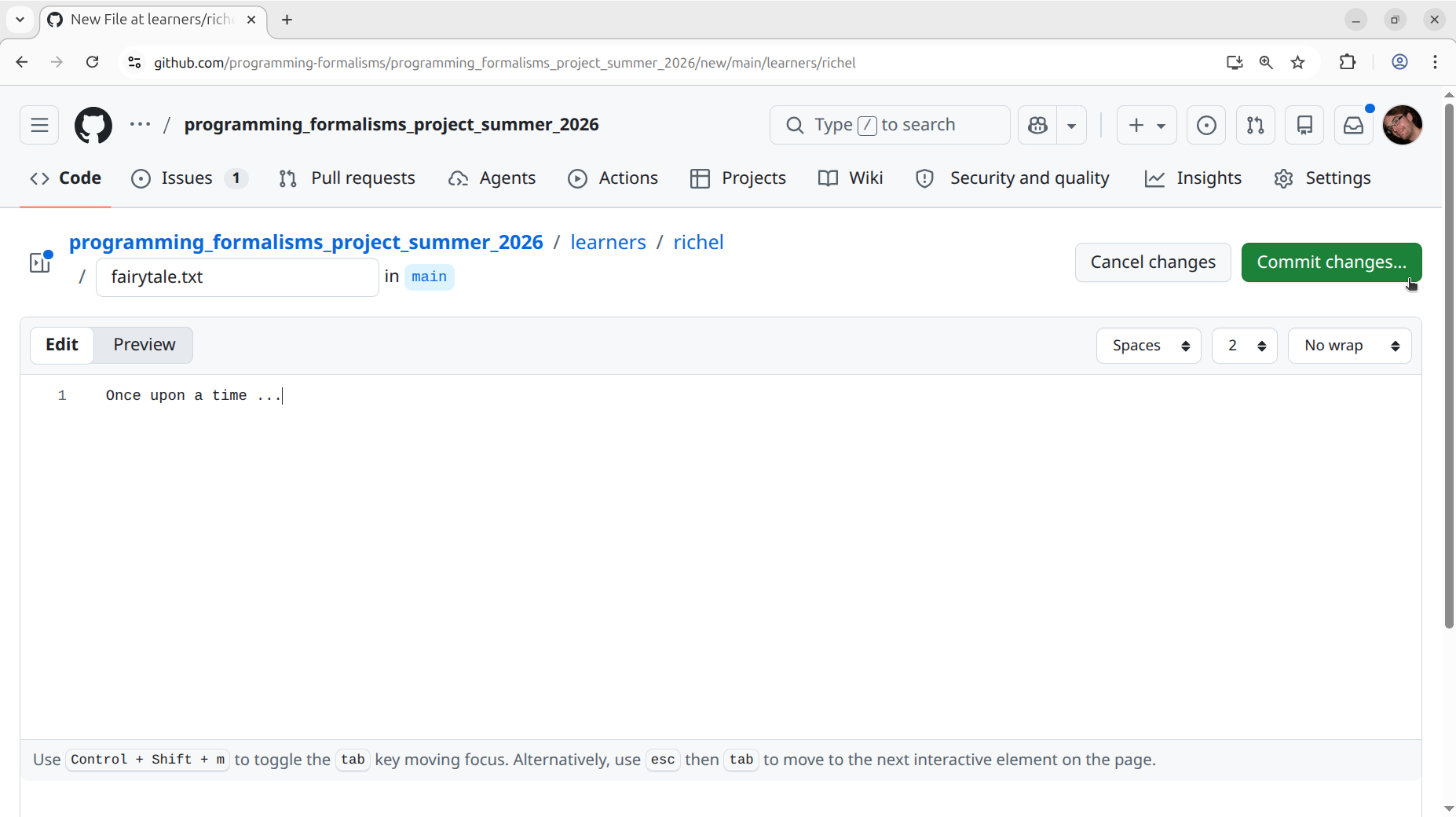

With the filename set to fairytale.txt and the text as requested, click on 'Commit'.

How does that look like?

It looks similar to this:

Click on 'Commit'

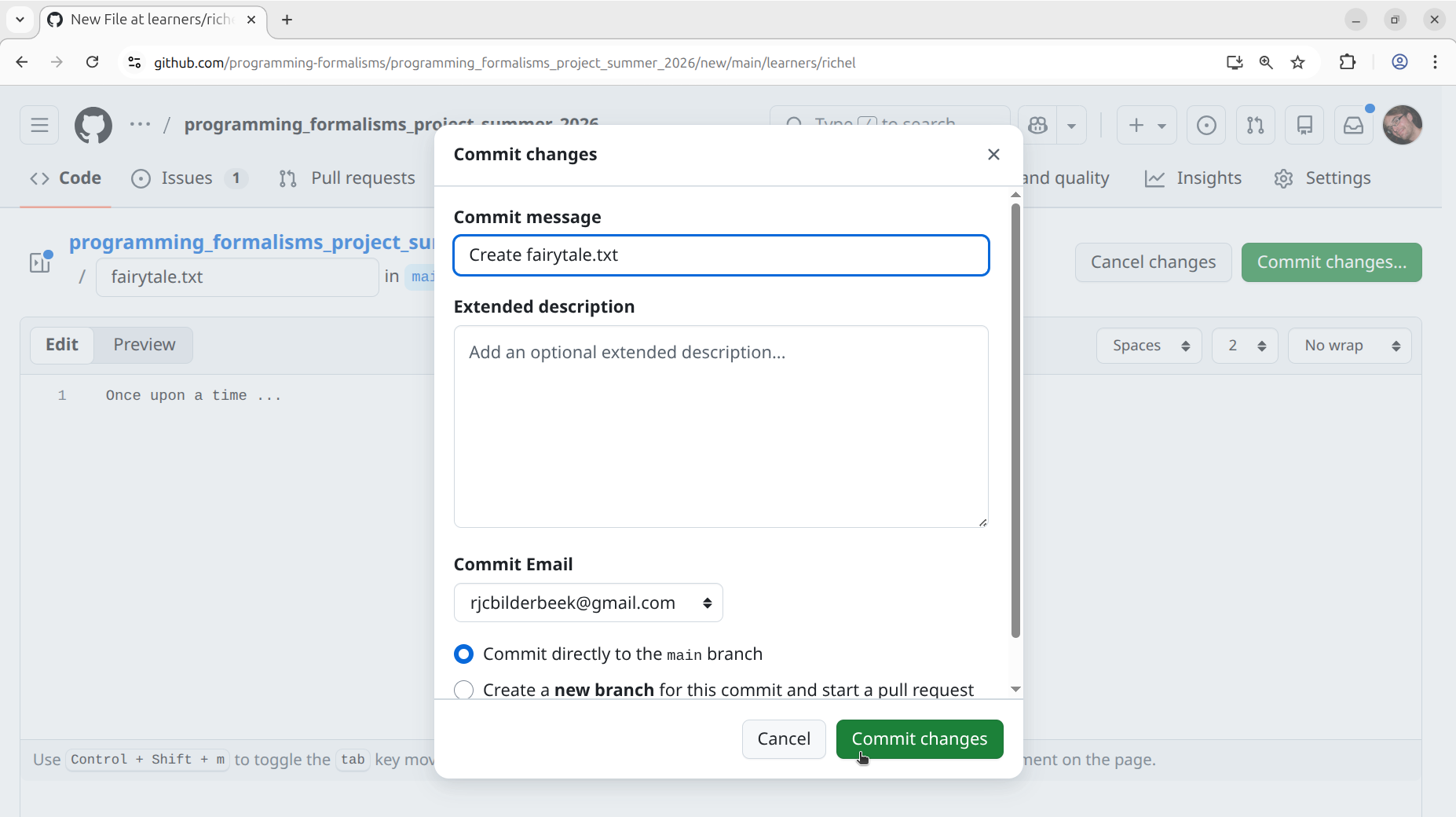

Enter a commit message (the default one is good enough) and click 'Commit changes'

How does that look like?

It looks similar to this:

Add a commit message

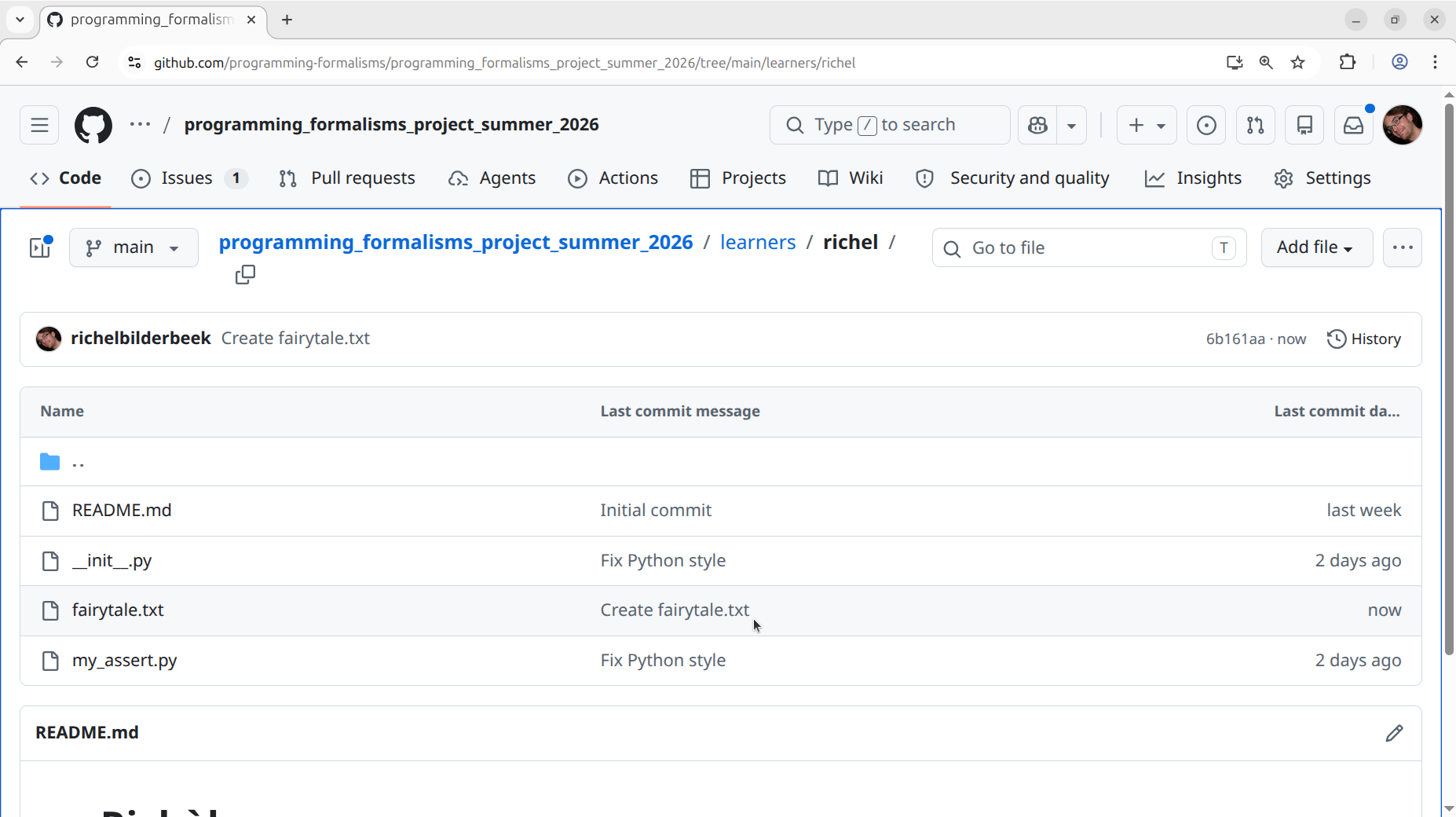

You have now created the new file, as shown by the web interface.

How does that look like?

It looks similar to this:

The newly created file on GitHub

In VS Code, fetch the latest state of the remote repository.

How I do that again?

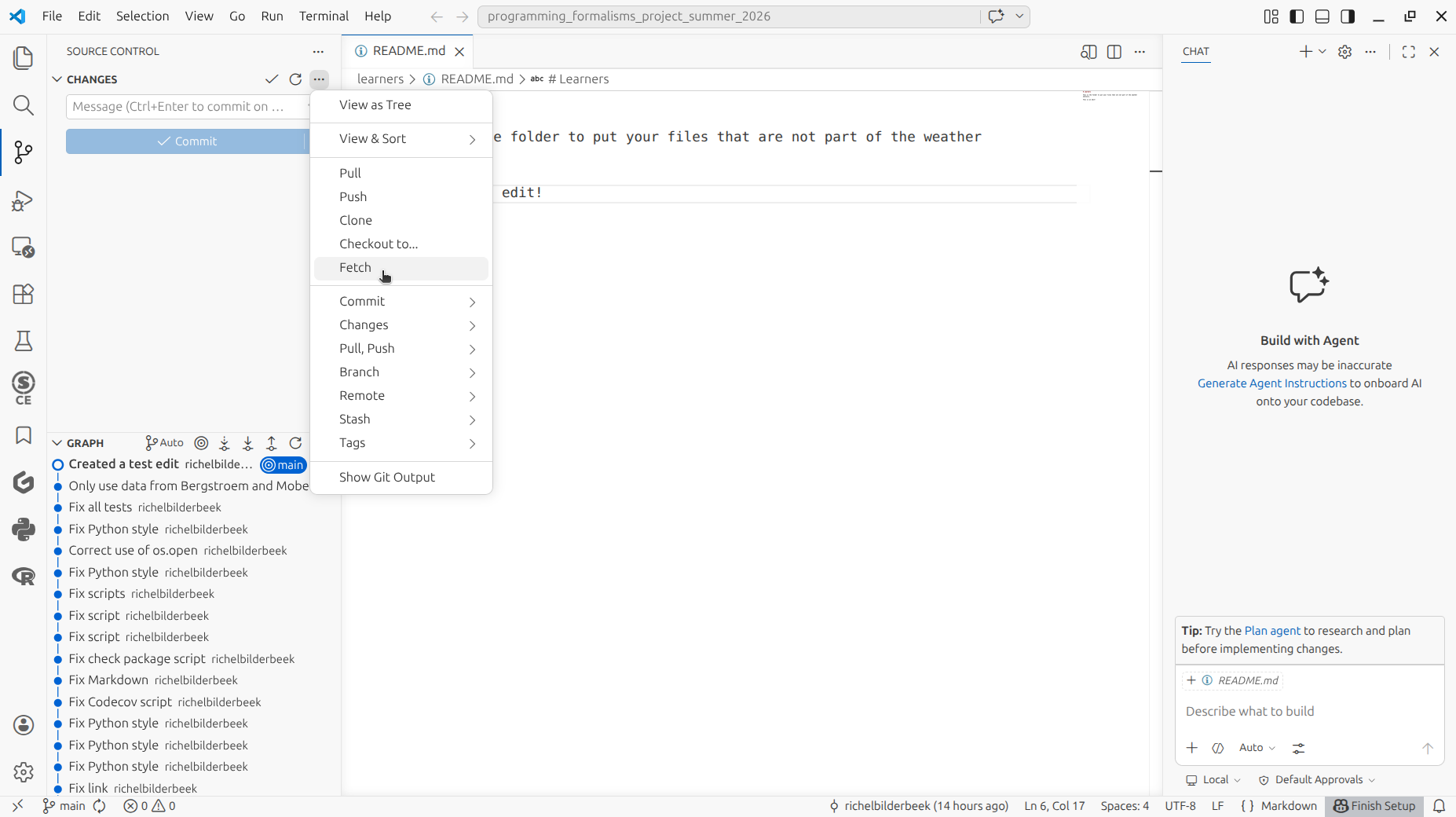

In the 'Source control' menu, click on the kebab (...) button and click 'Fetch'.

Click 'Fetch'

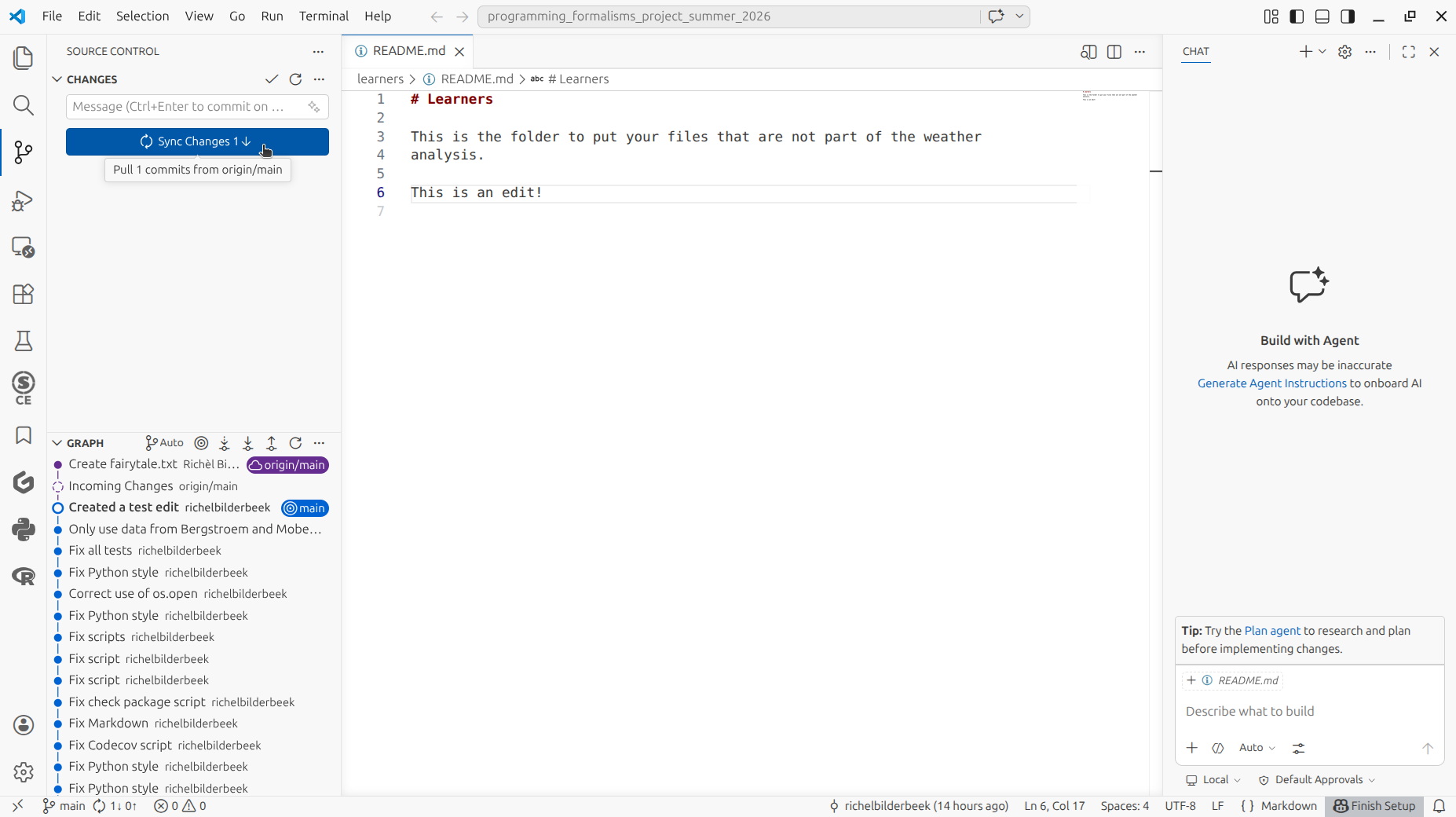

VS Code indicates that there is an incoming change.

How does that look like?

It looks similar to this:

VS Code detects the incoming new file

Sync your local code with the remote repository.

How I do that again?

In the 'Source control' menu, click on the 'Sync' button and click 'Fetch'.

Click 'Sync' to get the new file

Now VS Code has downloaded this new file. Great!

How does that look like?

It looks similar to this:

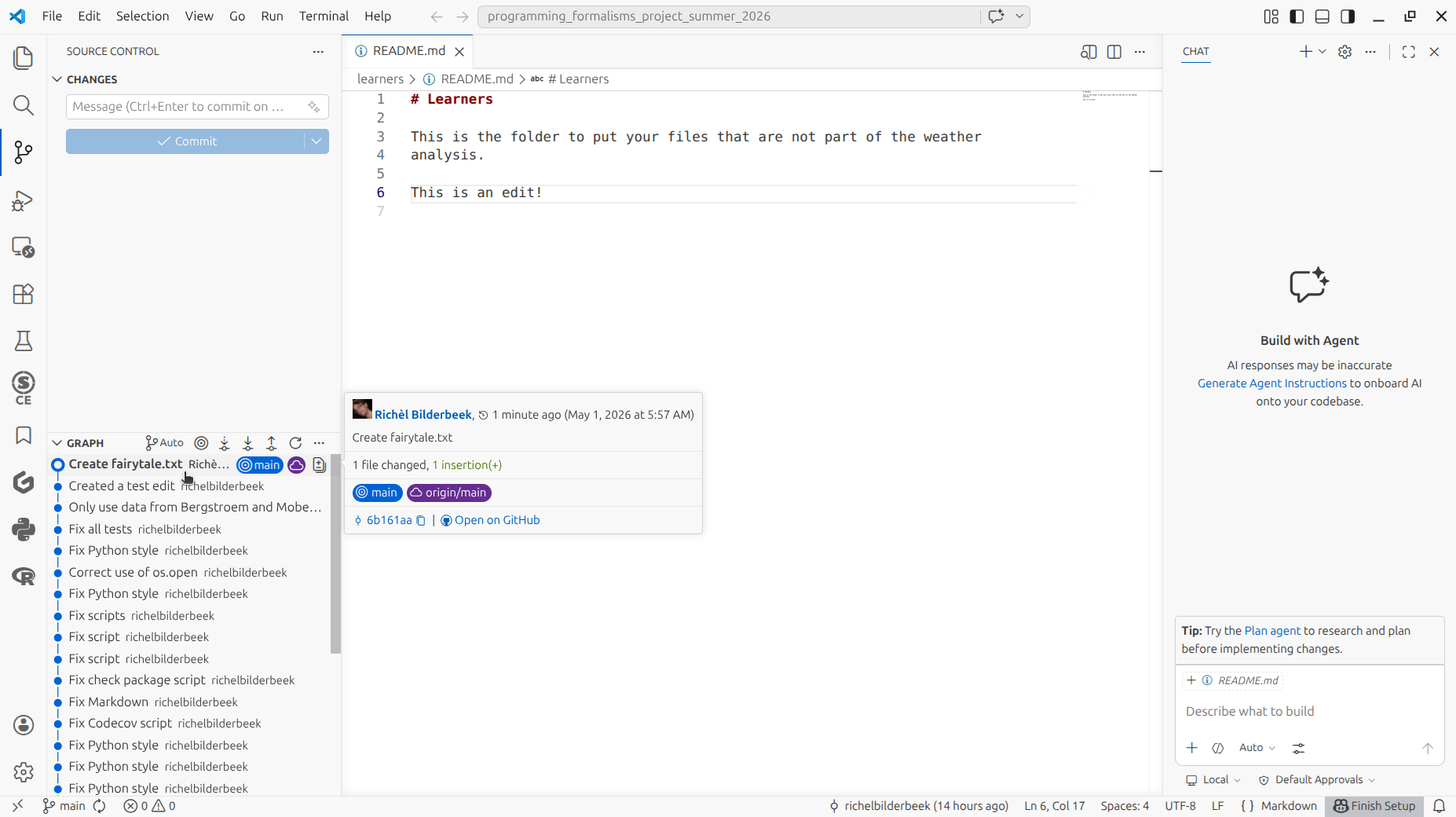

VS Code has downloaded the new file

To start the merge conflict, using the web interface, change that file to:

Once upon a time, there was a prince.

How do I do this again?

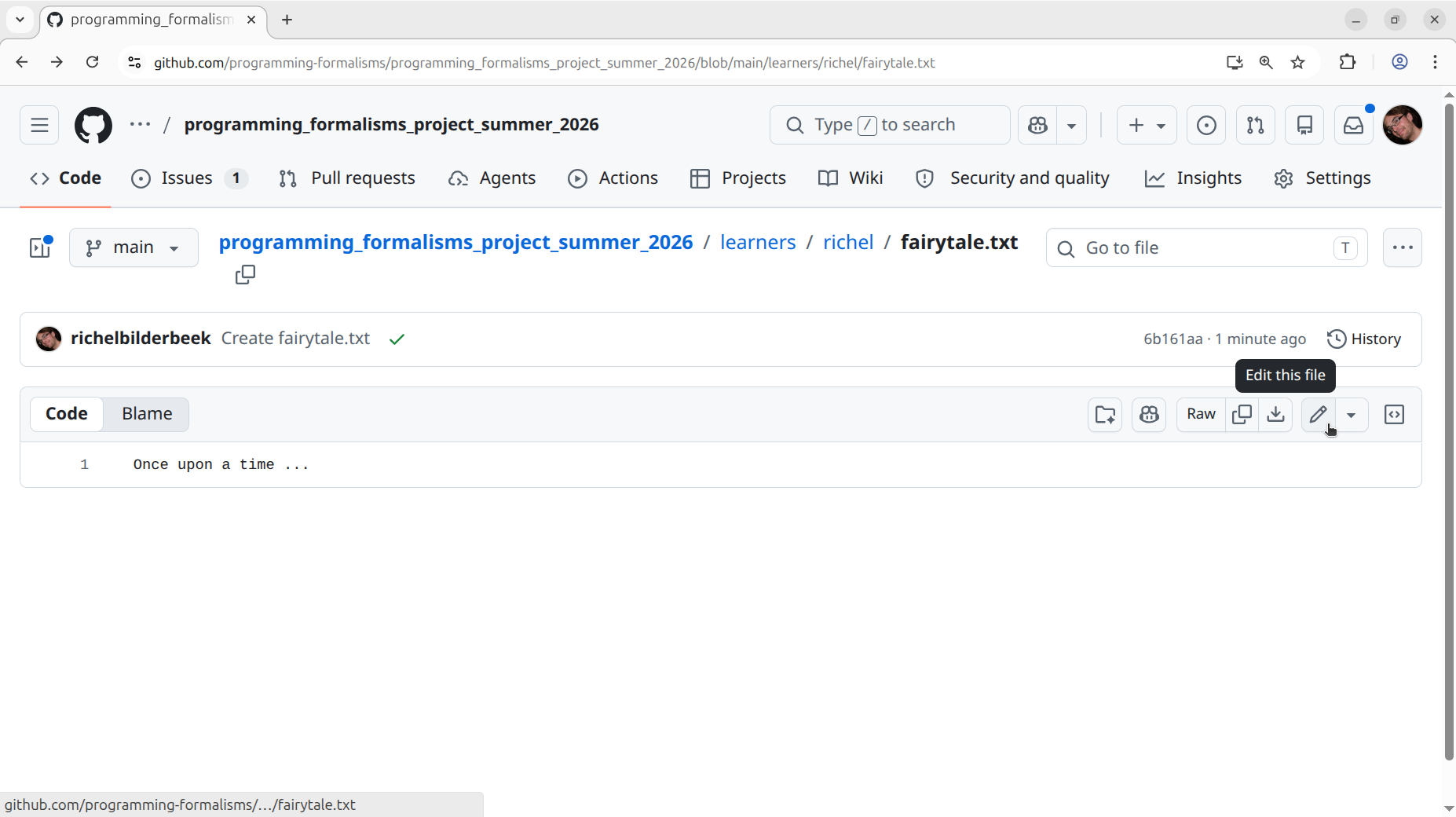

In the web interface, have the file open and click 'Edit'

How does that look like?

It looks similar to this:

In the web interface, click 'Edit'

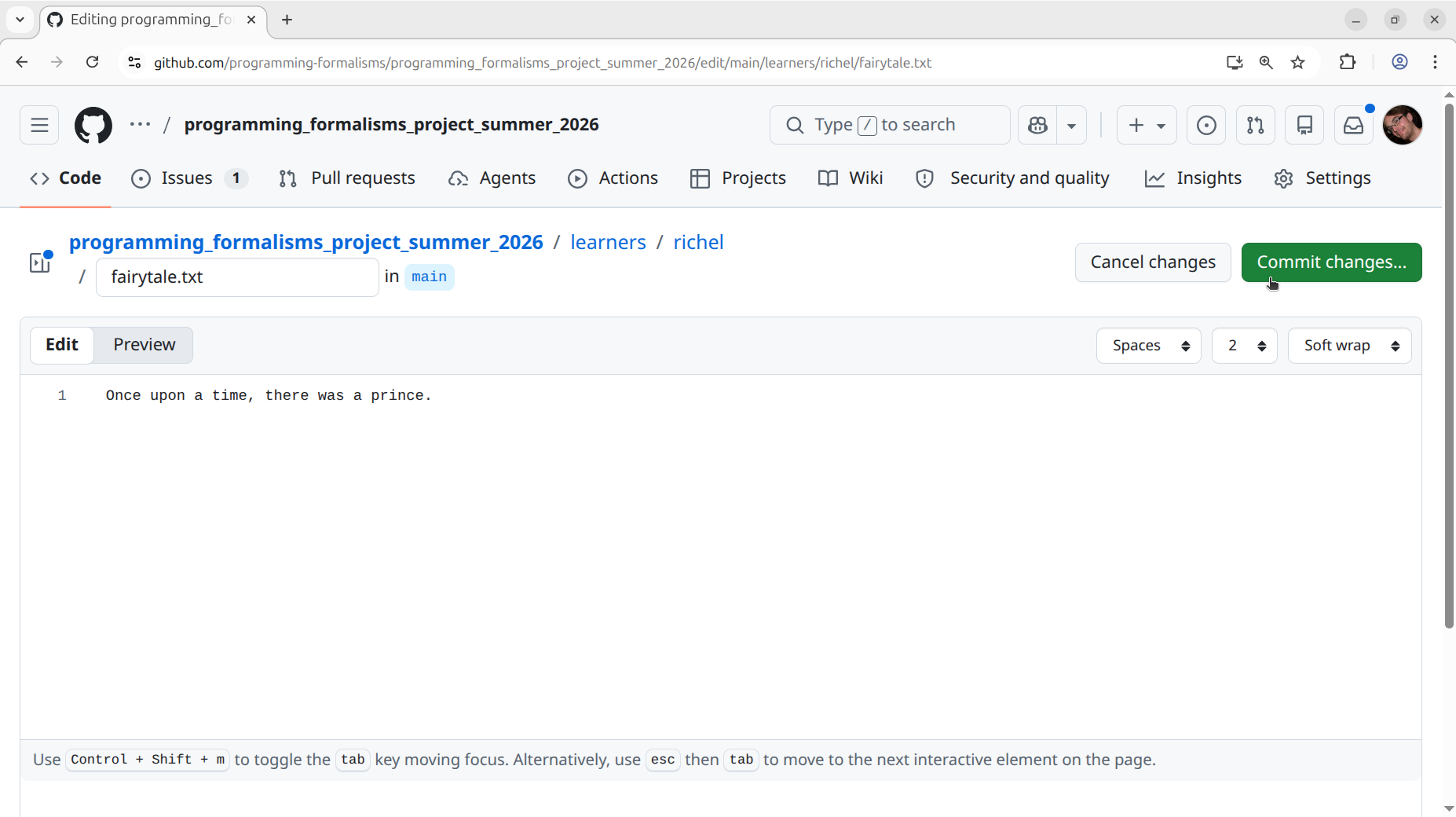

Edit the file and click 'Commit'.

How does that look like?

It looks similar to this:

In the web interface, click 'Commit'

Enter a commit message (the default one is good enough) and click 'Commit changes'

How does that look like?

It looks similar to this:

Click 'Commit changes'

Now the web interface shows the edited file.

How does that look like?

It looks similar to this:

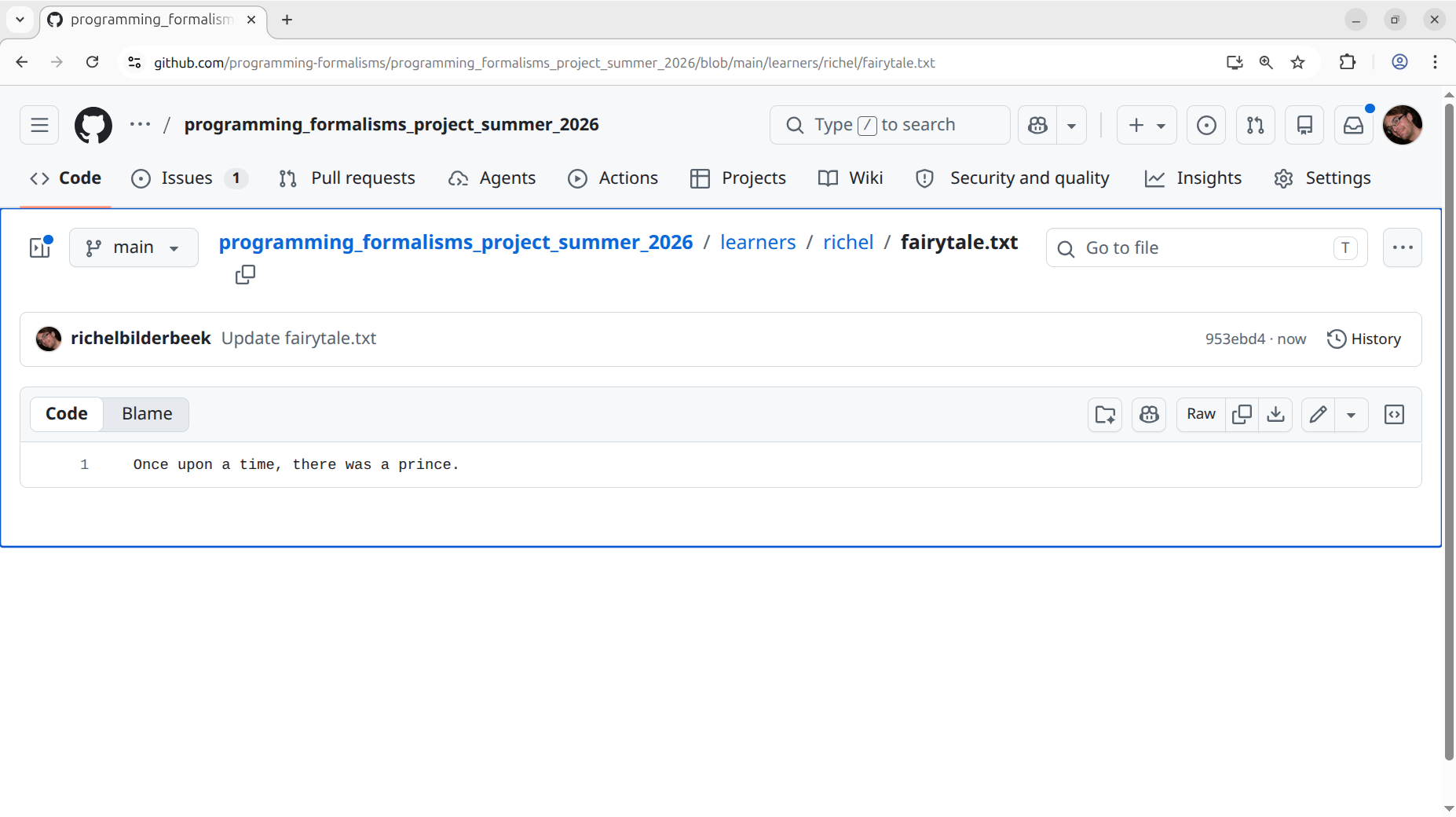

The edited file

Now we create the local commit to conflict with.

In your local code, without fetching nor syncing, change the file to:

Once upon a time ... ... and they lived happily every after.

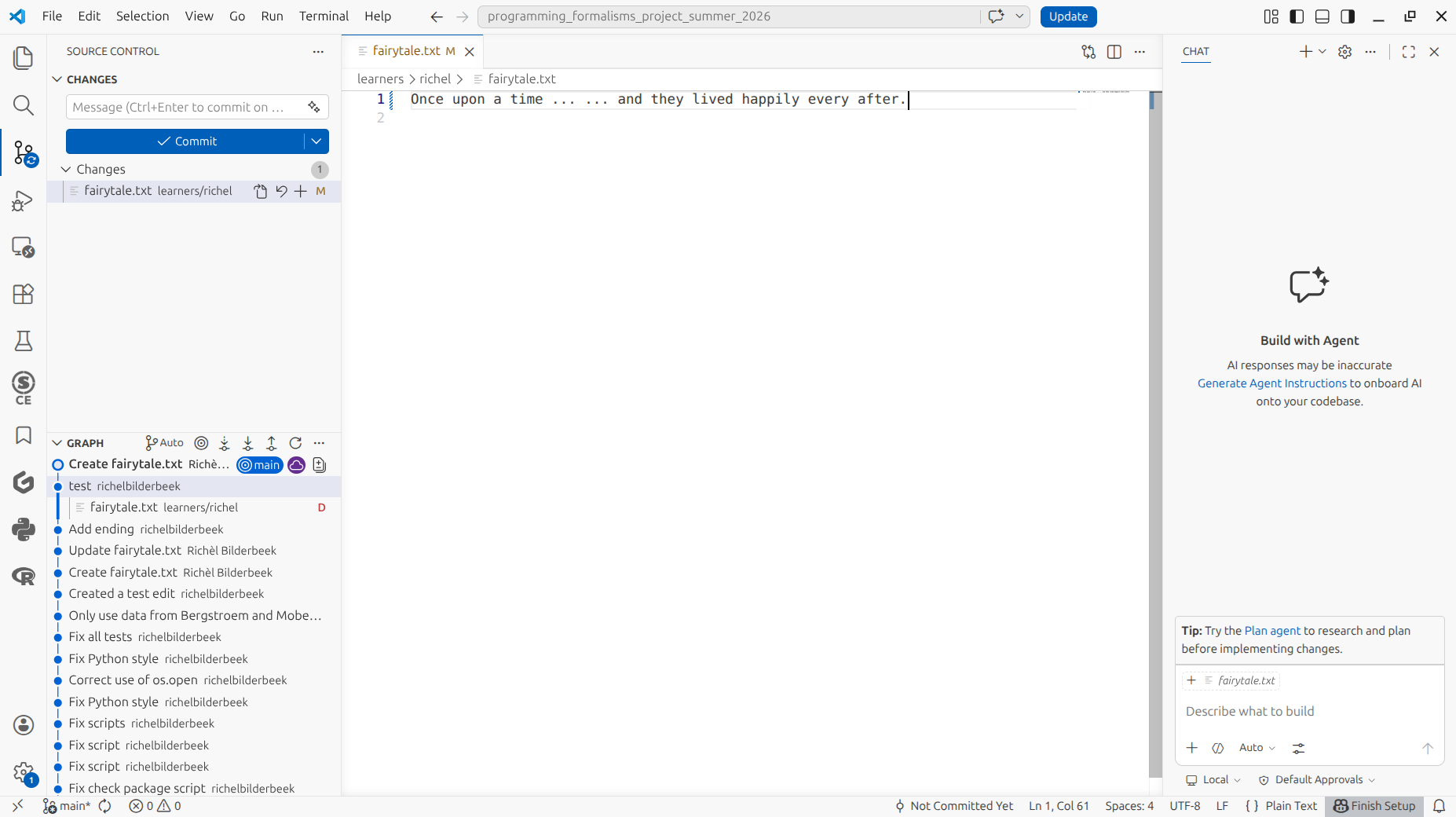

Save the file.

How does that look like?

It looks similar to this:

The file has been saved

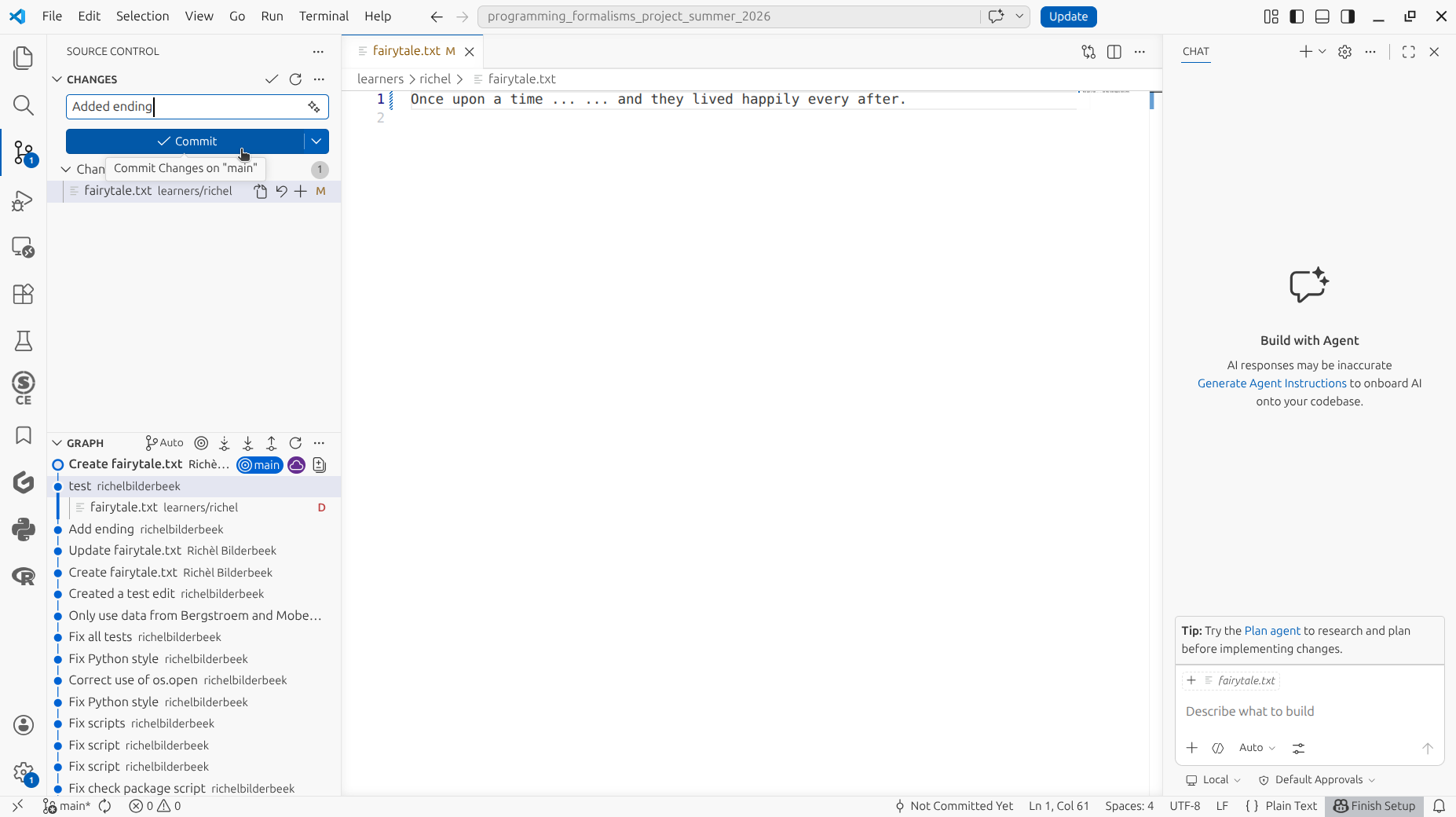

Add a commit message and commit the file.

How does that look like?

It looks similar to this:

Add a commit message and click 'Commit'

Sync the edited file

How do I do that?

Click on 'Sync':

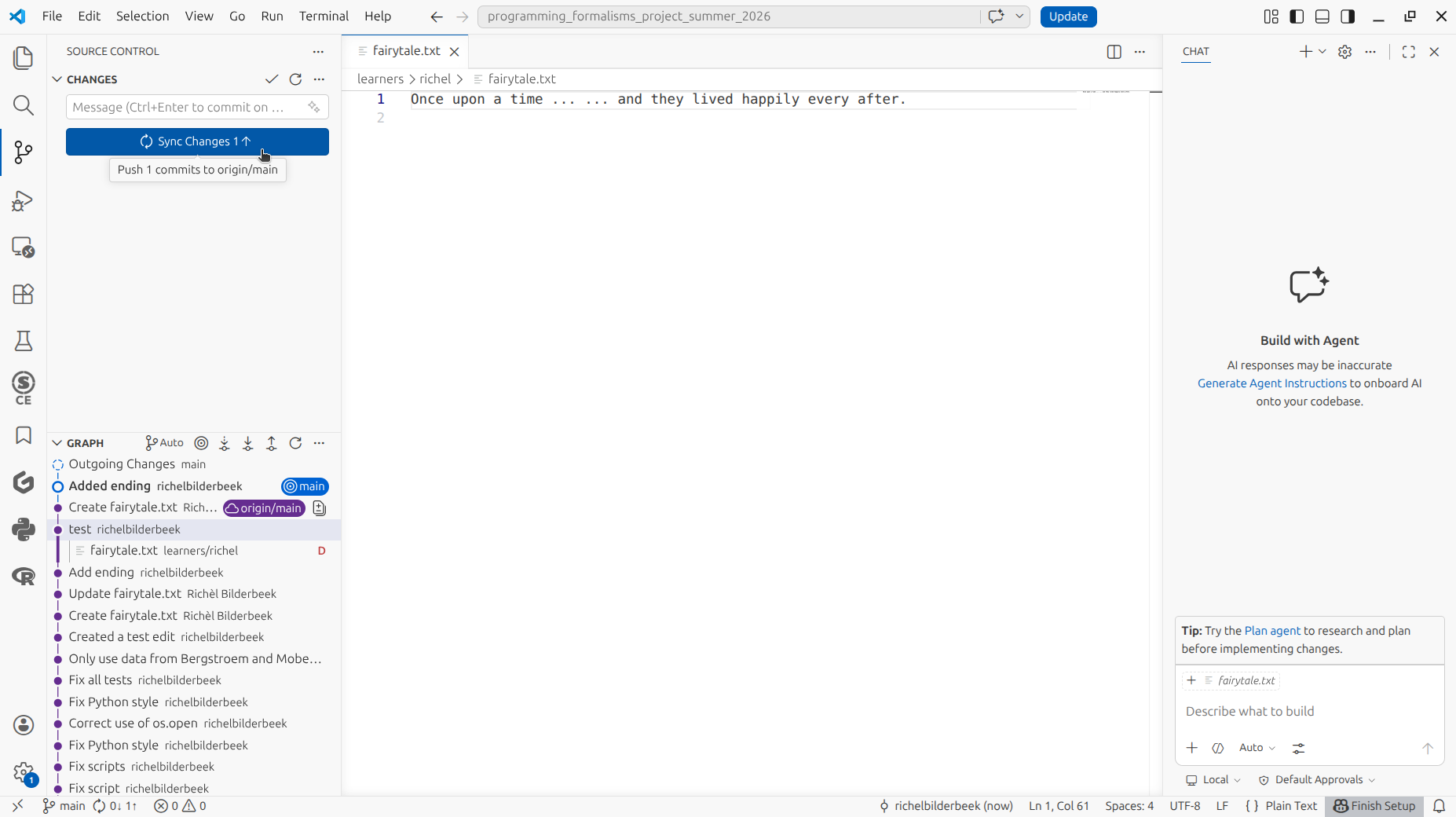

Click on 'Sync'

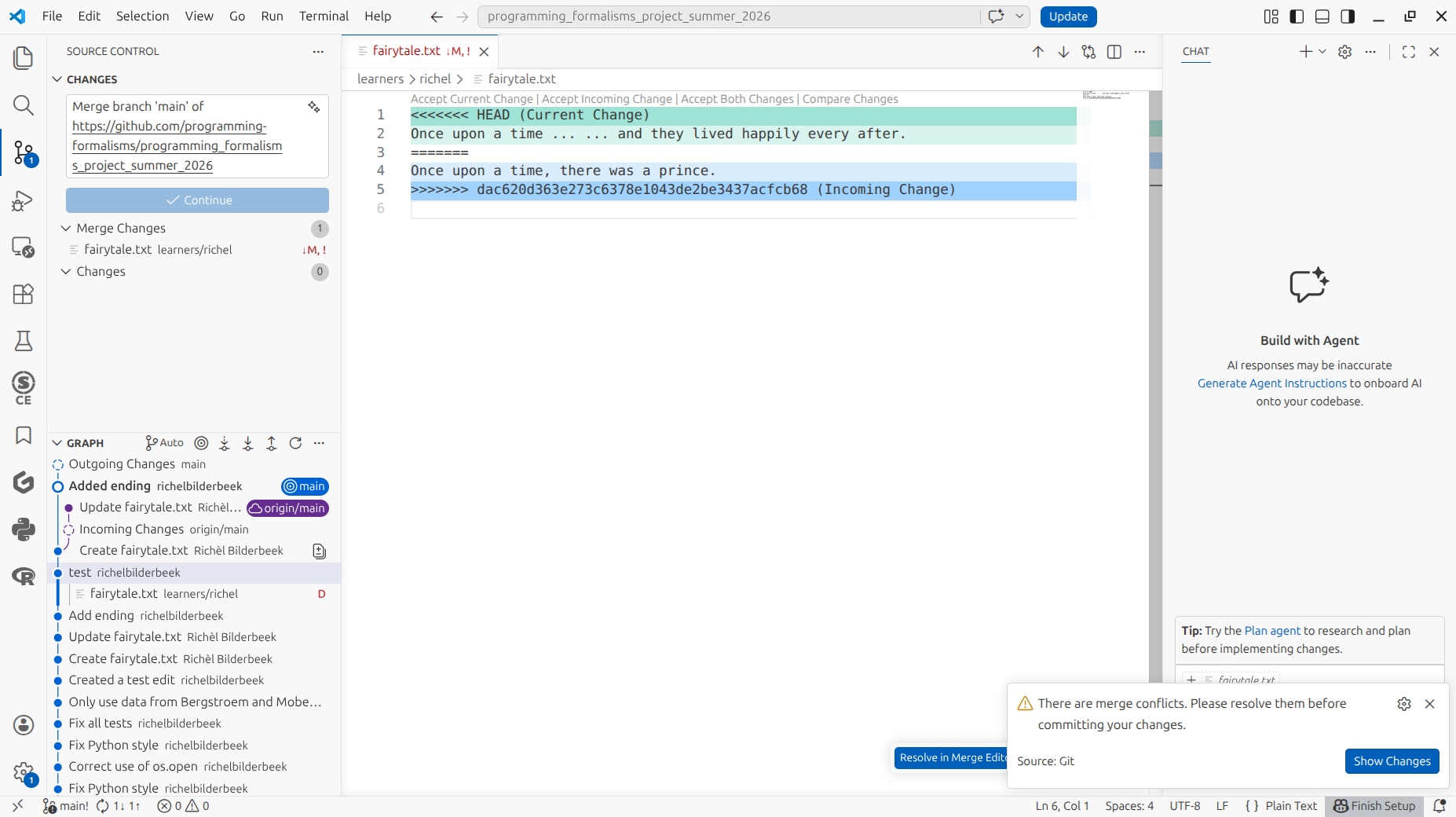

Now you see how a merge conflict looks like!

How does that look like?

It looks similar to this:

VS Code shows a merge conflict

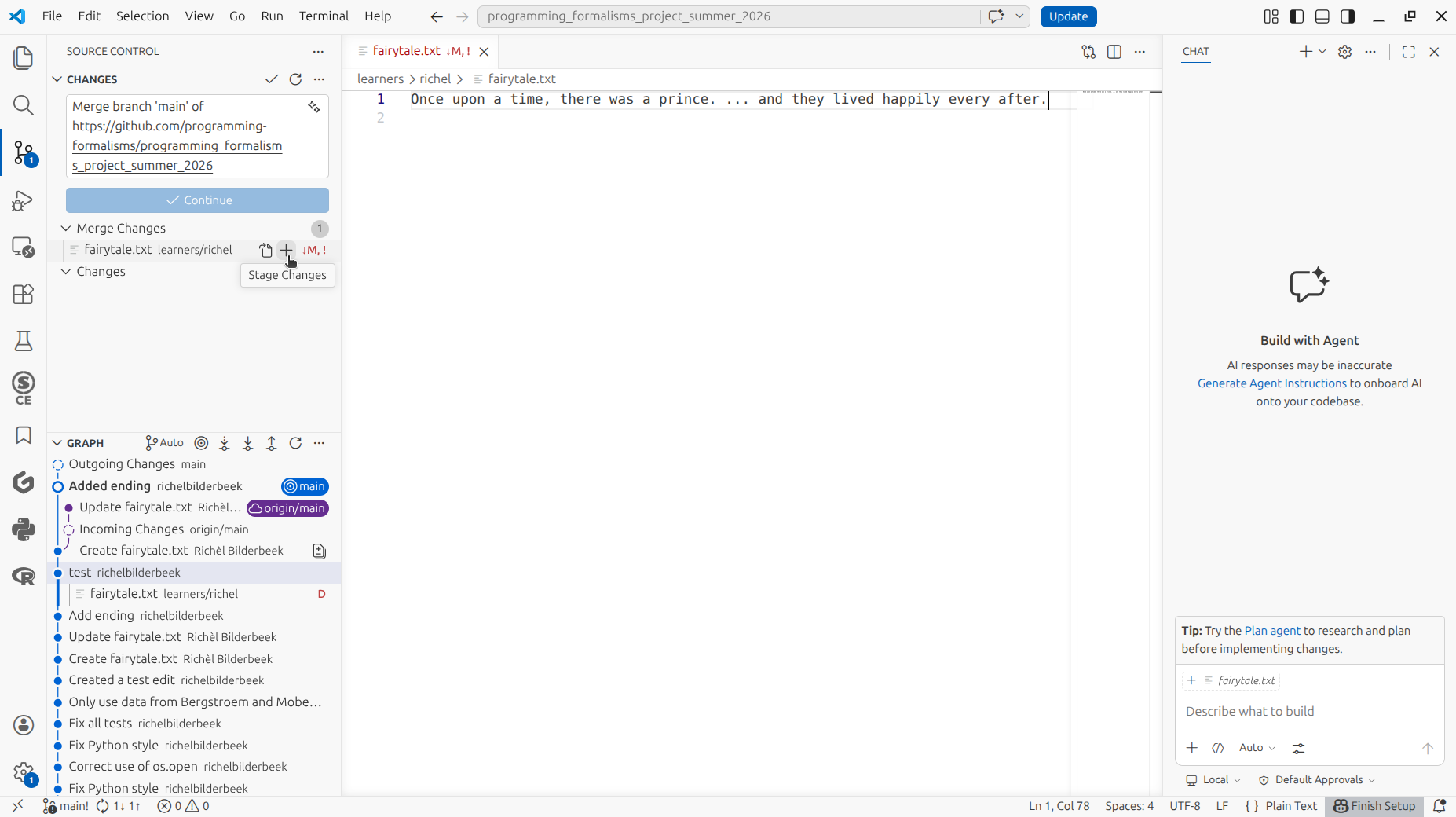

Edit the text in the editor to achieve a merged text (e.g. the text below) and click 'Stage changes'

Once upon a time, there was a prince. ... and they lived happily every after.

How does that look like?

It looks similar to this:

Click 'Stage changes'

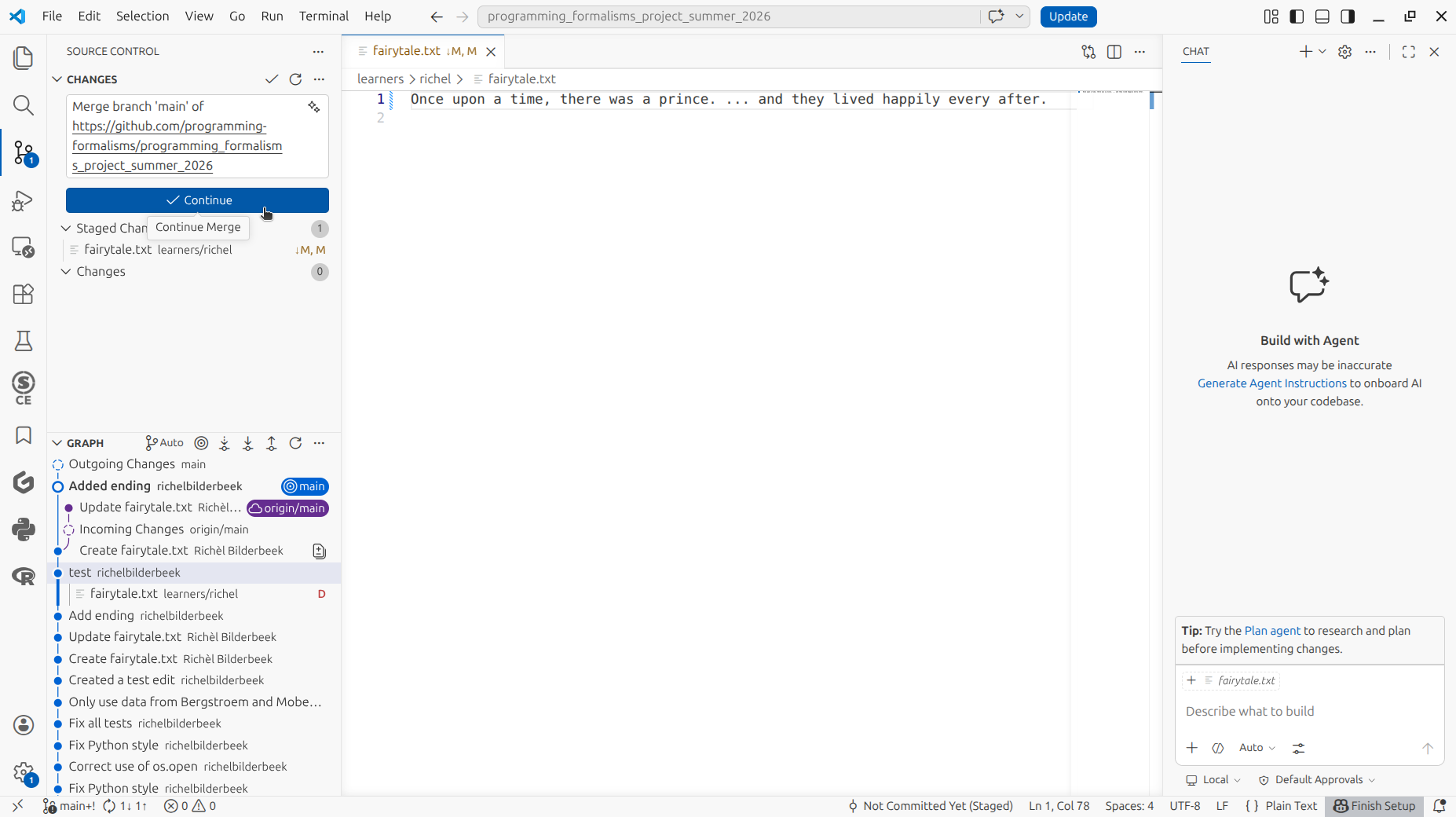

Click 'Continue'.

Where is that?

It is the blue button:

Click 'Continue'

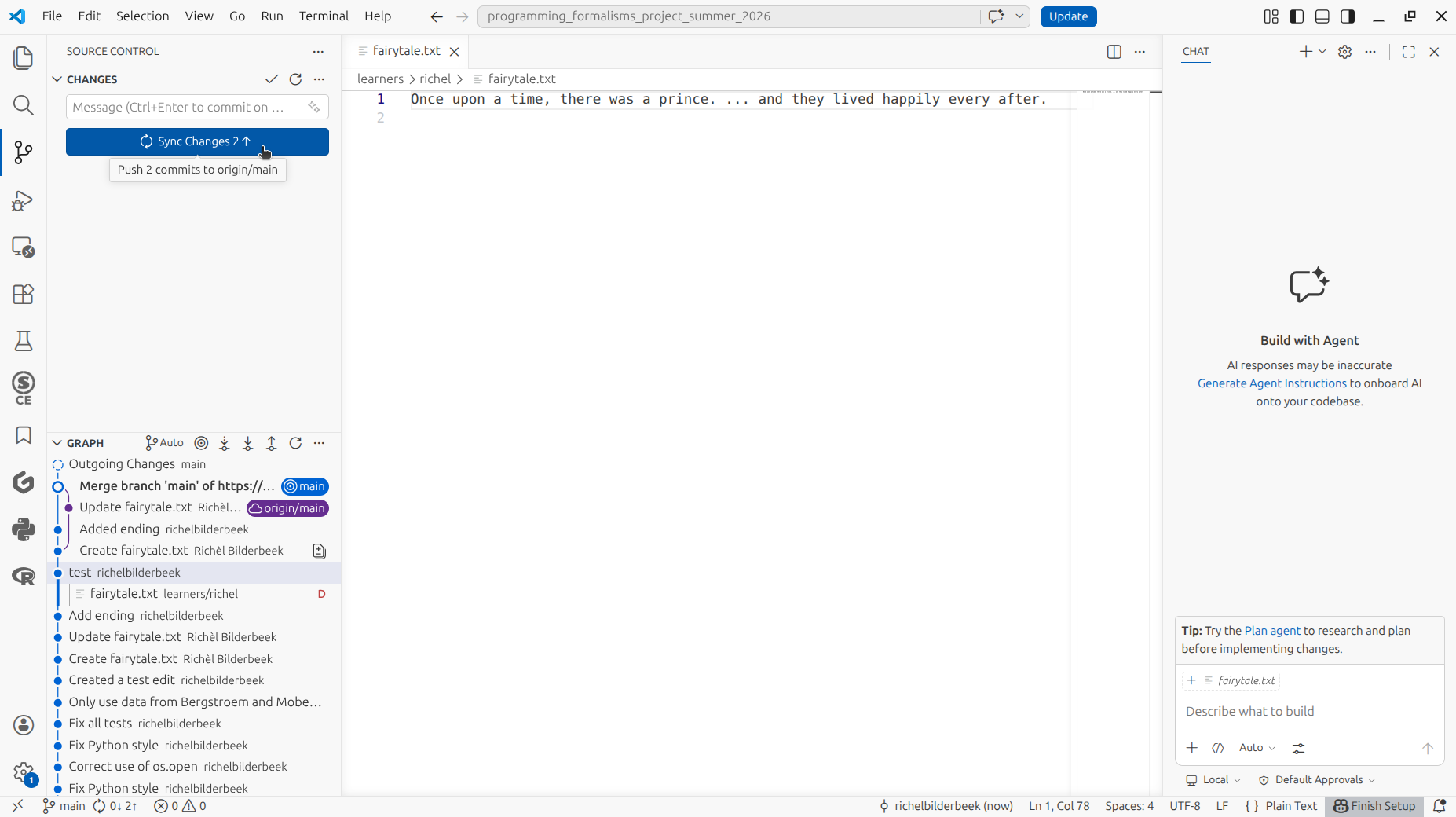

Now that the merge conflict is resolved, click 'Sync'.

Where is that?

It is the blue button:

Click 'Sync'

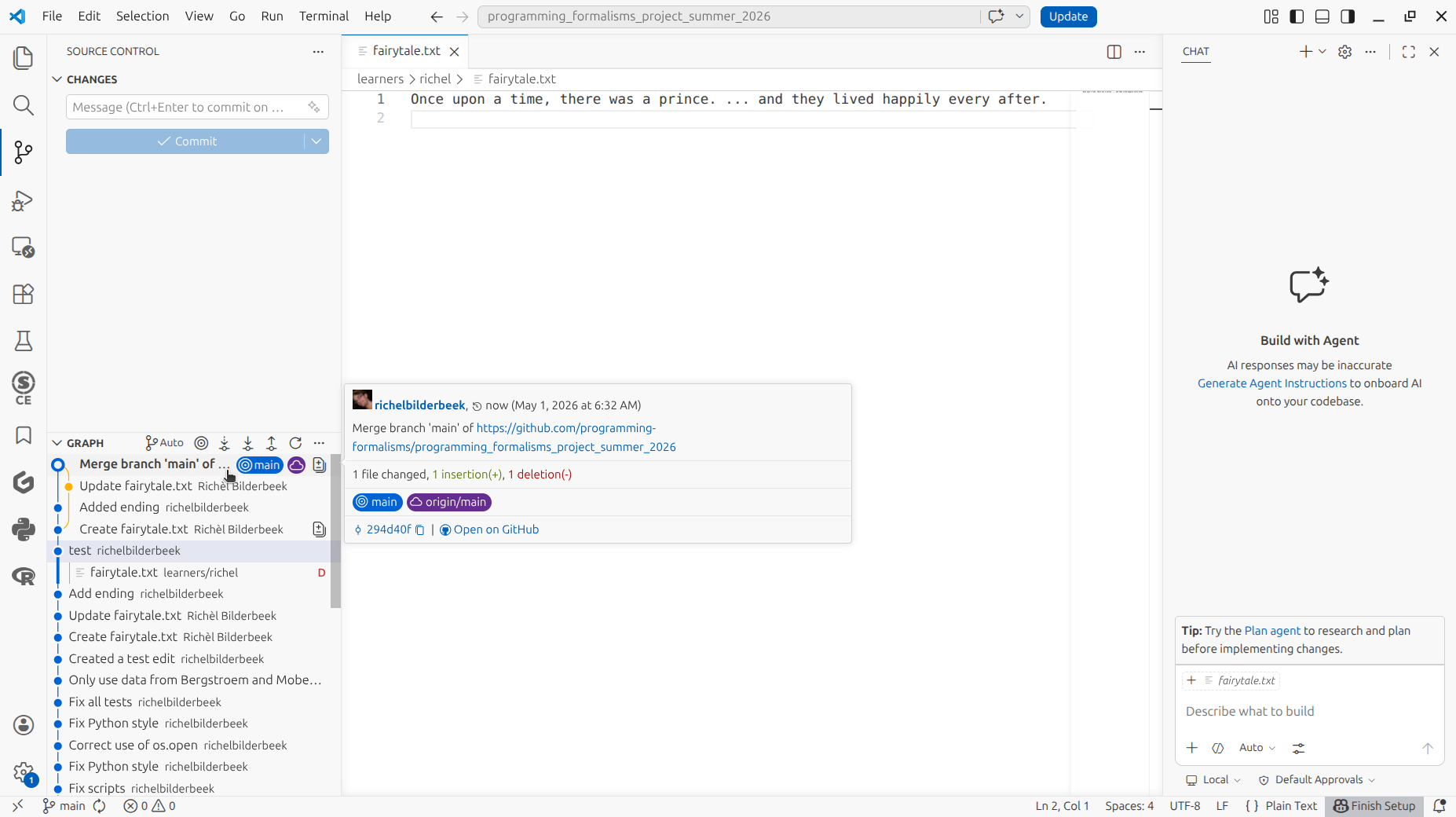

You have now resolved your first merge conflict

How does that look like?

It looks similar to this:

The merge conflict is resolved
