Version control

Learning outcomes

Learners ...

• understand what version control is
• can see the history of a project
• experience a problem with the repository web interface
• understand when to commit

For teachers

Prior:

• What is meant by 'Version control'?
• What is a version control system?
• Could you name a tool or program that is a version control system?
• What is a commit?
• What is a commit hash?
• When should you commit?

What is version control?

Version control is the tracking of the different states that your file are in over time.

For example, when you modify a file, it adds this operation to the history of what happened to your files. As such a modification adds history, this step can also be undone. Hence, when you use version control, you can undo changes.

This also holds true for file deletion: deleting a file adds history. Hence, when you use version control, deleting a file is reversible.

Why is version control important?

It allows you:

• see the history of your files
• undo every mistake

This allows you to work together, as no collaborator can truly destroy your work.

What does the literature say?

• Use version control for all production artifacts [Forsgren et al., 2018]
• Use a code hosting website with version control to track your projects [Perez-Riverol et al., 2016]. The articles recommends GitHub to do so.
• In machine learning research, use versioning for data, the machine learning model, its configuration and its training scripts [Serban et al., 2020]
• Use code versioning [Visser et al., 2016]
• As a best practice in scientific computing, use a version control system [Wilson et al., 2014]
• As a good enough practice in scientific computing, use a version control system [Wilson et al., 2017]
• Always use version control [Thomas and Hunt, 2019]

The file status in version control

From a version control perspective, a file one of these Three Stages [Chacon and Straub, 2014] (chapter 1.3, paragraph 'The Three Stages'):

File status	Description
Modified	File(s) that are different than the online version
Staged	File(s) on the stage
Committed	File(s) that are part of a change

There are two more statuses:

File status	Description
Untracked	File(s) without version control
Unmodified	File(s) that are identical to the online version

Here is the cycle of these file statuses:

graph TB
  untracked
  modified
  staged
  commited
  unmodified

  untracked --> modified --> staged --> commited --> unmodified --> modified

The verbs in version control

These are the verbs used in a version control system:

Verb	Description
status	Get the status
clone	Download
add	Stage one or more files
commit	Give a name to the change(s) made to the staged file(s)
push	Upload
pull	Update
fetch	Check for update of online repository
sync	Update local and online code to be the same

Which verbs are used depends on the program to do version control with. These verbs are used in a cycle.

Here are two cycles of the verbs used in version control:

graph TB
  classDef optional_node stroke-dasharray: 5 5

  subgraph version_control[Our version control system]
    direction TD
    git_clone[Clone] --> git_add[Add] --> git_commit[Commit] --> git_push[Push] --> git_pull[Pull] --> git_add
  end
  subgraph ide[Our integrated development environment]
    direction TD
    ide_clone[Clone] --> ide_add[Add]:::optional_node --> ide_commit[Commit] --> ide_fetch[Fetch] --> ide_sync[Sync] --> ide_add
  end

The dashed node at 'Add' indicates that this verb can be 'removed' by the IDE. Then, the IDE will allways stage all files in a commit for you.

Exercises

Exercise 1: view the learners project history from the web interface

The learners project has a history. Search the web interface on how to view it. Tip: look for the word 'Commits'. View it using the web interface.

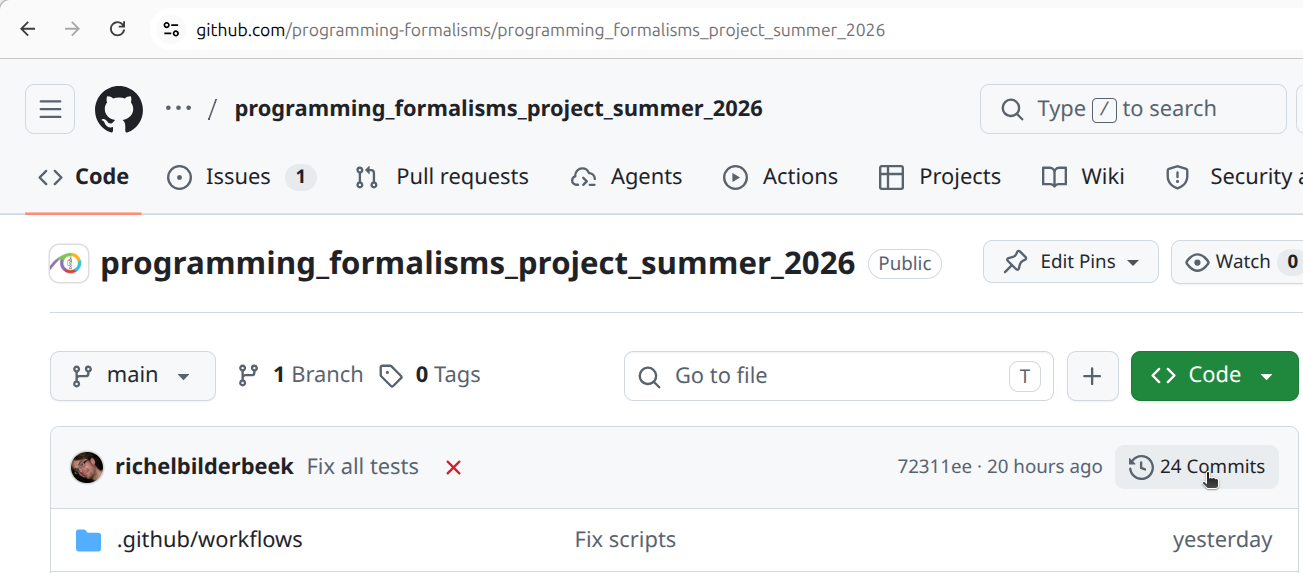

Where is it?

It is at the top-right side:

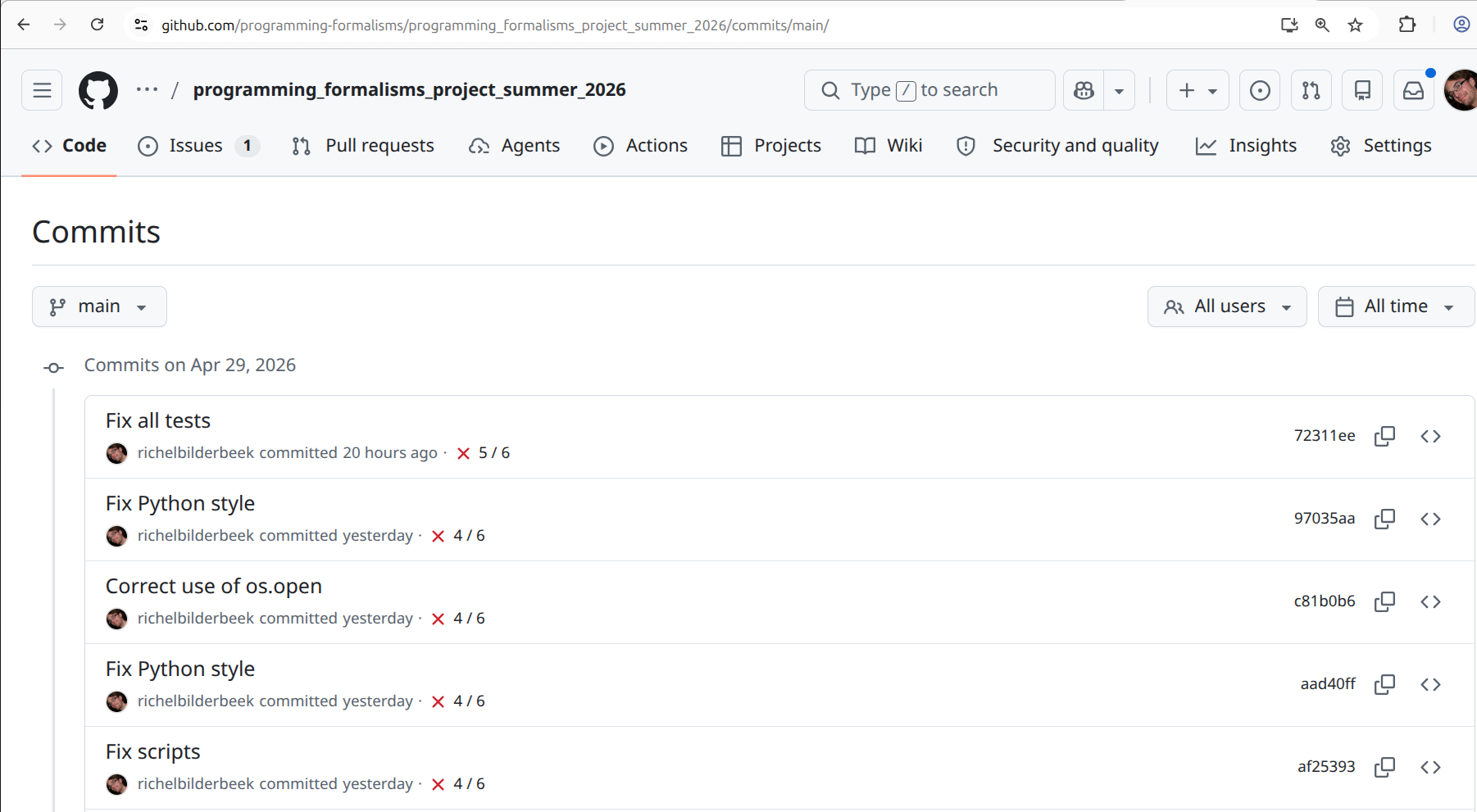

How does it look like?

It will look similar to this:

Now we have seen a commit history, how would you define what a commit is?

Answer

The answer is similar to this definition:

A commit is one or more changes to one or more files that has a short message that describes the change(s).

Judge the commit messages. What would be your rule for a good commit message?

Answer

This is not an easy answer, as the academic literature is divided.

However, a common theme is that a good commit messages describes:

• What: the summary of the code change
• Why: the motivation/reason behind it

Then recommended is:

• A good commit message should have both [Li and Ahmed, 2023]
• A good commit message can be either [Tian et al, 2022]

Would I (Richel) come up with a rule, it would be: a commit message should match what you would say to a human to help him/her understand the reason of the change in a place where communication is hard (e.g. a place with loud music, so that you need to yell, while having a sore throat)

Exercise 2: change a file using the GitHub web interface

Change a file you created in the learners folder (if there is none, create one).

View the history of the file.

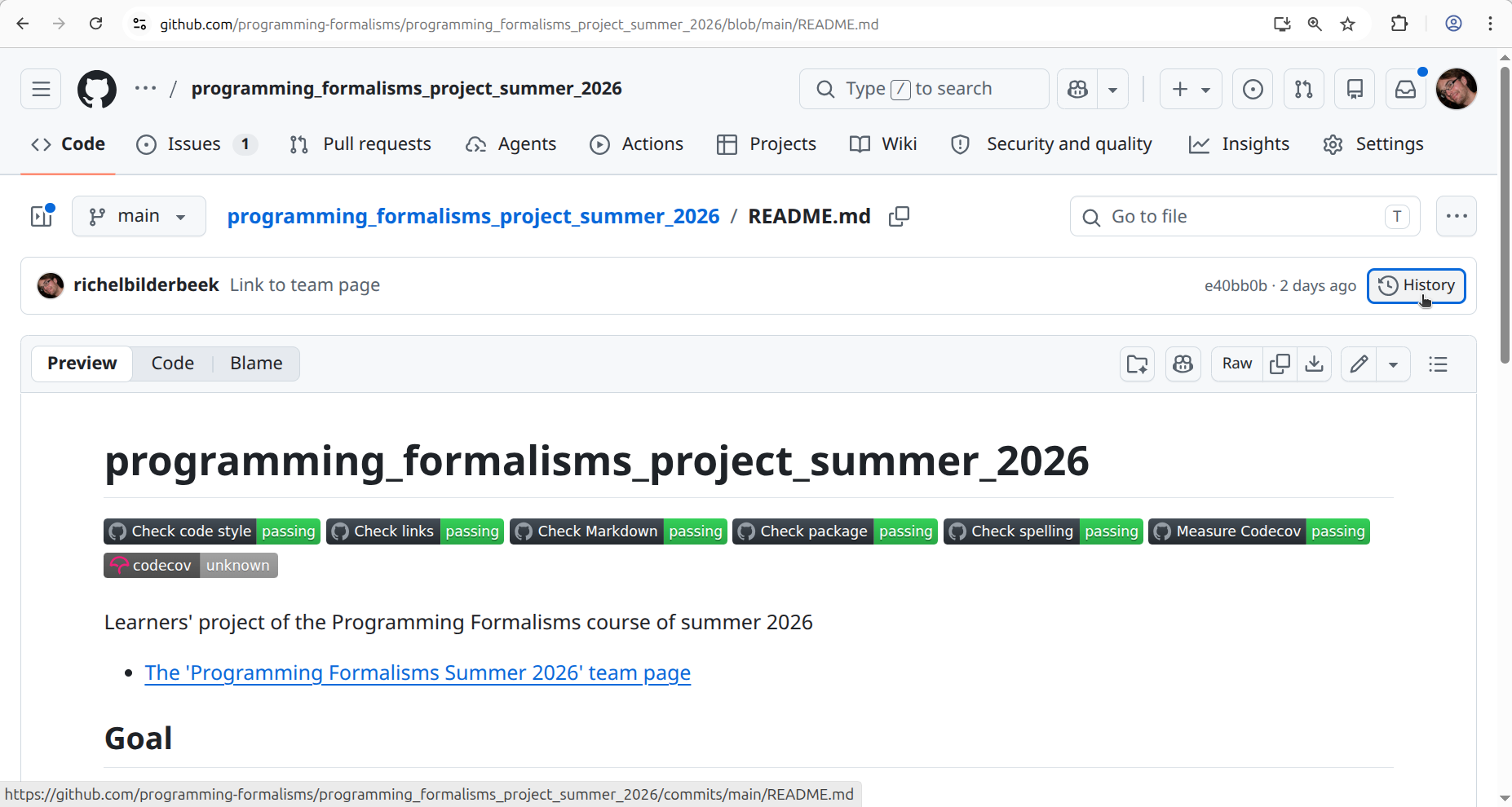

Where do I need to click?

Click at the top-right, on the 'History' button:

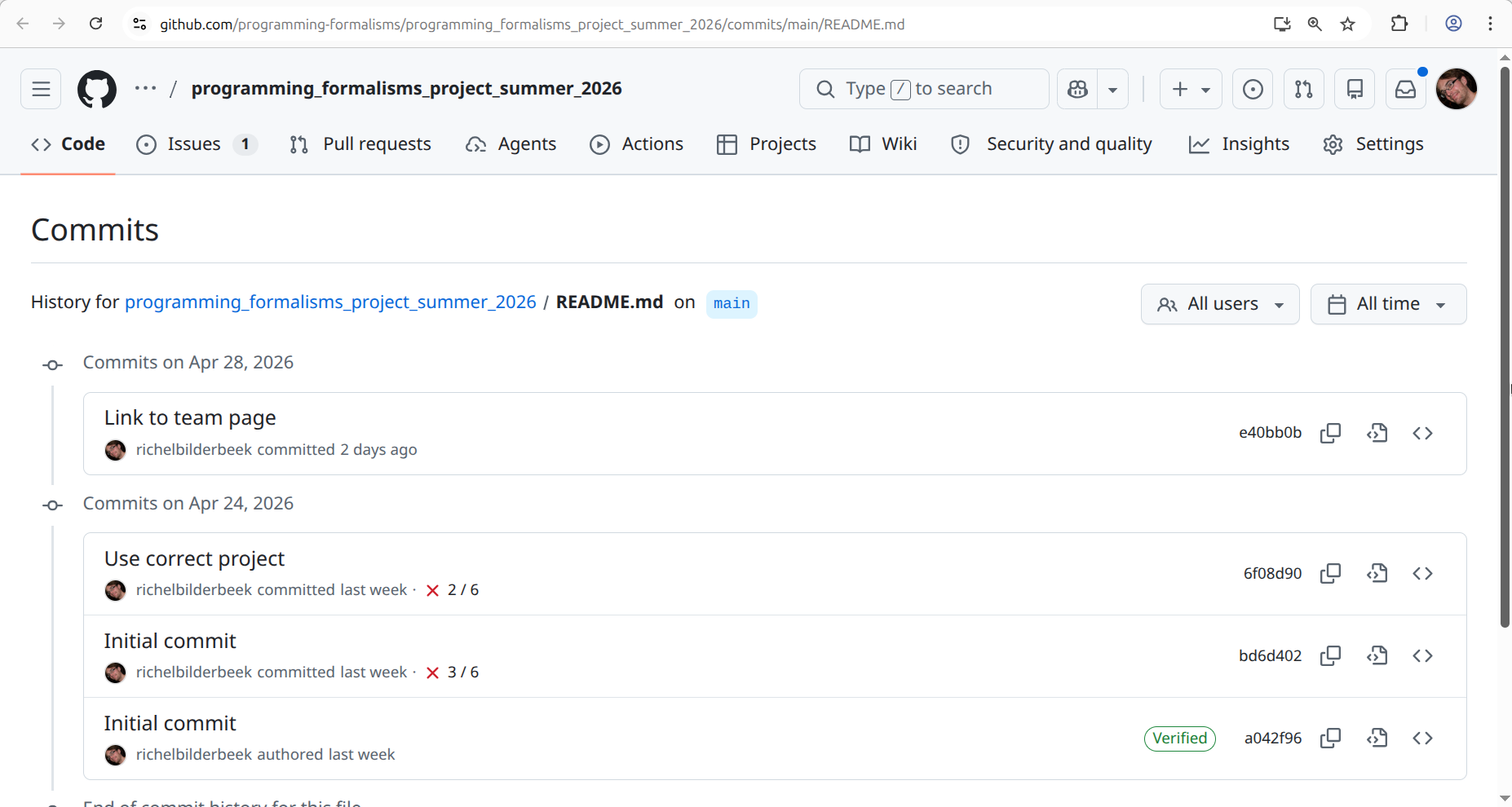

How does it look like?

You will see something similar to this:

Assume you want to undo/revert the last commit. To do so (without going into detail) you will need the commit hash, i.e. the unique ID for your commit. Find and click on the latest commit hash of your file

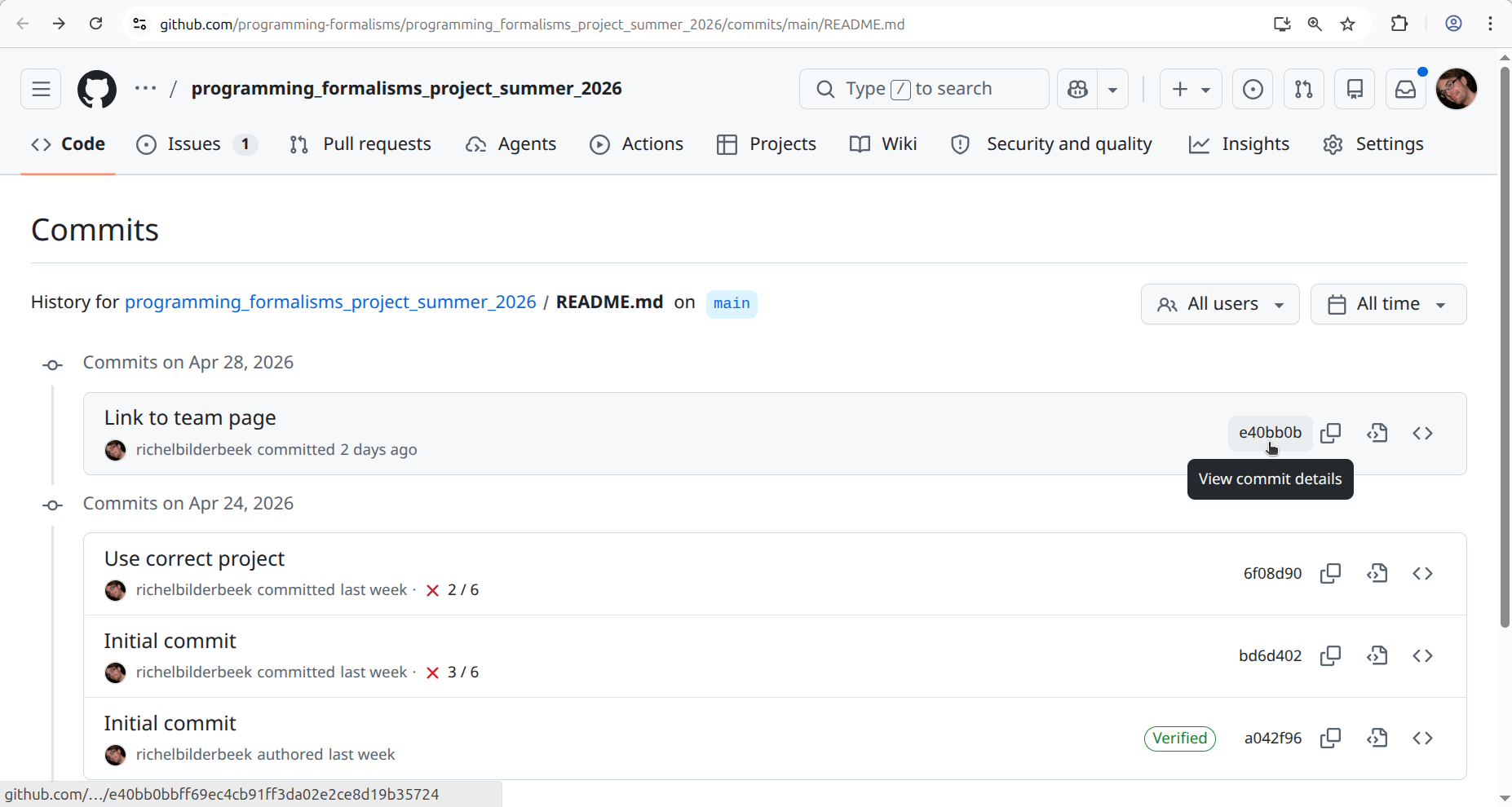

Where do I need to click?

Click at the top-right, at the hexadecimal number.

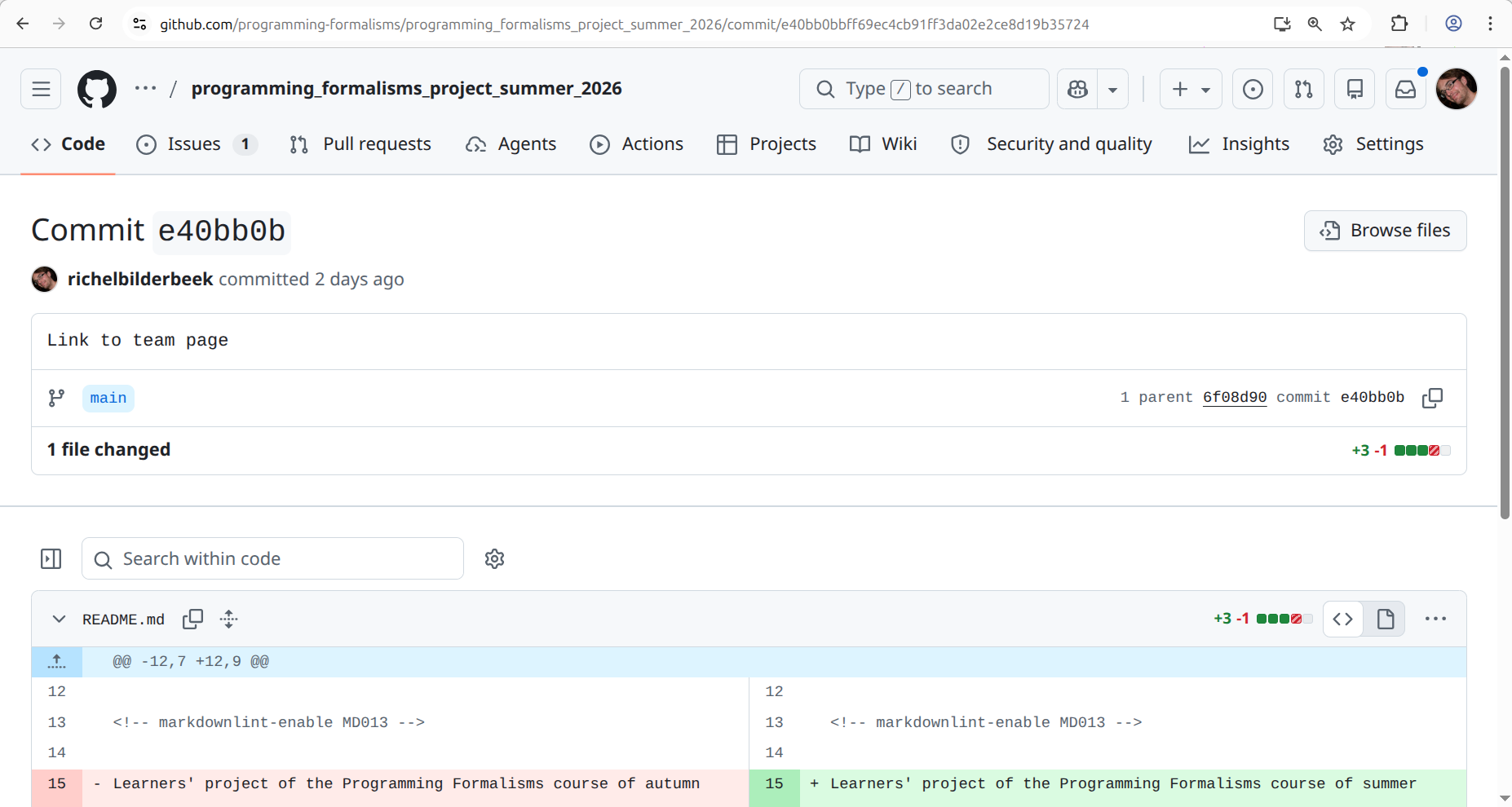

What do you see?

Answer

You see the commit details.

In which scenario is it useful to see the commit details?

Answer

When you want to know what were the exact changes of a certain commit.

Exercise 3: change a file twice at the same time

Imagine two people editing the same file using the web interface.

The content of the file, before editing, was:

Once upon a time ...

The first person intends to commit this text:

Once upon a time, there was a prince.

The second person intends to commit this text:

Once upon a time ... ... and they lived happily every after.

The first person then commits. Then the second person commits.

What would you say should happen?

Answer

My feeling is that the changes should be merged to:

Once upon a time, there was a prince. ... and they lived happily ever after.

Test this. What happens?

Answer

The final text will be the text submitted by the second person.

Why is this a problem?

Answer

Because it completely ignored the work of the first person.

This problem is solved better when using an integrated development environment or when using the version control system locally.

Let's say we accept that this problem exists. How do we reduce the problem of this?

Answer

By committing often.

The manta goes:

Commit early, commit often

Or 'Take small steps - always' [Thomas and Hunt, 2019] (tip 42).

References

• [Chacon and Straub, 2014] Chacon, Scott, and Ben Straub. Pro git. Springer Nature, 2014. Book homepage.

• [Forsgren et al., 2018] Forsgren, Nicole, Jez Humble, and Gene Kim. Accelerate: The science of lean software and devops: Building and scaling high performing technology organizations. IT Revolution, 2018.

• [Perez-Riverol et al., 2016] Perez-Riverol, Yasset, et al. "Ten simple rules for taking advantage of Git and GitHub." PLoS computational biology 12.7 (2016): e1004947. Paper homepage

• [Serban et al., 2020] Serban, Alex, et al. "Adoption and effects of software engineering best practices in machine learning." Proceedings of the 14th ACM/IEEE International Symposium on Empirical Software Engineering and Measurement (ESEM). 2020. Paper homepage

• [Thomas and Hunt, 2019] Thomas, David, and Andrew Hunt. The Pragmatic Programmer: your journey to mastery. Addison-Wesley Professional, 2019.

• [Visser et al., 2016] Visser, Joost, et al. Building software teams: Ten best practices for effective software development. " O'Reilly Media, Inc.", 2016.

• [Wilson et al., 2014] Wilson, Greg, et al. "Best practices for scientific computing." PLoS biology 12.1 (2014): e1001745. Paper homepage

• [Wilson et al., 2017] Wilson, Greg, et al. "Good enough practices in scientific computing." PLoS computational biology 13.6 (2017): e1005510. Paper homepage
