Git and get started with a project

Learning outcomes of 'Get started with Git/GitHub'

Learners

  • are connected to the course repo
  • can commit
  • can write useful commit messages
  • know how a local vs remote repo work
  • can push/pull
  • can manage conflicts
  • are prepared for coming documentation
Instructor notes
  • Teacher gives introduction with interaction 20 m
  • Studens work in groups with at least one more used to Git in each

Prerequisites are:

  • Git account
  • GitHub account
  • Git set up on computer

Not needed

  • Use of git before

What is Git, and what is a Git repository?

  • Git is a version control system: can record/save snapshots and track the content of a folder as it changes over time.
  • Every time we commit a snapshot, Git records a snapshot of the entire project, saves it, and assigns it a version.
  • These snapshots are kept inside a sub-folder called .git.
  • If we remove .git, we remove the repository and history (but keep the working directory!).
  • .git uses relative paths - you can move the whole thing somewhere else and it will still work
  • Git doesn't do anything unless you ask it to (it does not record anything automatically).
  • Multiple interfaces to Git exist (command line, graphical interfaces, web interfaces).

Typical workflow for the course project

  • students make development in local git and push to github?
  • in principle centralized workflow

This is used when you are a collaborator

Centralized layout

Centralized layout

  • Red is the repository on GitHub.

  • Blue is where all contributors work on their own computers.

  • Centralized workflow is often used for remote collaborative work.

  • origin refers to where you cloned from (but you can relocate it).
  • origin/mybranch is a read-only pointer to branch mybranch on origin.
  • These read-only pointers only move when you git fetch/git pull or git push.

Other workflows?

Before we continue we need to configure Git

Attention

  • Send your emails in the chat so that we can add you as "Collaborators" in the project!
  • Start VS Code
Did you set up git and GitHub?
  • Git and GitHub should be configured prior to the course
    • Note that Mac users may need to run a command from the terminal to be able to run git: sudo xcodebuild -license accept
    • Configure Git
      • like: git config --global user.name "Mona Lisa"
      • like: git config --global user.email "mona_lisa@gmail.com"
  • We hope also that you have already done these steps HERE

This lesson

  • Get overview of the course project
  • Get local clone of the course project
  • First contribution locally
  • Upload changes
  • Conflicts and resolutions
  • A bit about project organization
  • A bit about documentation

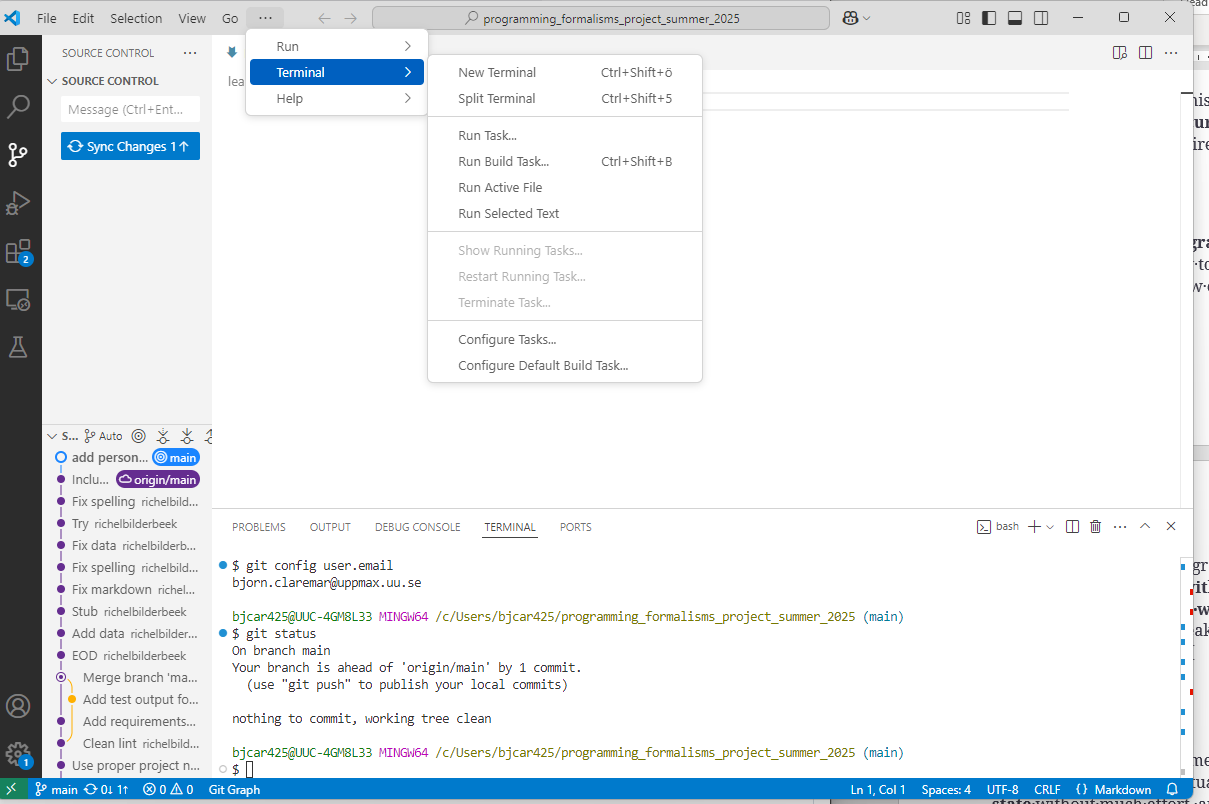

VS Code terminal

  • We will work as much as possible (almost) in the VS Code graphical interface for Git

  • However, some things are better (or only) handled from a terminal/command line.

  • You find the Git Bash terminal From the menu (different on mac and windows)

VS Code terminal

Principles with Git

Concepts in Git

  • repository: The project, contains all data and history (commits, branches, tags).
    • Local: you computer or a server where you have full control
    • Remote: server, e.g. GitHub
  • Working locally
    • add: Stage you files (collect what to be added to the git record — a kind of middle step)
    • commit: Snapshot of the project, gets a unique identifier (e.g. c7f0e8bfc718be04525847fc7ac237f470add76e).
  • Working on Github
    • Since you can only add changes in one file at a time, there is no middle step git add
    • ''Commit`` button
  • cloning: Copying the whole repository to your laptop - the first time. It is not necessary to download each file one by one.
    • git clone copies everything: all commits and all branches.
  • We synchronize commits between local and remote with
  • git fetch/pull and git push.

Clone

  • Clone to your computer
    • Buttons in VS code or a terminal, using git clone

(May be needed if time goes by:) Sync from GitHub

  • As others are working on the same repo, there may be uploaded changes from fast collaborators.
  • Do a git pull to get these changes locally as well.
  • Do this before you start with new changes. Good practice!
    • This reduces errors or double work!
Difference between git pull and git fetch?

We may cover this later. Not important now!

  • Git pull copies changes from a remote repository directly into your working directory, while git fetch does not.
  • The git fetch command only copies changes into your local Git repo.
  • The git pull command does both.
  • You Should Use git fetch When…
    • You want to check if there are new updates on the remote repository but don't want to apply them immediately.
    • You are working on new features and you want to avoid potential merge conflicts.

Make changes locally

Tracked files can be in three states.

  • Modified: You changed the file.
  • Staged: You changed the file and prepared it to be snapshotted.

  • Committed: You took a snapshot of the entire project, and the file was part of it.

  • On GitHub:

    • Commit every file individually

Steps add changes to the git history

  • make changes locally
  • add and commit to the git version control
    • your changes become part of the git history
  • git push
    • your changes are synced to GitHub
  • git pull
    • changes on GitHub are synced to you existinglocal git
    • good procedure to do this step before you start changes

Update the file(-s)

  • Save your changes as usual on your computer (e.g. in VS code)

Stage files (in git)

VS CODE

  • Activate the source control environment from left menu!
  • "+" button
From bash terminal
  • All changed files
git add .    # < -- "." means all files
  • Chosen files
git add <file1> <file2>    # one or several files

Commit

  • Every time we commit a snapshot, Git records a snapshot of the entire project, saves it, and assigns it a version (Hash tag).
  • BUT only what we have added to the "staging" area!

VS CODE

  • Activate the source control environment from left menu!
  • "Commit" button and "Commit message" text
From bash terminal
  • git commit -m "<commit message>"

Alternative commits

  • You can also omit the -m option and a text editor will open.
  • The first line will be your commit message.
  • You can add other lines to add some more detailed info about your changes.

Writing useful commit messages

  • Each commit should stand on its own.
  • Keep your commits small and independent.
  • Write informative commit messages.

  • Each commit message should answer a question.

    • Why was the commit created?
    • What problem does it solve?

  • What Not to Do

    • solve multiple problems in one commit
    • combining commits that have nothing in common.
    • Git as a backup system: commit their changes at the end of each day
Example
Best Bad Worst
[login] Fix typo in DB call Fixed typo in DB call Fix typo
refactor login function for reuse Changing login function by moving declarations to parameters Code refactoring
add new api for user program check adding a new api for user program check New user api

Source: Git Best Practices (Chap 6 in Beginning Git)

Check this page!

Upload to GitHub

VS CODE

  • Activate the source control environemnt from left menu!
  • Click the "Sync Changes" button (may be just a symbol)

  • You can add a push message (shown on GitHub then) or leave it empty, then the last commit message will be used.

    From bash terminal
    git push

    GitHub is now synced with your changes

Sync from GitHub (again)

  • As others are working on the same repo, there may be uploaded changes from your collaborators
  • Do a git pull to get these changes locally as well.
  • Do this before you start with new changes.
    • This reduces errors or double work!
Git/GitHub workflow
graph TB

  P["Project idea"] -->|git init| Node2
  P["Project idea"] --> planet.py -->|git add| Node4
  Node4 --> |git commit| Node1
  Node2 --> |git push| Node5

  C[Uncommited changed planet.py] -->|commit button| R
  Node5 --> |"git pull (from local git)"| Node2
  R --> |"git pull (from local git)"| Node1
  R <--> Node5

        subgraph "Local Git"
        Node2[project]
        Node1[planet.py]
        Node1 <--> Node2

        end

        subgraph "staging area"
        Node4[planet.py]
        end

        subgraph "GitHub"
        Node5[project]
        R[planet.py]
        end

Exercises

Overview of the GitHub Project

Groups of mixed expertise!

  • 3 to 4 people in each group
Exercise 1: "View the GitHub project at: https://github.com/programming-formalisms/programming_formalisms_project_summer_2025
  • Click on a folder or file in the file explorer.
  • This enables the file "Expand file tree" button to the left of the repo name.
  • Click on that and look at the file tree!
  • View README.md
  • View Code of conduct
  • View License
  • Look at the history ("Commits" button just above the file explorer)

Get a local clone of the project

Exercise 2a: clone course project using VS code (4 min)
  • Start VS code

  • Start new window

  • In GitHub, locate the Code button, select SSH and click the copy symbol to the right

Where is this?

https://github.com/programming-formalisms/programming_formalisms_project_summer_2025

How will the address to clone look like?

https://github.com/programming-formalisms/programming_formalisms_project_summer_2025.git

  • In VS code: Clone Git repository
    • The repo may show up automatically if you are already part of the project. Then click it.
    • Otherwise paste the copied URL
  • Open folder where you want to have your project
    • Create a new one if necessary in the "Open folder File explorer"
  • Select as Repository Destination
Exercise 2b: (Alternative with command line) clone course project and create folders (4 min)
  • You may want to create a directory on your computer for this course.
  • You can do it in the normal way or use your terminal, like this, in a good place (like "Courses" if you have that)
  • mkdir Programming_formalisms
  • cd Programming_formalisms
  • In GitHub, locate the Code button, select SSH and click the copy symbol to the right
  • Back in your terminal type git clone followed by pasting the copied text.
  • The result shall look something like this:
git clone git@github.com:programming-formalisms/programming_formalisms_project_summer_2025.git

What just happened?

  • cd the new directory that was created
  • list the files with ls

Exercise 3: Make changes locally (First steps without any conflicts!)

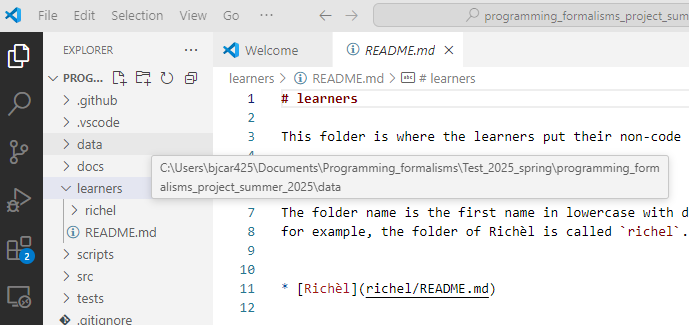

Exercise 3: Create a folder with your name (locally)
  • Step into the learners/ directory (VS Code)
  • create a folder there, clicking the "new directory" icon in upper-left part
  • git cannot use emptly directories
  • Therefore create an empty README.md file INSIDE the created folder

Exercise 4: Stage files (in git)

Exercise 4: "Add/stage file
  • First check the status!

VS Code add

  • There is an U (for Untracked) beside the README.md file
  • You want to add the files (focus the camera) to the list of files tracked by Git.
  • Git does not track any files automatically and you need make a conscious decision to add a file.
  • Hoover over the Source control icon in the Left menu
    • It should say: "1 pending changes"
  • Let's do what Git hints at and add the files:
  • Click the Icon and then add (stage) the file with the "plus" sign
  • There should now be an A (for Added) beside the README.md file

Exercise 5: Commit

Let us now commit the change to the repository:

Exercise 5: Commit

VS Code commit

  • Write the commit message "add personal folder" and click the button

  • We can check the status by opening the bash terminal

  • Choose the Git-bash
$ git status
On branch master
Your branch is ahead of 'origin/master' by 1 commit.
  (use "git push" to publish your local commits)

nothing to commit, working tree clean

Exercise 6: Upload to GitHub

  • In previous path we got:
$ git status
On branch master
Your branch is ahead of 'origin/master' by 1 commit.
   (use "git push" to publish your local commits)

nothing to commit, working tree clean
Exercise 6: Let's push back to GitHub
  • Let's "publish" you commits to the common GitHub repo
  • In VS Code: Click the "Sync Changes" button

VS Code sync_push

  • You may also give a message,
    • could be the commit message again or something else summarizing several commits or left empty

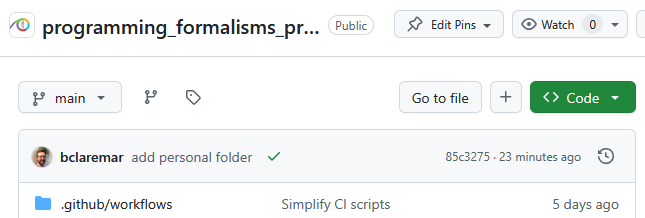

VS Code push_message

From bash terminal
git push

Exercise 7: Merge conflicts

  • Create a new file with a unique name for your group, for example group_anna_and_sven.txt
  • All members of the team: get it on your local computer
    • That is: you will get several files in total, but each just locally, so far.
How to do this?
  • Do the same steps as the exercises above in the folder Learners/ (not folder with name)
  • One member add the line below at the end of that file and does a git push:
This is the last line by me, Sven
  • After this, without doing a git pull, the other group member(s) add a last line at the end (for example, the line shown below) and does a git push:
This is the last line by me, Anna
  • This person will get a merge conflict. How does the file look like?
Answer

The file will look similar to this:

<<<<<< HEAD
This is the last line by me, Sven
======
This is the last line by me, Anna
>>>>>> 123456789abcdef
  • How would you resolve this merge conflict?
Answering

Combining these two lines of text is up to taste. The text could be replaced by, for example:

This is the last line by us, Anna and Sven
  • Resolve the merge conflict and do a git push

(Optional) Exercise 8

  • Go back to last session and read more about a topic, like UML and its syntax!

Work directly on GitHub

Working on GitHub

  • You can do basically the same work at GitHub as in your local git repo
  • The graphical view makes it easier to work with in everyday editing work at least.
    • Depends on your own preferences of course.
  • Here your commit each file at a time with the "commit button".
    • No staging that is.
    • Be aware of that feature!
  • GitHub Actions are workflows defined by you, like:
    • for automatic testing after each commit (Used in the test lessons)
    • for GitHub Pages, briefly covered in last session today or Extra reading: Documentation.

See also

Revisit on Directory structure

Directory structure

  • Different projects should have separate folders

  • README file

  • Data (version controlled)(.gitignore)
  • Processed data intermediate
  • (Manuscript)
  • Results data, tables, figures (version controlled, git tags for manuscript version)
  • Src version controlled code goes here
    • License (here or in the 1st level)
    • Requirements.txt
  • Doc
  • index
  • .gitignore file

Summary

Parts to be covered

  • ☐ Planning
    • Pseudocode
    • Unified Modelling Language (UML)
  • ☐ Testing
    • Different levels
  • ☑ Source/version control
    • Git intro
  • ☐ Collaboration
    • GitHub
  • ☐ Reproducibility (for you and others)
    • Deployment
    • Dependencies
    • (Workflows)
  • ☐ Sharing
    • open science
    • citation
    • licensing
  • ☑ Documentation
    • Explanation (in code)

Keypoints

  • A repository can have one or multiple remotes (we will revisit these later).
  • A remote (GitHub) in this case serves as a full backup of your work.
  • Code development might be easier to develop in the local git repo since you can run and test locally in an easy way.

Reference Git

  • Main git book
  • Pro Git
  • Tsitoara, Mariot, and Mariot Tsitoara. "Git best practices." Beginning Git and GitHub: A Comprehensive Guide to Version Control, Project Management, and Teamwork for the New Developer (2020): 79-86.
