Deploy your code

Questions

• How to make your program work for others?
• How to start a git repo from existing code project?

Learning outcomes of 'Deployment'

• I can mentalize the installation needs from the users' perspective
• I can initialize a new project

Content

• We will prepare for user installation of our code
• But also...
  • some theory of packages
  • some theory of containers
  • starting a git repo from existing code project

Instructor notes

Prerequisites are:

• Package

Lesson Plan:

• Total 75 min
• Theory 20+10
• Exercises 30+15 min

Introduction

• It's about Distribution!

Note

• Many projects/scripts start as something for personal use, but expands to be distributed.
• Let's start in that end and be prepared.
• The following steps can be very valuable for you in a couple of months as well as you revisit your code and don't know what it does or why you did this and that.

Tip

• Make your program or workflow work for others and yourself in the future.

To make sure about needed dependencies

• Reproducibility: We can control our code but how can we control dependencies?
• 10-year challenge: Try to build/run your own code that you have created 10 (or less) years ago. Will your code from today work in 5 years if you don’t change it?

• Dependency hell: Different codes in the same environment can have conflicting dependencies.

• 2 levels of dependencies

System libraries

• Nowadays platforms are less important, still "system files" may differ among OS platforms and Linux distributions
  • will your program require specific "system files"
  • are these typically not installed already?
  • in the best world test on Windows/Mac and Linux platforms
    • and with as empty as possible environment

packages, like in Python

• Python packages
• R packages
• Julia packages
• Matlab Add-ons

Shared services like HPC clusters

• What about Shared services like a cluster where users and most staff do not have writing privileges ('sudo' rights) for system installations?

Discussion: Where do you run your program?

• From a terminal?
  • Linux, Mac, Windows?
• From IDE?
  • VSCode, RStudio, MATLAB, Jupyter, Spyder, Idle
• On different computers
  • Using several platforms
• On a cluster?
  • NAISS resources, other?

We need to

• Inform what is needed to run the software in the README file (Next session)
• Or provide them with everything needed (file )
  • hopefully not interfering with other software they are using

Ways to distribute

• Python packages:
  • pip (PyPI)
  • conda
• R:
  • R repos like CRAN and GitHub (devtools)
  • conda
• Compiled languages:
  • built binaries (platform specific)
  • install from source
    • manual
    • make
    • CMake
• General tools
  • Containers

Conda & pip

These Python-related tools try to solve the following problems:

• Defining a specific set of dependencies, possibly with well-defined versions
• requirements.txt...
• Installing those dependencies mostly automatically
• Recording the versions for all dependencies
• Isolated environments (venv, virtualenv)
  • On your computer for projects so they can use different software.
  • Isolate environments on computers with many users (and allow self-installations)
  • Using different Python/R versions per project??
  • Provide tools and services to share packages

• Let's focus here on PyPI!
  • Remember we made a package this morning!
• We'll briefly cover the other tools after the exercise.

Recording dependencies

• Start with empty environment

Principle using python pip in a virtual environment

• We can make other users aware of the dependencies for our Python project.
• One can state those specifically as a list in a README
• Or, we can make a ready file (in python)

Save your requirements as a file

• You may have developed your Python program with your existing python modules environment. You may have installed some new packages during the development but did not track it in a good way.
• We need to identify what python packages a user (or you on another computer) will need, to make the program work!
  • There are many packages distributed in the "base" installation of Python so it is not just to look at the import lines in the code.
  • You may also be hard to get an overview because you have too many import lines, also distributed among files if you worked in a modular way

Example

• requirements.txt

Demo with planet

    git switch -c venv
    python -m venv venv
    venv/Scripts/activate
    pip freeze  #should be empty
    ls
    cd code
    ls
    python planet_main.py
        import numpy as np
        ModuleNotFoundError: No module named 'numpy'

    pip install numpy
    python planet_main.py
        ModuleNotFoundError: No module named 'matplotlib'
    pip install matplotlib
    pip freeze
    pip freeze > requirements.txt
    git add requirements.txt
    git commit -m "add requirements.txt"
    git push
    git switch main
    git merge venv
    git push

Ignoring files and paths with .gitignore

Compiled and generated files are not committed to version control. There are many reasons for this:

• Your code could be run on different platforms.
• These files are automatically generated and thus do not contribute in any meaningful way.
• The number of changes to track per source code change can increase quickly.
• When tracking generated files you could see differences in the code although you haven't touched the code.

For this we use a .gitignore file (put in root folder)

• Read more

• Our course repo

Exercise 1: Identify lacking packages (15-20 min)

Tip

• Work individually locally (in VS Code)
• Help each-other if getting stuck
• 2-3 per group

Step 1: Start an EMPTY python virtual environment

• Git pull!
• Go to the dir learners/<your-name> locally
• Create a new folder called test
• Go into that folder
• Check that you can run python from the commandline!

which python     # must point to the python belonging to the virtual environment

Don't find it?

• If not found, and you have installed Conda/miniconda, "source activate Conda"

Examples, please try to find your solution from these or combination of these.

Mac/Linux and minicondaWindows and Anaconda

source /Users/[username]/miniconda3/bin/activate base

source C:/Users/[username]/AppData/Local/anaconda3/Scripts/activate base

Note that in Windows the activate source file is in the directory Scripts not the usual bin directory.

• Test which python again!

• Create a virtual environment, called usertest

python -m venv usertest

• This creates an empty virtual environment located in usertest directory
• Activate

Mac/LinuxWindows

source usertest/bin/activate

source usertest/Scripts/activate

• Note the (usertest) in the beginning of the prompt! Could be together with the conda (base) environment as well.
• Check versions

which python     # must point to the python belonging to the virtual environment
python -V        # note this version (same as you started the virtual environment from)
which pip        # must point to the pip belonging to the virtual environment

• Check it is empty with the command pip list
• It should just show

Package    Version
---------- -------
pip        23.2.1
setuptools 65.5.0

• and some notes.

Step 2: Run the program and look for missing packages

Hints (FIX?)

• The main program main.py is in the repo's root folder.
• weather is a python package needed by main.py
• available here: https://test.pypi.org/project/uppsalaweather/0.9/

• Go to the directory where main.py is
• Run the program

python main.py

• It may give you errors of missing packages, like weather
• Install weather with

pip install -i https://test.pypi.org/simple/ uppsalaweather==0.9

(note the blank space before the package name!

• Test run the program again

• If more packages are needed, errors will still show up

• Otherwise continue to next step

How do I install other packages

pip install <package name>

• Do NOT use --user, since it should be installed in the virtual environment only.
• Do this until your program works

Step 3: Save your requirements as a file that user can run to get the needed dependencies

• Check what is installed by:

pip freeze

• You will probably recognise some of them, but some may be more obscure and were installed automatically as dependencies.
• Save your requirements as a file that user can run to get the needed dependencies.

pip freeze > requirements.txt

• Other users can then install the same packages with:

  pip install --user -r requirements.txt


• End the isolated environment

deactivate

(Optional) Step 4: Test the requirements file in a new environment

• Double-check it works by:

• Create another virtual environment

  python -m venv usertest2


• Activate

Mac/LinuxWindows

source usertest2/bin/activate

source usertest2/Scripts/activate

• Note the (usertest2) in the beginning of the prompt!

pip install --user -r requirements.txt

• Run the program!

No errors should show up!

(Optional) Step 5: Add the folder to .gitignore

• Add test directory to .gitignore file (root folder in repository)

Follow up

Requirements file enabling test packages to be found

--index-url https://test.pypi.org/simple/
--extra-index-url https://pypi.org/simple
--pre
uppsalaweather==0.9

• possibly not all of the 3 upper lines are needed

(One person): Move a working requirements file to the src/learners folder

• Move the requirements file to the learners/source folder
• This will be the "official" requirements file
• That person git commit and pushes to GitHub!

Going further with deployment

Python for scientific computing

Course advertisement

• Python for scientific computing
• Python packaging session.

Possibilities for other languages can be

• C/C+
  • CMake
  • Conda
• Fortran
  • Fortran package manager

• Julia

  • Pkg.jl

• More info

• The tools

Compiled language, course

• Build Systems Course

Containers

• Containers let you install programs without needing to think about the computer environment, like

  • operative system
  • dependencies (libraries and other programs) with correct versions

From Nextlabs:

Info

• 2(3) types

  1. Singularity/Apptainer perfect for HPC systems

  2. Docker that does not work on HPC-systems

     • But docker images can be used by Singularity and Apptainer

• Everything is included

• Workflow:

  • Download on Rackham or local computer
  • Transfer to Bianca
  • Move to from wharf to any place in your working folders on Bianca

• Draw-backs

  • you install also things that may be already installed
  • therefore, probably more disk space is needed

More info

• Singularity course
• Environments by CodeRefinery
• Containers in the extra material

Workflows

Learn more

• Workflow management by CodeRefinery
• Snakemake by CodeRefinery

Quality of life

• Run a python script without the python before in a linux environment!

• This line helps in the top of the main script:

#!/bin/env python

• Then the python active in "PATH" will automatically be used

  • especially important on a shared system where python is not in the typical /usr/bin/python path.

• Run from command line as:

./pythonscript

See also

• Collection of (Academic) software repo links
• Awesome list of Research Software Registries

Start a Git/GitHub repo from personal existing project

• Many projects/scripts start as something for personal use, but expands to be distributed.
• Let's start in that end and be prepared.

Principle

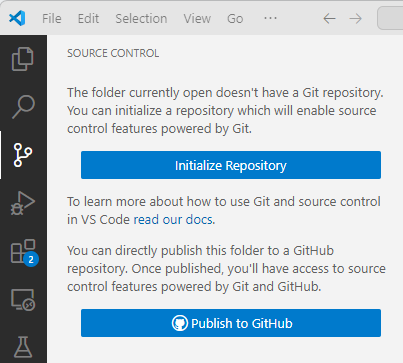

• Initiate git project
  • Browse to right root directory (the folder containing all the project-related files)
• Stage and commit
• upload to github

(Optional) Exercise 2: 10-15 minutes

• Let's say you have some code you have started to work with

Tip

• Work individually locally (in VS Code or terminal)
• Help each-other if getting stuck
• Start with 1A OR 1B
  • 1a goes to Breakout room 1
  • 1b goes to Breakout room 2

Exercise 1A: Identify existing project

• Just use an existing programming project you already have
• Browse to right root directory (the folder containing all the project-related files)

Exercise 1B: Make a code base for a new test project

• Make a test_project directory in a good place (like a local Programming formalisms course folder)

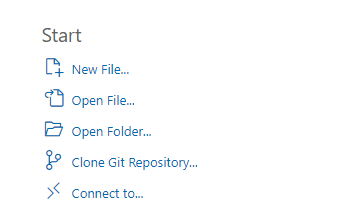

In VS Code?

• Make a new window

• Open Folder



• Create new Folder with name test_project

• Select folder
• Create and save a file hello.py with the following code base and the in-code documentation answering the question "why".

# We just want some output from a simple program
print('Hello world!')

Exercise 2: Initiate the project

VS CODE

• RECOMMENDED Publish to GitHub diectly and you are done!

  • You may change the name of the repo for the GitHub instance, but not recommended.
  • Include the file(s) (in this case the hello.py file) in the repo!
  • Double check it was created on GitHub!
    • It should show up under repos in your user space

• ALTERNATIVE: Initialize and then continue with step 3.

Terminal

• Be in a terminal and go to the project folder, which will be the project repository (repo)
• run git init

• make sure that there is a .git directory created

  • you have to show hidden files, in bash terminal with ls -a

• Now you have a git repo called test_project

• Check with the command: git status
  • It is always a safe command to run and in general a good idea to do when you are trying to figure out what to do next.

(If needed) Exercise 3: Add and commit the content

• So far, there is no content. We have to manually add the content to the repo.
• Add and Commit your changes

VS Code

We do this all the time! :)

Terminal

git add
git commit -m 'first commit'

(If needed) Exercise 4: Upload to GitHub

In VS Code

• There is an opportunity to directly publish on GitHub

From GitHub

• Make sure that you are logged into GitHub.
• You can use this for both VS Code and terminal

• To create a repository we either click the green button "New" (top right corner).

• Or if you see your profile page, there is a "+" menu (top right corner).

---

• On this page choose a project name, e.g. test_project or a project name suiting your existing project.

• NOTE It is not necessary to have the same name but it makes things easier to know what is what when syncing between GitHub and git.

• For the sake of this exercise do NOT select "Initialize this repository with a README"

• and NO Licence

Example project

• Press "Create repository"

• Choose html
• Copy-paste the code for "…or push an existing repository from the command line"
• Go to local git terminal and go to the git project you started above

• Paste the code

• Did it work??

• Reload the GitHub page and see the files present locally is also present there.

Done!

What we did

Workflow

graph TB

P["Project idea"] -->|git init| Node2
P["Project idea"] --> hello.py -->|git add| Node4
Node4 --> |git commit| Node1
Node2 --> |git push| Node5

%% C[Uncommited changed hello.py] -->|commit button| R
R <--> Node5
       subgraph "Local Git"
        Node2[project]
        Node1[hello.py]
        Node1 <--> Node2

        end

        subgraph "staging area"
        Node4[hello.py]
        end

        subgraph "GitHub"
        Node5[project]
        R[hello.py]
        end

Summary

Key points

Make sure it works for others or yourself in the future!

Parts to be covered!

• ☑ Source/version control
  • Git
  • GitHub as remote backup
  • inititalize from existing project
  • branches
• ☑ Planning
  • ☑ Analysis
  • ☑ Design
• ☑ Testing
  • Different levels
• ☑ Collaboration
  • GitHub
  • pull requests
• ☐ Sharing
  • ☑ open science
  • ☐ citation
  • ☐ licensing
  • ☑ deploying
• ☐ Documentation
  • ☑ in-code documentation
  • ☐ finish documentation
