HPC clusters

The HPC centers UPPMAX, HPC2N, LUNARC, NSC and PDC

Five HPC centers

There are many similarities:

• Login vs. calculation/compute nodes

• Environmental module system with software hidden until loaded with module load

• Slurm batch job and scheduling system

… many small differences:

• commands to load R, Matlab and Julia and packages/libraries

• sometimes different versions of R, Matlab and Julia, etc.

• slightly different flags to Slurm

… and some bigger differences:

• UPPMAX has three different clusters

  • Rackham for general purpose computing on CPUs only

  • Snowy available for local projects and suits long jobs (< 1 month) and has GPUs

  • Bianca for sensitive data and has GPUs

• HPC2N has Kebnekaise with GPUs

• LUNARC has Cosmos with GPUs (and Cosmos-SENS)

• NSC has several clusters

  • BerzeLiUs (AI/ML, NAISS)

  • Tetralith (NAISS)

  • Sigma (LiU local)

  • Freja (R&D, located at SMHI)

  • Nebula (MET Norway R&D)

  • Stratus (weather forecasts, located at NSC)

  • Cirrus (weather forecasts, located at SMHI)

  • We will be using Tetralith, which also has GPUs

• PDC has Dardel with AMD GPUs

Warning

• We call the applications available via the module system modules.

  • UPPMAX

  • HPC2N

  • LUNARC

  • NSC

  • PDC

Briefly about the cluster hardware and system at UPPMAX, HPC2N, LUNARC, NSC and PDC

What is a cluster?

• Login nodes and calculations/computation nodes

• A network of computers, each computer working as a node.

• Each node contains several processor cores and RAM and a local disk called scratch.

• The user logs in to login nodes via Internet through ssh or Thinlinc.

  • Here the file management and lighter data analysis can be performed.

• The calculation nodes have to be used for intense computing.

Common features

• Linux kernel

• Bash shell

• x86-64 CPUs, some clusters with Intel processors and some with AMD.

• NVidia GPUs (HPC2N/LUNARC, also AMD) except for Dardel with AMD.

Hardware

Technology	Kebnekaise	Rackham	Snowy	Bianca	Cosmos	Tetralith	Dardel
Cores/compute node	28 (72 for largemem, 128/256 for AMD Zen3/Zen4)	20	16	16	48	32	128
Memory/compute node	128-3072 GB	128-1024 GB	128-4096 GB	128-512 GB	256-512 GB	96-384 GB	256-2048 GB
GPU	NVidia V100, A100, A6000, L40s, H100, A40, AMD MI100	None	NVidia T4	NVidia A100	NVidia A100	NVidia T4	four AMD Instinct™ MI250X á 2 GCDs

Overview of the UPPMAX systems

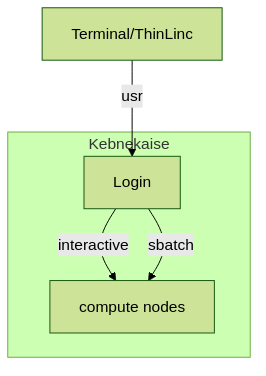

Overview of the HPC2N system

Overview of the LUNARC system

Overview of the NSC systems
