Profiling

CPU

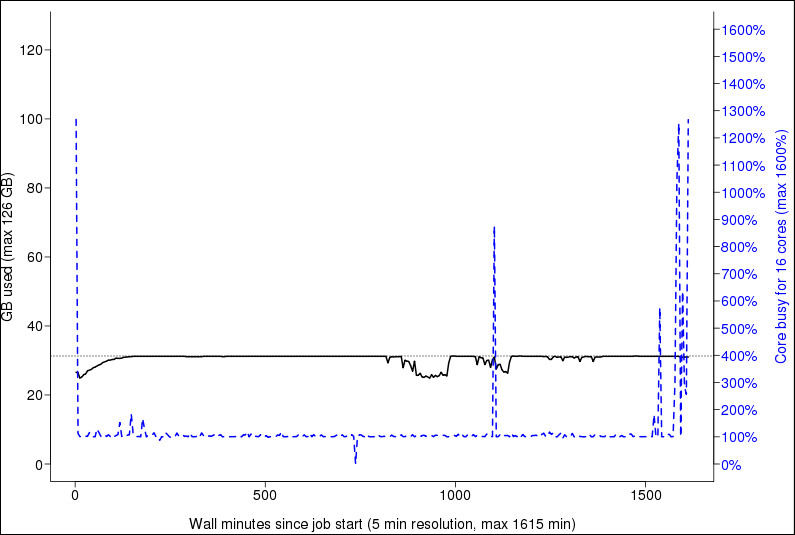

jobstats

jobstats --plot [jobid]

Read more : https://docs.uppmax.uu.se/software/jobstats/

htop

projplot

projplot -A [project_code]

Read more : https://docs.uppmax.uu.se/software/projplot/

GPU

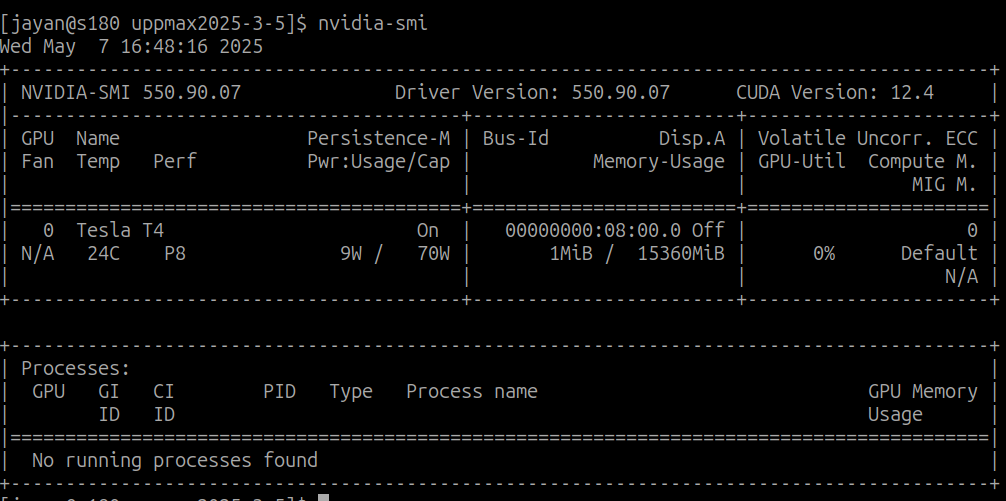

nvidia-smi

nvidia-smi dmon -o DT
nvidia-smi --format=noheader,csv --query-compute-apps=timestamp,gpu_name,pid,name,used_memory --loop=1 -f sample_run.log

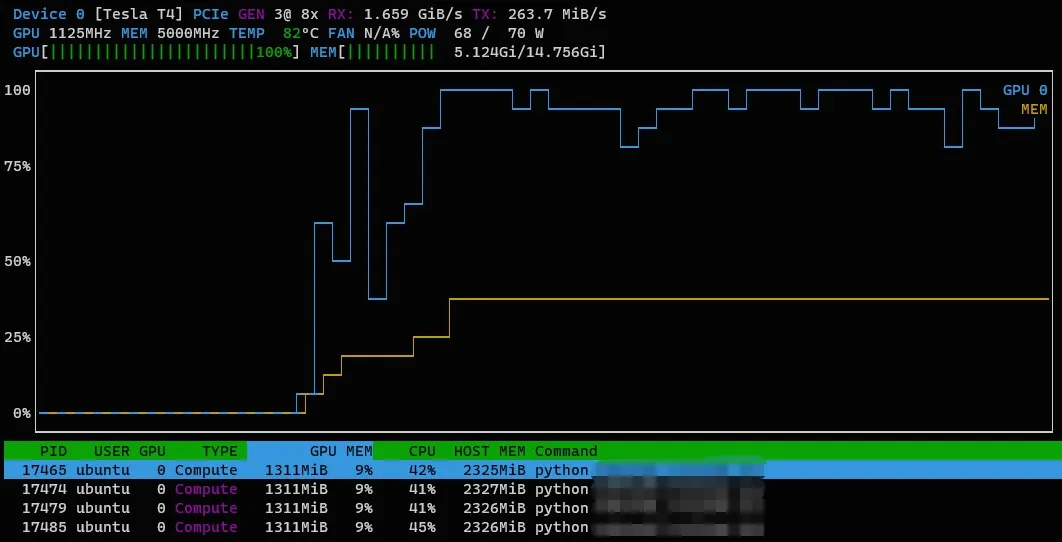

nvtop

image source

module load nvtop
nvtop

Pytorch

memory_viz

CUDA OOMs memory snapshot and memory profiler

Start: torch.cuda.memory._record_memory_history(max_entries=100000)
Save: torch.cuda.memory._dump_snapshot(f"{file_name}.pickle")
Stop: torch.cuda.memory._record_memory_history(enabled=None)
To visualize the snapshot file, PyTorch has a tool hosted at https://pytorch.org/memory_viz.

Reach more : https://pytorch.org/blog/understanding-gpu-memory-1/

Tensorflow

Tensorboard

tensorboard and tensorboard-data-server are available as a module :

module load python_ML_packages/3.11.8-cpu
tensorboard --bind_all --logdir=./tensorboard-log-dir

or

module load python_ML_packages/3.9.5-gpu
tensorboard --bind_all --logdir=./tensorboard-log-dir

Read more : https://uppmax.github.io/uppmax4DL/tensorboard/
