TDD at a bigger scale

Learning outcomes

  • Understand end-to-end development
  • Understand how to develop with TDD at a bigger scale
  • Be able to develop with TDD at a bigger scale
For teachers

Prerequisites are:

  • Learners can have practiced TDD

Teaching goals are:

  • .

Teaching form used:

  • Individual work
  • main branch

Prior knowledge questions:

  • How can TDD be used for bigger projects?
  • How does one test more complex functions?

1. Why use test-driven development at a bigger scale?

Again, test-driven development (TDD) is a systematic way to grow code, used in academia and industry. There are many benefits to use TDD (see the session on TDD for references) and they apply to big code too.

2. End-to-end development

There are multiple ways to find a part where to begin development of a project:

Type Description Features
Small-to-big Start with the core function and build the rest around it Natural starting point for beginners. Easy to get lost in details and lose overview. Software architecture typically clumsy
Big-to-small Start with high-level code and gradually add details Feels unnatural for a beginner. Bad architectural decisions postponed until the low-level functions are developed
End-to-end Start with big to small, yet develop more detailed functions when encountered naturally Recommended. A good mix between high-level thinking to ensure overview is maintained, yet the low-level functions are tested early enough to detect architectural mistakes

In the example below we go end-to-end, starting at a high-level function called do_analysis until the low-level function called read_data. The functions in that example can be displayed as the figure below:

flowchart TD

  subgraph do_analysis
    create_figure
    subgraph create_statistics_file
      subgraph calc_p_value
        subgraph get_first_third_temperatures
          read_data
        end
      end
    end
  end

3. An example

3.1. Draft paper

Imagine that you are part of a team that works on writing a paper on the weather project data. Part of the draft paper is as below:

Part of the paper

Research question

Have temperatures risen in Uppsala in the period 1722 to 2022?

Hypotheses

Hypothesis: temperatures remain the same

Methods

We test our hypothesis by comparing the average yearly temperatures at the start and end of our measurement period. To prevent that the temperatures are too related, we compare the first third of the measurements (i.e. 1722-1822) with the last third of the measurements (i.e. 1922-2022) and ignoring the measurements in between. We only consider years that are measured completely, to remove seasonal effects, which means that the first year (1722) will be ignored.

We compare these yearly average tempares with a two-sided Kolmogorov-Smirnov test (so to avoid assuming an increase/decrease, nor a distribution on these average temperatures), with the null hypothesis that these distributions are identical. We use an alpha value of 0.05. If the measured p value is below the alpha, then we reject the null hypothesis that the distributions are identical and we conclude that the temperatures have changed.

Results

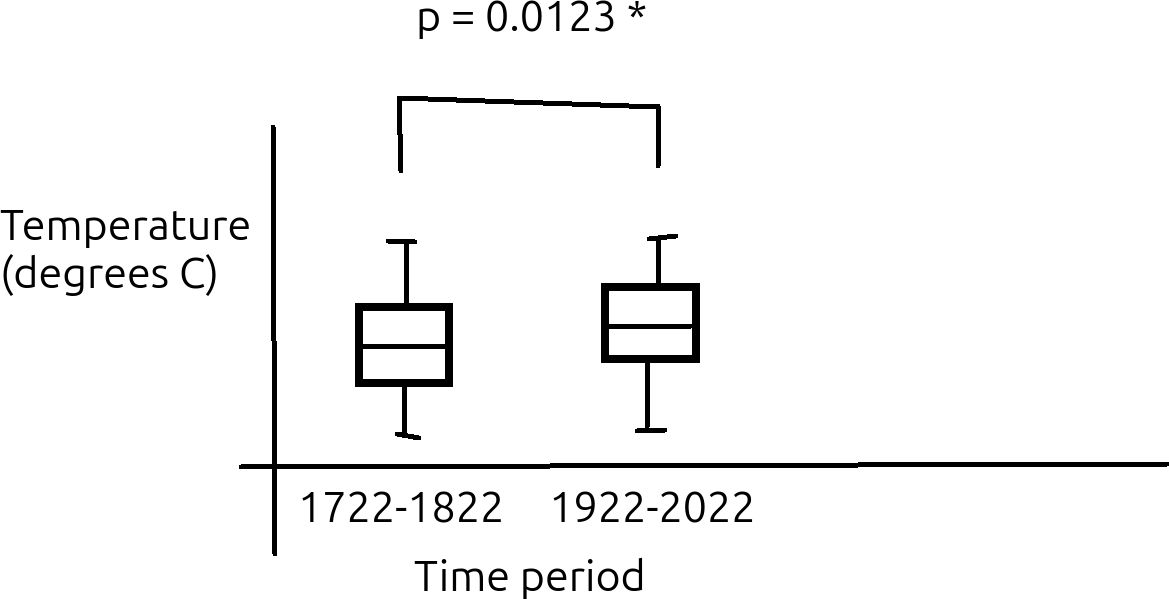

Sketch boxplot

Figure: temperature distribution

3.2. Small to big

A caricature of a small-to-big developer may write the following test early:

# Use super different values, so the difference is significant
assert ks_test([10, 12, 11], [1000, 1002, 1001]) < 0.05

plot_boxplot([1.9, 2.3, 1.8], [0.1, -4.1, 2.8], "test_figure.png")
assert file_exists("test_figure.png")

These tests introduce three functions that need to be written. Although these tests may be reasonably fine (as the problem is simple enough), it is the timing that can be improved.

3.3. Starting point

Here is a superior starting point:

do_analysis()
assert do_analysis.__doc__
assert file_exists("figure.png")
assert file_exists("statistics_results.txt")

It is important to, as a team, agree on the tests. The tests should make sense.

How do these tests make sense?

Because their English equivalents make sense:

Test English
assert do_analysis.__doc__ The function should have documentation
assert file_exists("figure.png") After the analysis, there should be a file of the saved plot
assert file_exists("statistics_results.txt") After the analysis, there should be a file with the statistics results
Do you see the weakness in these test?

One weakness in these tests, is that it does not guarantee that the files are recreated: if these are created once, then these tests will continue to pass. It would be better to check if these files exist before the test, and delete these if they do.

Another weakness in these tests, is that the filenames are hardcoded: one needs to know that do_analysis creates these files. It would be better to supply these filename as arguments to do_analysis, for example:

def do_analysis(plot_filename, statistics_filename):
    # ...
    # At the end of the code:
    assert file_exists(plot_filename)
    assert file_exists(statistics_filename)

Below is an example test that does not make sense:

assert file_exists("figure.png", "1722-1822", 0.05)
How do this tests not make sense?

Because its English equivalent does not make sense:

Test English
assert file_exists("figure.png", "1722-1822", 0.05) After the analysis, there should be a file with some text with some significance level

It will be easy to make these tests pass:

def do_analysis():
    """Do the analysis as described in the paper."""
    figure_file = open("figure.png", "w")
    figure_file.close()

    statistics_file = open("statistics_results.txt", "w")
    statistics_file.close()

do_analysis()
assert file_exists("figure.png")
assert file_exists("statistics_results.txt")
Should do_analysis check if it has created its files?

Indeed, do_analysis can check if it has created its files:

def do_analysis():
    # ...
    assert file_exists("figure.png")
    assert file_exists("statistics_results.txt")

One can argue that this is good: we assume that these files are created at the end of the function.

One can also argue that this is bad: we have our tests that check this (this assumes we do TDD!), so there is no need to check twice.

Because both reasonings are valid, it is up to taste and context what to do.

I have seen cases where I have added these asserts and I've seen cases where I have removed these asserts, both for good reasons.

Although it may feel you have not done anything useful, you actually have: you've sketched the outline of the analysis. Sure, things will change and even this architecture already has its flaws, it is Good Enough.

3.4. First iteration

There are many ways to go forward here and multiple ways are equally fine.

The thing that annoys me most is that do_analysis already uses two variables: one for each file. Also, these variables live longer than they need (i.e. nothing stops me from re-opening the first file and working on it again). I feel there is no need that these variables are in the same function. Hence, I will split up the function:

def do_analysis():
    """Do the analysis as described in the paper."""
    create_figure()
    create_statistics_file()

assert create_figure.__doc__
create_figure()
assert file_exists("figure.png")

assert create_statistics_file.__doc__
create_statistics_file()
assert file_exists("statistics_results.txt")

This refactoring consists of moving code around:

def create_figure():
    """Create the boxplot of temperatures."""
    file = open("figure.png", "w")
    file.close()

def create_statistics_file():
    """Create the file with the statistics needed."""
    file = open("statistics_results.txt", "w")
    file.close()

Note that I can shorten the variables names figure_file and statistics_file now: each function now has its own file variable. Variable that have a life that is as short as needed is a good idea.

3.5. Second iteration

There are many ways to go forward here and multiple ways are equally fine.

I think working on the statistics file is the best way forward: I can imagine that I can test if a file contains a line of text with a p-value (e.g. p-value: 0.123). Images are harder to test, hence I try to avoid writing tests on images. I even predict I will not even need to write such a test in the end...

I feel writing a p-value to the statistics file is a good start:

def create_statistics_file():
    """Create the file with the statistics needed."""
    file = open("statistics_results.txt", "w")
    p_value = calc_p_value()
    assert p_value >= 0.0
    assert p_value <= 1.0
    file.write("p value:" + str(p_value))
    file.close()


assert calc_p_value.__doc__
assert calc_p_value() >= 0.0
assert calc_p_value() <= 1.0

This would be a good enough stub for calc_p_value:

def calc_p_value():
    """Create the p value of the statistics test."""
    return 0.5

3.6. Third iteration

There are many ways to go forward here and multiple ways are equally fine.

I feel making the calc_p_value function actually do something would be most useful. Also, it annoys me that calc_p_value has no arguments: how can I test such a function? Let's first make the function testable: a Good Idea!

So I start with writing a test, that forces me to improve calc_p_value:

assert calc_p_value([1, 2, 3], [4, 5, 6]) >= 0.0

Remembering the second law of TDD ('You may not write more of a unit test than is sufficient to fail, and not compiling is failing' [Martin, 2007]) I know I am on the right track: the code will give a syntax error.

The code will give a syntax error, because I have two tests that conflict:

# Earlier
assert calc_p_value.__doc__
assert calc_p_value() >= 0.0
assert calc_p_value() <= 1.0

# Newer
assert calc_p_value([1, 2, 3], [4, 5, 6]) >= 0.0

The earlier tests assume that there are default values for all function arguments. That can be fixed:

def calc_p_value(values_1 = [1.2, 3.4, 5.6], values_2 = [7.8, 9.0, 1.2]):
    """Create the p value of the statistics test."""
    return 0.5

3.7. Fourth iteration

There are many ways to go forward here and multiple ways are equally fine.

I feel making the calc_p_value function actually do something would be most useful. Now we can!

I add these tests:

expected_p_value = 0.0326 # From https://agentcalc.com/kolmogorov-smirnov-test-calculator
assert calc_p_value([1, 2, 3], [4, 5, 6]) >= expected_p_value - 0.001
assert calc_p_value([1, 2, 3], [4, 5, 6]) <= expected_p_value + 0.001

I obtained the expected p-value from an online Kolmogorov-Smirnov test calculator. I assume this online calculator is correct.

This forces me to write a useful calc_p_value function. To write it, I searched the web for Python Kolmogorov Smirnov test and found documentation to an implementation, from which I conclude that this may work:

def calc_p_value(values_1 = [1.2, 3.4, 5.6], values_2 = [7.8, 9.0, 1.2]):
    """Create the p value of the statistics test."""
    from scipy import stats
    return stats.kstest(values_1, values_2).pvalue

When running this code, my tests failed!

This means there is a mismatch between the Python implementation and the website. Luckily, the website has a worked-out example:

Worked Example

Consider two manufacturing processes that produce slightly different measurements for a critical component. Suppose sample A consists of the diameters [5.01, 4.98, 5.03, 5.00, 5.02] millimeters, while sample B produces [4.97, 4.99, 5.04, 5.01, 4.96]. When these values are entered into the calculator, the sorted ECDFs reveal a maximum deviation of D. With both samples containing five observations, the approximation above yields a p‑value around 0.70.

We change the tests to the worked-out example:

expected_p_value = 0.0326 # From https://agentcalc.com/kolmogorov-smirnov-test-calculator
values_1 = [5.01, 4.98, 5.03, 5.00, 5.02]
values_2 = [4.97, 4.99, 5.04, 5.01, 4.96]
assert calc_p_value(values_1, values_2) >= expected_p_value - 0.001
assert calc_p_value(values_1, values_2) <= expected_p_value + 0.001

Also these tests fail! Adding a print statement ...

print(calc_p_value(values_1, values_2))

... reveals that the actually generated p-value is around 0.87.

Let's check another online Kolmogorov Smirnov calculator, which does not even give us a p-value: the sample size is too small! It seems our test must include at least 10 values. Let's update our test:

expected_p_value = 0.8810 # From https://agentcalc.com/kolmogorov-smirnov-test-calculator
# expected_p_value = 0.8659 # From https://www.statskingdom.com/kolmogorov-smirnov-two-calculator.html

values_1 = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
values_2 = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13]
print(calc_p_value(values_1, values_2))
assert calc_p_value(values_1, values_2) >= expected_p_value - 0.1
assert calc_p_value(values_1, values_2) <= expected_p_value + 0.1

This prints a value of around 0.84, which we consider good enough. It seems that there are multiple implementations of this algorithm and it seems like we are doing well enough.

I feel that this is good enough for now and I will create an issue to remind myself to double-check this calculation with another set of values.

3.8. Fifth iteration

There are many ways to go forward here and multiple ways are equally fine.

I feel making the calc_p_value function use the actual values from the dataset would be most useful. Here I rewrite calc_p_value:

def calc_p_value(values_1 = get_first_third_temperatures(), values_2 = get_last_third_temperatures()):
    # Function body stays the same

Remembering the second law of TDD ('You may not write more of a unit test than is sufficient to fail, and not compiling is failing' [Martin, 2007]) I know I am on the right track: the code will give an error that get_first_third_temperatures and get_last_third_temperatures are missing. Let's implement these:

def get_first_third_temperatures():
    return [1.2, 3.4, 5.6]

def get_last_third_temperatures():
    return [7.8, 9.0, 1.2]

All tests pass again!

3.9. Sixth iteration

There are many ways to go forward here and multiple ways are equally fine.

I feel making the get_first_third_temperatures function use the actual values from the dataset would be most useful. Here I write the tests for get_first_third_temperatures:

assert get_first_third_temperatures.__doc__
assert len(get_first_third_temperatures()) > 10

This is good enough to make me work on get_first_third_temperatures:

def get_first_third_temperatures():
    """Get the first third of temperatures.
    This excludes the year 1722, as this year is not completely measured."""
    table = read_data()

    # Assert 'table' is a table
    # Assert 'table' has a column called 'Year'

    table = table[table["Year"] > 1722 && table["Year"] <= 1822]

    # Assert 'table' has a column called 'Temperature'

    return table["Temperature"]

And here we finally get into the more technical things, such as reading a table and selecting rows and columns from it!

Could you show me the complete code?

Here is the complete code, except for the last version of collect_first_third_temperatures:

def collect_first_third_temperatures():
    return range(1, 100)

def get_first_third_temperatures():
    """Get the first third of temperatures.
    This excludes the year 1722, as this year is not completely measured."""
    return collect_first_third_temperatures()

assert len(get_first_third_temperatures()) > 10

def get_last_third_temperatures():
    return [7.8, 9.0, 1.2]

def calc_p_value(values_1 = get_first_third_temperatures(), values_2 = get_last_third_temperatures()):
    """Create the p value of the statistics test."""
    from scipy import stats
    return stats.kstest(values_1, values_2).pvalue


expected_p_value = 0.8810 # From https://agentcalc.com/kolmogorov-smirnov-test-calculator
# expected_p_value = 0.8659 # From https://www.statskingdom.com/kolmogorov-smirnov-two-calculator.html

values_1 = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
values_2 = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13]
assert calc_p_value(values_1, values_2) >= expected_p_value - 0.1
assert calc_p_value(values_1, values_2) <= expected_p_value + 0.1

def file_exists(filename):
    return True


def create_figure():
    """Create the boxplot of temperatures."""
    file = open("figure.png", "w")
    file.close()

assert create_figure.__doc__
create_figure()
assert file_exists("figure.png")

def create_statistics_file():
    """Create the file with the statistics needed."""
    file = open("statistics_results.txt", "w")
    p_value = calc_p_value()
    assert p_value >= 0.0
    assert p_value <= 1.0
    file.write("p value:" + str(p_value))
    file.close()


assert create_statistics_file.__doc__
create_statistics_file()
assert file_exists("statistics_results.txt")

def do_analysis():
    """Do the analysis as described in the paper."""
    create_figure()
    create_statistics_file()

do_analysis()
assert do_analysis.__doc__
assert file_exists("figure.png")
assert file_exists("statistics_results.txt")

5. Exercises

5.1. Discuss the steps shown

Go through the steps shown above together. Make sure you follow along with the code on your own screen, as in each little discussion, there will be no screen shared.

  • Do you agree that the steps taken are reasonable? If not, why?
  • Do you think a mistake has been made? If yes, where?
  • Would you trust the results of this analysis? Why?

References

  • [Alkaoud & Walcott, 2018] Alkaoud, Hessah, and Kristen R. Walcott. "Quality metrics of test suites in test-driven designed applications." International Journal of Software Engineering Applications (IJSEA) 2018 (2018).
  • [Beck, 2022] Beck, Kent. Test driven development: By example. Addison-Wesley Professional, 2022.
  • [Bhat & Nagappan, 2006] Bhat, Thirumalesh, and Nachiappan Nagappan. "Evaluating the efficacy of test-driven development: industrial case studies." Proceedings of the 2006 ACM/IEEE international symposium on Empirical software engineering. 2006.
  • [Erdogmus & Morisio, 2005] Erdogmus, Hakan, Maurizio Morisio, and Marco Torchiano. "On the effectiveness of the test-first approach to programming." IEEE Transactions on software Engineering 31.3 (2005): 226-237.
  • [George & Williams, 2004] George, Boby, and Laurie Williams. "A structured experiment of test-driven development." Information and software Technology 46.5 (2004): 337-342.
  • [Janzen & Saiedian, 2006] Janzen, David S., and Hossein Saiedian. "Test-driven learning: intrinsic integration of testing into the CS/SE curriculum." Acm Sigcse Bulletin 38.1 (2006): 254-258.
  • [Langr, 2013] Langr, Jeff. Better, Code, and Sleep Better. "Modern C++ Programming with Test-Driven Development." (2013).
  • [Madeyski et al., 2010] Madeyski, Lech, and Gestión de sistemas de información. Test-driven development: An empirical evaluation of agile practice. Heidelberg: Springer, 2010.
  • [Martin, 2007] Martin, Robert C. "Professionalism and test-driven development." IEEE Software 24.3 (2007): 32-36.
  • [Martin, 2009] Martin, Robert C. Clean code: a handbook of agile software craftsmanship. Pearson Education, 2009.
  • [Martin, 2011] Martin, Robert C. The clean coder: a code of conduct for professional programmers. Pearson Education, 2011.
  • [Martin, 2017] Martin, Robert C. "Clean architecture." 12 Sep. 2017,
  • [Mayr, 2005] Mayr, Herwig. Projekt Engineering: Ingenieurmäßige Softwareentwicklung in Projektgruppen. Hanser Verlag, 2005.
  • [Nagappan et al., 2008] Nagappan, Nachiappan, et al. "Realizing quality improvement through test driven development: results and experiences of four industrial teams." Empirical Software Engineering 13 (2008): 289-302.
  • [PEP 8] Van Rossum, Guido, Barry Warsaw, and Nick Coghlan. "PEP 8–style guide for python code." Python. org 1565 (2001): 28.
  • [Stroustrup & Sutter, 2017] Stroustrup, Bjarne, and Herb Sutter. "C++ Core Guidelines (2017)." Website. (Cited on pages 100 and 103) (2015).
  • [study I cannot find] in one of the classics, there was a bar chart that showed developers write functions such as is_prime with and without TDD and showed that TDD was twice as fast. TODO: find this reference
  • [Thomas & Hunt, 2019] Thomas, David, and Andrew Hunt. The Pragmatic Programmer: your journey to mastery. Addison-Wesley Professional, 2019.
  • [Wickham, 2019] Wickham, Hadley. Advanced R. Chapman and Hall/CRC, 2019.
