Pipe¶

Learning objectives

learn about the operator pipe
- when to use it
- how to use it
try some examples with pipe

Note

The operator pipe (or pipeline) is used to chain commands; i.e. pipes are used when you want to take the output of one command and use it as input for another command. It is symbolized by a | between the commands.

This is often called “to pass output to another command”.

In many cases it is possible to do the same with an intermediate file (or more), but it is often better to just combine the commands with one or more pipes.

Pipes are very useful, and will be used in several of the following sections!

Syntax¶

Using a pipe between two or more commands look like this:

<command 1> | <command 2> | <command 3> | ...  | <command N>

Some commands¶

We will use a number of Linux commands in this section for illustrating how pipes work. They were all covered in the Basic Linux course and are listed in prerequisites, but here is a brief reminder of their function:

Click to reveal

less: forward and backward navigation and also has search options. Usage less FILE. Exit with: q
more: forward navigation and limited backward navigation in a file named FILE. Usage: more FILE. Exit with: q
cat: a tool for file-related operations (view, concatenate, create, copy, merge, and manipulate file contents). Usage: cat [option] FILE where option is various optional options
find: The find command is used for file and directory search. You can search by name, size, modification time, or content. Usage: find [path] [options] [expression] where common options are
- -type f: only search for files
- -type d: only search for directories
- -name NAME: only search for files with a specific name NAME or pattern
- -size [+/-]n: Searches for files based on size. +n finds larger files, -n finds smaller files. ‘n‘ measures size in characters.
- -mtime n: Finds files based on modification time. n represents the number of days ago.
- -exec command {} \;: Executes a command on each file found.
sort: The sort command is used in Linux to print the output of a file in given order.
- -n: compare according to string numerical value
- -f: ignore case
- -b: ignore leading blanks
- -k keydef: by size where keydef is start and stop position
- -r: reverse
head: prints the first lines of a file. Usage: head -n FILE
tail: prints the lines at the end of a file. Usage: tail -n FILE
echo: displays lines of text or strings that are passed as arguments. Usage: echo [option] [string]
tee: Copy standard input to each file and also to standard output. Usage: tee [option] ... [file1] [file2] ...

Examples of piping¶

Hint

Type along!

To run the examples, go to the “exercises” -> “piping-wc-cut” directory where there are files that are suitable to run these examples on.

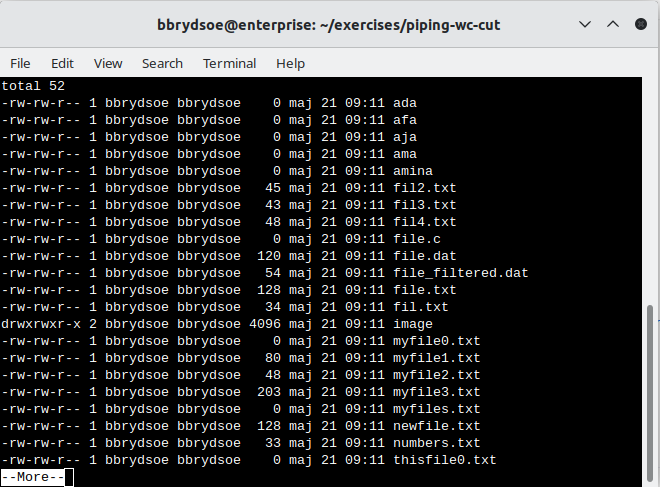

Using one pipe: List all files and directories and give as input to more

This is useful if there are many files in the directory and you would like to see them/scroll through them.

$ ls -l | more

Output:

ls-more

Using one pipe: Sort a list of files by size

$ ls -l | sort -k 5

ls-l-sort

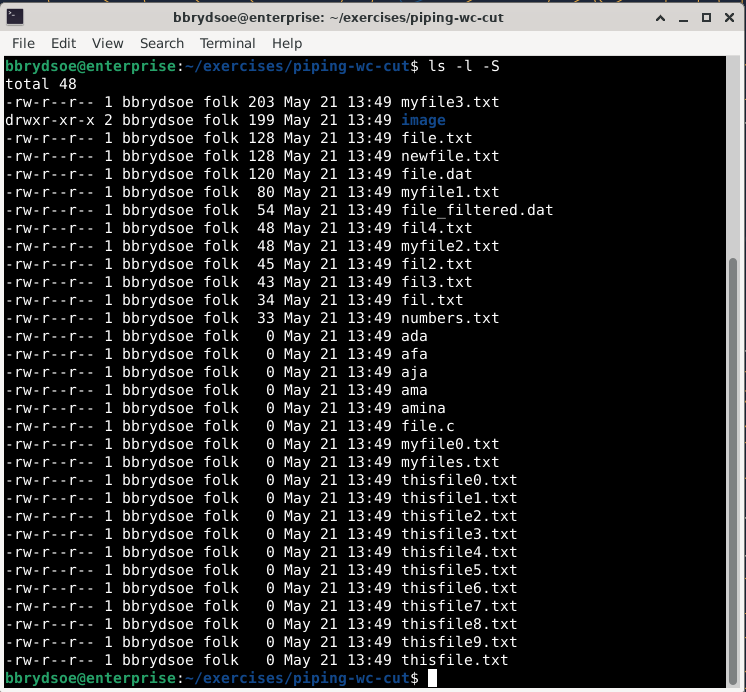

Of course, sorting files by size could also be done with ls -l -S but then you would have less control of how it was sorted (largest file first, sorted in lexicographical order).

ls-l-S

If you want to sort file size in reverse order you can do it like this:

$ ls -l -S | sort -k 5 n

Using one pipe: echo and sort

I write a couple lines which I echo, then I sort the output

$ echo "This is a line of text, which I am writing
> I am continuing to write another line
> and another line" | sort

It will look like this:

bbrydsoe@enterprise:~/exercises/piping-wc-cut$ echo "This is a line of text, which I am writing
> I am continuing to write another line
> and another line" | sort
and another line
I am continuing to write another line
This is a line of text, which I am writing

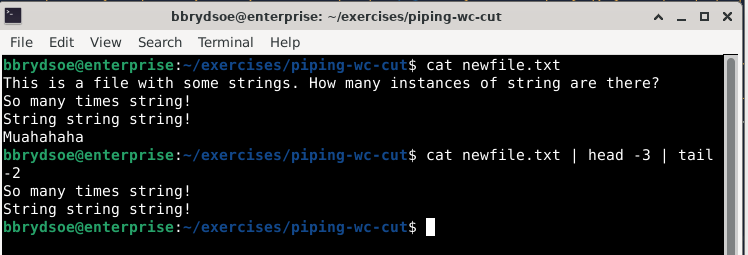

Using two pipes: head and tail to print lines in a specific range in a file

$ cat newfile.txt | head -3 | tail -2

Output (also showing the output of cat itself so you can see the file content):

cat-head-tail

Using two pipes: head and tail to print lines of the output from the ls command

ls | head -3 | tail -1

Output:

bbrydsoe@enterprise:~/exercises/piping-wc-cut$ ls
ada       fil4.txt           myfile0.txt  thisfile0.txt  thisfile7.txt
afa       file.c             myfile1.txt  thisfile1.txt  thisfile8.txt
aja       file.dat           myfile2.txt  thisfile2.txt  thisfile9.txt
ama       file_filtered.dat  myfile3.txt  thisfile3.txt  thisfile.txt
amina     file.txt           myfiles.txt  thisfile4.txt
fil2.txt  fil.txt            newfile.txt  thisfile5.txt
fil3.txt  image              numbers.txt  thisfile6.txt
bbrydsoe@enterprise:~/exercises/piping-wc-cut$ ls | head -3 | tail -1
aja
bbrydsoe@enterprise:~/exercises/piping-wc-cut$

Using two pipes: sort the output of tail on ls

$ ls -l | tail -14 | sort -n

Using more pipes: find, sort, tail

Here I find all the files with a name with suffix .txt, sort them, and then pick the last 4 in the sorted list:

find . -type f -name "*.txt" | sort | tail -4

Output:

bbrydsoe@enterprise:~/exercises/piping-wc-cut$ find . -type f -name "*.txt" | sort | tail -4
./thisfile7.txt
./thisfile8.txt
./thisfile9.txt
./thisfile.txt

Using more pipes: find, sort, head, tee

Here I find all the files with a name with suffix .txt, sort them, and then pick the first 4 in the sorted list, which I then use tee to send to a file (named list.txt) and also to output:

find . -type f -name "*.txt" | sort | head -4 | tee list.txt

Exercise¶

Sort (string numerical, in reverse) files ending in .txt
Print the 4 first lines of the list of files ending in .txt
Print the last 5 lines of the list of files ending in .txt and sort them, then print the first line of the output
Use echo to output 5 lines you write then use tail to print the last line.

Summary¶

As you have seen, pipe is a very useful operator, one which we will meet again in the later sections, combined with many commands and in scripts.

Keypoints

we learned about pipe
we tried using one or more pipes to combine commands
