Archiving¶

This section will cover compressing/decompressing files and directories. We will focus on (g)zip and tar.

Objectives

Questions

How do I compress and decompress files and directories under Linux?
How do I create an archive (tarball)?

Learning objectives

Learn about compressing and decompressing files and directories with gzip
Learn about archiving (creating a tarball) with tar

Compressing and decompressing - (g)zip¶

Compressing files on Linux are generally done with utilities like gzip, bzip2, or zip.

gzip¶

Compression utility designed as a replacement for compress, with much better compression and no patented algorithms. The standard compression system for all GNU software.

Note

gzip is the recommended compression system!

Common options:

-d: Decompress the file(s) instead of compressing them. Shortcut is gunzip
-r: Recursively compress/decompress directories and their contents.
-k: Keep the original file(s) after compression.
-v: Display verbose output, showing the compression ratio and other details.

Examples¶

Tip

Code along!

Use the files and folders in the directory “exercises” -> “arch”

Compress a file (also removes the uncompressed file)

gzip afile.txt

How it looks for me:

bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt
-rw-r--r-- 1 bbrydsoe folk 229 May 28 13:22 afile.txt
bbrydsoe@enterprise:~/exercises/arch$ gzip afile.txt
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt.gz
-rw-r--r-- 1 bbrydsoe folk 180 May 28 13:22 afile.txt.gz
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt
ls: cannot access 'afile.txt': No such file or directory
bbrydsoe@enterprise:~/exercises/arch$

The file “afile.txt” was compressed and the uncompressed file is removed.

Uncompress a file (also removes the compressed file)

gunzip afile.txt.gz

or

gzip -d afile.txt.gz

For me it looks like this (using gunzip):

bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt.gz
-rw-r--r-- 1 bbrydsoe folk 180 May 28 13:22 afile.txt.gz
bbrydsoe@enterprise:~/exercises/arch$ gunzip afile.txt.gz
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt
-rw-r--r-- 1 bbrydsoe folk 229 May 28 13:22 afile.txt
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt.gz
ls: cannot access 'afile.txt.gz': No such file or directory
bbrydsoe@enterprise:~/exercises/arch$

Compress a file (and keep the uncompressed file)

gzip -k afile.txt

How it looks for me:

bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt
-rw-r--r-- 1 bbrydsoe folk 229 May 28 13:22 afile.txt
bbrydsoe@enterprise:~/exercises/arch$ gzip -k afile.txt
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt
-rw-r--r-- 1 bbrydsoe folk 229 May 28 13:22 afile.txt
bbrydsoe@enterprise:~/exercises/arch$ ls -la afile.txt.gz
-rw-r--r-- 1 bbrydsoe folk 180 May 28 13:22 afile.txt.gz
bbrydsoe@enterprise:~/exercises/arch$

Compress all files in a directory

bbrydsoe@enterprise:~/exercises/arch$ ls dir2
dir4  myfile-new.txt  testfile3.txt  testfile4.txt
bbrydsoe@enterprise:~/exercises/arch$ gzip -r dir2
bbrydsoe@enterprise:~/exercises/arch$ ls dir2
dir4  myfile-new.txt.gz  testfile3.txt.gz  testfile4.txt.gz
bbrydsoe@enterprise:~/exercises/arch$ ls dir2/dir4/
bfile.txt.gz  cfile.txt.gz
bbrydsoe@enterprise:~/exercises/arch$

gunzip -r dir2 would then un-gzip all the files again.

Warning

gzip does not archive the files into one file, just compress them!

For archiving files, tar is your friend - often in combination with gzip. More about that soon!

bzip (optional)¶

bzip offers strong, lossless data compressor based on the Burrows-Wheeler transform. Also available as a library.

May compress better than gzip, but is slower.

Examples¶

We are not going to cover bzip more than to briefly give the most common usage.

Compress a file (also removes the uncompressed file)

bzip2 afile.txt

Uncompress a file (also removes the compressed file)

bunzip2 afile.txt.bz2

zip (optional)¶

zip is a simple compression and file packaging utility.

Note

The maximum size limit of a zip file is 4GB and if this size limit is exceeded, the file becomes prone to corruption. This further leads to failure of the extraction process and inaccessibility of your data.

Examples¶

Hint

Code along!

Again, use the files in “exercises” -> “arch”

Compressing afile.txt

zip afile.zip afile.txt

Output:

bbrydsoe@enterprise:~/exercises/arch$ zip afile.zip afile.txt
  adding: afile.txt (deflated 34%)

Uncompressing afile.zip

If the file already exists, zip will ask if you want to replace or rename

unzip afile.zip

Output:

bbrydsoe@enterprise:~/exercises/arch$ unzip afile.zip
Archive:  afile.zip
replace afile.txt? [y]es, [n]o, [A]ll, [N]one, [r]ename: r
new name: afile-copy.txt
  inflating: afile-copy.txt

Compress all files in one directory to a single archive file

zip -r dir1.zip dir1/

Output:

bbrydsoe@enterprise:~/exercises/arch$ zip -r dir1.zip dir1
  adding: dir1/ (stored 0%)
  adding: dir1/testfile (stored 0%)
  adding: dir1/testfile.txt (stored 0%)
  adding: dir1/testfile2.txt (deflated 2%)
bbrydsoe@enterprise:~/exercises/arch$ ls dir1.zip
dir1.zip

Compress all files of a certain type in the current directory (and in directories under this) to a single archive file

In this example case for all .c files

zip -r my_c_files.zip . -i \*.c

Output:

bbrydsoe@enterprise:~/exercises/arch$ zip -r my_c_files.zip . -i \*.c
  adding: morefile.c (stored 0%)
  adding: C/Adding2.c (deflated 31%)
  adding: C/Greeting.c (stored 0%)
  adding: C/hello.c (stored 0%)
  adding: C/mpi_greeting.c (deflated 35%)
  adding: C/mpi_hello.c (deflated 35%)
  adding: C/mpi_hi.c (deflated 36%)
  adding: C/Mult2.c (deflated 33%)
  adding: C/omp_hello.c (deflated 58%)

Archiving - tar¶

Archiving is generally done with tar.

This program saves many files together into a single archive file (concatenates them), and it also restores individual files from the archive. Automatic archive compression/decompression options exists (with various different compression utilities), as well as special features that allow tar to be used for incremental and full backups.

The command tar --help will give the format (defaults to gnu). This is generally only important for files larger than 8 GB.

tar was originally developed for magnetic tape storage – reading and writing data for a sequential I/O device with no file system, and the name is short for the format description “tape archive”.

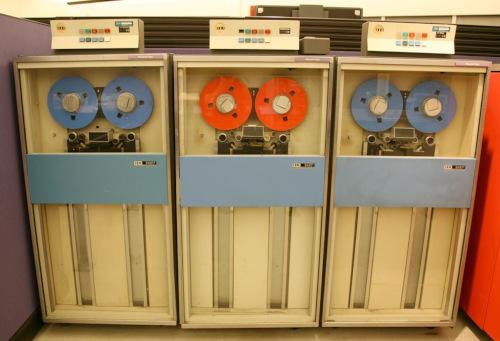

IBM 2401 magnetic tape storage

Note

A tarball is a commonly used name to refer to an archive file in the tar (Tape Archive) format.

A tarball can be compressed with something like gzip or bzip2. There are options/flags to do this automatically with tar.

Syntax¶

tar [-options] <name of the tar archive> [files or directories which to add into archive]

Basic options¶

-c, –create - create a new archive
-a, –auto-compress - additionally compress the archive with a compressor which will be automatically determined by the file name extension of the archive. If the archive’s name ends with .tar.gz then use gzip, if .tar.xz then use xz, *.tar.zst for Zstandard etc.
-r, –append - append files to the end of an archive
-x, –extract, –get - extract files from an archive
-f, –file - specify the archive’s name
-t, –list - show a list of files and folders in the archive
-v, –verbose - show a list of processed files

Examples¶

Hint

Code along!

Again use the files and folders under “exercises” -> “arch”

Generate a tarball

tar -cvf arch.tar arch/

Output:

bbrydsoe@enterprise:~/exercises/arch$ cd ..
bbrydsoe@enterprise:~/exercises$ tar -cvf arch.tar arch/
arch/
arch/myfile.txt
arch/thisfile.txt
arch/morefile.c
arch/dir1/
arch/dir1/testfile
arch/dir1/testfile.txt
arch/dir1/testfile2.txt
arch/dir2/
arch/dir2/dir4/
arch/dir2/dir4/bfile.txt
arch/dir2/dir4/cfile.txt
arch/dir2/testfile3.txt
arch/dir2/myfile-new.txt
arch/dir2/testfile4.txt
arch/dir3/
arch/dir3/dfile.txt
arch/dir3/efile.txt
arch/dir3/ffile.txt
arch/afile.txt
arch/afile.zip
arch/afile-copy.txt
arch/dir1.zip
arch/C/
arch/C/Adding2.c
arch/C/Greeting.c
arch/C/hello.c
arch/C/mpi_greeting.c
arch/C/mpi_hello.c
arch/C/mpi_hi.c
arch/C/Mult2.c
arch/C/omp_hello.c
arch/my_c_files.zip
bbrydsoe@enterprise:~/exercises$ ls -al arch.tar
-rw-r--r-- 1 bbrydsoe folk 40960 May 28 14:27 arch.tar

Extracting the files from a tarball

tar -xvf arch.tar

Warning! If there is already a directory with the same name in the directory you do this, it will overwrite without asking!

Generate a tarball and compress it with gzip

tar -zcvf arch.tar.gz arch/

Output:

bbrydsoe@enterprise:~/exercises$ tar -zcvf arch.tar.gz arch/
arch/
arch/dir1/
arch/dir1/testfile
arch/dir1/testfile.txt
arch/dir1/testfile2.txt
arch/dir2/
arch/dir2/dir4/
arch/dir2/dir4/bfile.txt
arch/dir2/dir4/cfile.txt
arch/dir2/testfile3.txt
arch/dir2/myfile-new.txt
arch/dir2/testfile4.txt
arch/dir3/
arch/dir3/dfile.txt
arch/dir3/efile.txt
arch/dir3/ffile.txt
arch/C/
arch/C/Adding2.c
arch/C/Greeting.c
arch/C/hello.c
arch/C/mpi_greeting.c
arch/C/mpi_hello.c
arch/C/mpi_hi.c
arch/C/Mult2.c
arch/C/omp_hello.c
arch/myfile.txt
arch/thisfile.txt
arch/morefile.c
arch/afile.txt
arch/afile.zip
arch/afile-copy.txt
arch/dir1.zip
arch/my_c_files.zip
bbrydsoe@enterprise:~/exercises$ ls -la arch.tar.gz
-rw-r--r-- 1 bbrydsoe folk 4500 May 28 14:44 arch.tar.gz

Compared to the size of the uncompressed tarball:

bbrydsoe@enterprise:~/exercises$ ls -al arch.tar
-rw-r--r-- 1 bbrydsoe folk 40960 May 28 14:27 arch.tar

Uncompressing and extracting files from a tarball

tar -zxvf arch.tar.gz

Warning! If there is already a directory with the same name in the directory you do this, it will overwrite without asking!

Summary¶

Keypoints

we learned about gzip, bzip2, and zip
we learned about tarballs and compressed tarballs
