Regular expressions and grep

Need a video?

Learning outcomes

  • Learners know there are multiple flavours of regular expressions
  • Learners can use ., *, +, ?, [], [^], {}, () in regular expressions
  • Learners can use grep
  • Learners have practiced using the grep manual
  • Learners can use grep to search for a regular expression
  • Learners can send text to grep using a pipe
  • (optional) Learners have seen the flexibility of grep
For teachers

Lesson plan:

Time Minutes Duration Description
10:20-10:30 0-10 10 Prior
10:30-10:35 10-15 5 Present
10:35-10:55 15-35 20 Challenge
10:55-11:05 35-45 10 Feedback and conclusion

Prior:

  • How would tell an alien how a human name is made up out of English characters?
  • And a human phone number?
  • Are there more things that have certain features like that?
  • What is a regular expression?
  • What is grep?
  • What is GNU?
  • In the context of software, what is a parser?
  • In the context of command-line tools, what is a filter?

Why use regular expressions?

Regular expressions are used to filter for text that contains a pattern, such as a first name, a last name, a phone number, etc.

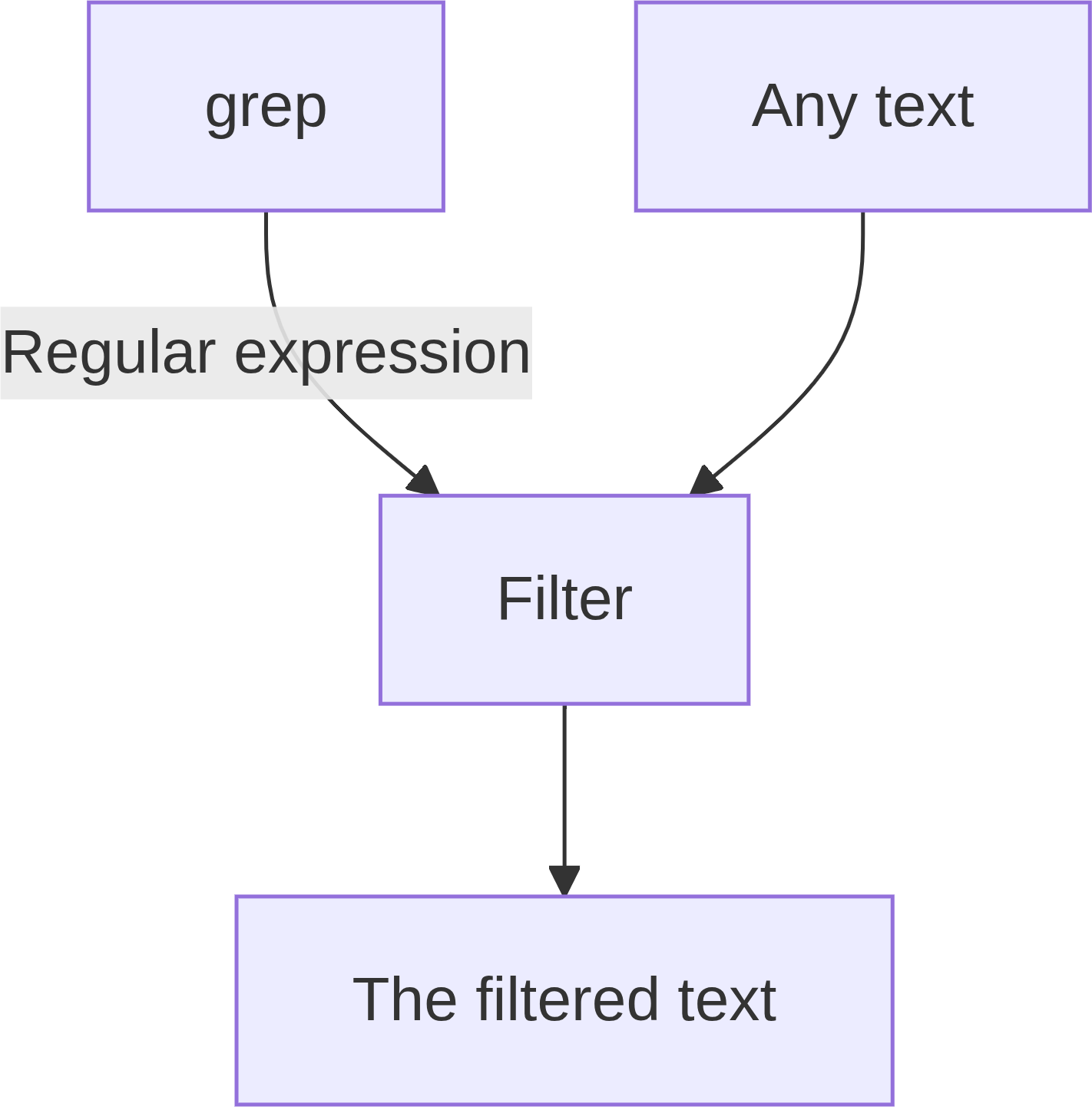

What regular expressions are used for

Why use grep?

The tool grep comes installed with Linux.

Exercises

Exercise 1: use the grep manual

In this exercise, we’ll use the grep manual.

Exercise 1.1: view the grep manual

View the grep manual.

Tip: man is the command to view a manual.

Answer

In the terminal, type:

man grep

Use the arrow keys to navigate and q to quit

Exercise 1.2: what does grep do?

According to the grep manual, in a one-liner, what does grep do?

Tip: it is at the top.

Answer

grep is a tool to ‘print lines that match patterns’ It is in the fourth line:

NAME
       grep, egrep, fgrep, rgrep - print lines that match patterns

Exercise 1.3: what are the other greps?

In the fourth line of the grep manual, the grep-like tools egrep, fgrep and rgrep are mentioned. What are these?

Tips:

  • it is in the first two screens.
  • The first part of the answer can be found in the DESCRIPTION section,
  • The second part of the answer can be found in the OPTIONS | Pattern syntax section
Answer

The first part of the answer is in the description:

DESCRIPTION
       grep  searches  for  PATTERNS  in  each  FILE. [...]

       [...]

       Debian also includes the variant programs egrep, fgrep and rgrep.  These programs
       are the same as grep -E, grep -F, and grep -r, respectively.
      [...]

Searching for -E, -F and -r takes us to the ‘OPTIONS | Pattern Syntax’ subsection:

Pattern Syntax
   -E, --extended-regexp
          Interpret PATTERNS as extended regular expressions [...].

   [...]

   -G, --basic-regexp
          Interpret  PATTERNS  as basic regular expressions [...].

   -P, --perl-regexp
          Interpret PATTERNS as Perl-compatible regular expressions [...].

We can conclude from this that the different greps have different types of regular expressions, such as a regular, extended and Perl-compatible regular expressions.

Exercise 2: use grep with a pipe

In this exercise, we use grep with a pipe.

Exercise 2.1: read a command that has a grep with a pipe

How would you explain the command below in English? Use ‘some regular expression’ if you see a regular expression.

man grep | grep "^[A-Z]"
Answer

The manual of grep, send it to grep and let it filter for some regular expression.

Exercise 2.2: run a command that has a grep with a pipe

Run the command above. What does it show on screen? What did that regular expression do?

Answer

This is what is shown on screen:

$ man grep | grep "^[A-Z]"
GREP(1)                               User Commands                              GREP(1)
NAME
SYNOPSIS
DESCRIPTION
OPTIONS
REGULAR EXPRESSIONS
EXIT STATUS
ENVIRONMENT
NOTES
COPYRIGHT
BUGS
EXAMPLE
SEE ALSO
GNU grep 3.11                          2019-12-29                                GREP(1)

It shows all lines that start with an uppercase character.

Exercise 3: practice regular expressions

Go to https://www.regexone.com/ and do lessons 1 to (and including) 11.

Overview of these lessons

Here is an overview of the regular expression patterns in each lesson:

Lesson Pattern
1 None
1.5 \d
2 .
3 []
4 [^]
5 [A-Z]
6 {}
7 * (Kleene star) and + (Kleene plus)
8 ?
9 \s
10 ^
11 ()

(optional) Exercise 4: can grep do …?

Here we’ll experience the flexibility of grep. Pick those topics you are interested in.

(optional) Exercise 4.1: Can grep do a case-insensitive match?

Can grep do a case-insensitive match?

The answer is: yes!

Use the grep manual to answer this question.

Answer

Yes.

The --ignore-case allows you to let grep do a case-insensitive search.

For example, in the command below, the word ‘options’ is searched in the manual in a case-insensitive manner.

$ man grep | grep --ignore-case "options"
OPTIONS
              use -i, to cancel its effects because the two options override each other.
              options that prefix their output to the actual content: -H,-n, and -b.  In
              options are given, the  last  matching  one  wins.   If  no  --include  or
              --exclude  options  match, a file is included unless the first such option
   Other Options
              other GNU programs.  POSIX requires that options that  follow  file  names
              must  be  treated  as file names; by default, such options are permuted to
              the front of the operand list and are treated  as  options.   Also,  POSIX
              requires  that  unrecognized  options be diagnosed as “illegal”, but since
       treats expansions of “*g*.h” starting with “-” as file names not options, and the
(optional) Exercise 4.2: Can grep show the lines that do not match?

Can grep show the lines that do not match?

The answer is: yes!

Use the grep manual to answer this question.

Answer

Yes.

The --invert-match allows you to let grep show lines that do not match.

For example, in the command below, the grep manual is search for lines that do not have a space.

man grep | grep --invert-match " "
(optional) Exercise 4.3: Can grep detect lines in multiple files?

Can grep detect lines in multiple files?

The answer is: yes!

Use the grep manual to answer this question.

Answer

Yes.

The --recursive allows you to let grep search in multiple files.

For example, in the commands below, the folder /etc is searched for files that contain the text ‘ubuntu’:

cd /etc
grep --recursive "ubuntu"
(optional) Exercise 4.4: Can grep detect which files contain a match?

Can grep detect which files contain a match?

The answer is: yes!

Use the grep manual to answer this question.

Answer

Yes.

The --files-with-matches allows you to let grep output which files contained a match.

For example, in the commands below, the folder /etc is searched for files that contain the text ‘ubuntu’, showing the files in which a match is found:

cd /etc
grep --recursive --files-with-matches "ubuntu"
(optional) Exercise 4.5: Can grep detect which files-with-a-certain-extension contain a match?

Can grep detect which files-with-a-certain-extension contain a match?

The answer is: yes!

Use the grep manual to answer this question.

Answer

Yes.

The --include allows you to let grep only include files in its

For example, in the commands below, the folder /etc is searched in configuration (.conf) files that contain the text ‘ubuntu’.

cd /etc
grep --recursive "ubuntu" --include "*.conf"
For teachers

How many regular expression dialects exist?

Answer

At least 3:

  • grep (basic)
  • egrep (extended)
  • pgrep (Perl-like)

We have sent the grep manual to grep using a pipe. Can we use any text?

Answer

Yes: the grep manual is just text like any other.

Can we send the output of grep to grep?

Answer

Yes: the grep output is just text like any other.

What is a Kleene star and what does it do?

Answer

The Kleene star is the regular expression pattern *. In English it would be read as: ‘the thing before it repeated at least zero times’.

What is the difference between [^A-Z] and ^[A-Z]?

Answer

The first regular expression means: ‘All characters, except all uppercase letters’.

The second regular expression means: ‘At the start of a line, any uppercase letter’.

What is regular expression for ‘any line of text’ (including empty ones)?

Answer

The regular expression for ‘any line of text’ is .*, as . means ‘Any character’ and * means ‘repeated at least zero times’.

Why does man grep | grep .* not work, where man grep | grep ".*" does?

Answer

The double-quotes assure that the regular expression patter .* is read as such.

The ‘naked’ .* is a bash expression of ‘all hidden files’, as hidden files start with a . (e.g. ls .*). This meaning can change depending on context (e.g. cat .*).

Knowing that grep --ignore-case ignores case, and grep --invert-match inverts the match (i.e. showing non-matching lines), how to combine these in the same command?

Answer

Write these one after the other:

grep --ignore-case --invert-match

For example, the command below shows all lines in the grep manual that do not have the lower-case, nor upper-case letters ‘a’ to (and including) ‘f’.

man grep | grep --ignore-case --invert-match "[a-f]"

Conclusions

Conclusions

  • grep is used for pattern matching
  • grep has a useful manual
  • grep is a filter
  • grep works well with pipes
  • There are multiple regular expression dialects
  • The pattern ., [] and [^] are used to (not) match a (set of) characters
  • The pattern *, +, ? and {} are used to indicate an amount
  • The pattern () is used to capture a set of a match
  • (optional) grep can do a lot of different things

Next session

Next session

  • grep is not a programming language: use awk instead.
