Efficient jobs

Learning outcomes

• Practice using the UPPMAX documentation
• I can see the CPU and memory usage of jobs
• I can read a jobstats plot
• I can create a jobstats plot
• I understand how to set up jobs efficiently

Want to see this session as a video?

Watch the YouTube video 'Intermediate Bianca workshop: efficient jobs'.

For teachers

Teaching goals are:

• Learners have practiced using the UPPMAX documentation
• Learners have seen the CPU and memory usage of jobs
• Learners have read a jobstats plot
• Learners have created a jobstats plot
• Learners have discussed how to set up jobs efficiently

Lesson plan:

gantt
  title Efficient jobs
  dateFormat X
  axisFormat %s
  section First hour
  Course introduction: done, course_intro, 0, 10s
  Prior : intro, after course_intro, 5s
  Present: theory_1, after intro, 5s
  Challenge: crit, exercise_1, after theory_1, 40s
  Break: crit, milestone, after exercise_1
  section Second hour
  Challenge: crit, exercise_2, 0, 10s
  Feedback: feedback_2, after exercise_2, 10s
  SLURM: done, slurm, after feedback_2, 25s
  Break: done, milestone, after slurm

Prior questions:

• How to schedule jobs efficiently?
• What is the jobstats tool?

Present:

• ?Show documentation

Why?

Quote from the UPPMAX documentation

If everyone would use our computational resources effectively, there would be no queue.

From the UPPMAX documentation, original source unknown

Running efficient jobs allows you to run more jobs that start running faster.

What are efficient jobs?

Here we define an efficient job as a job that makes good use of memory and processing power.

Each core you book gives both memory and processing power.

What is the relation between node, CPU and core again?

Here is a simplified picture of HPC cluster architecture:

flowchart TD
  subgraph hpc_cluster[HPC cluster]
    subgraph node_1[Node]
      subgraph cpu_1_1[CPU]
      core_1_1_1[Core]
      end
    end
  end

Term	What it loosely is	Amount
Core	Something that does a calculation	One or more per CPU
CPU	A collection of cores that share the same memory	One or more per node
Node	A collection of CPUs that share the same memory	One or more per HPC cluster
HPC cluster	A collection of nodes	One or more per universe
The universe [1]	A collection of HPC clusters	One

• [1] this is a pun to distributed parallelism

Booking too many cores for memory is a reasonable thing to do

Memory is the most important resource of the two: if you schedule too little memory, your calculation will crash. This is worse than that your calculation will take longer. You have already found out how much memory your calculations need by trial-and-error :-) . You have probably been pragmatic and booked too much cores, just to make sure that it works: which is fine! In this session, we'll visualize how much cores you actually need to book, so that you can confidently book less cores per job, so that you can do more calculations that will start faster!

Here is a visualisation of a user that booked too many cores:

Booking more cores for quicker calculation speed may be useless

Programs can sometimes use multiple cores to speed up its calculation. The idea is to let multiple cores each do their own part of the total calculation. Such programs are called 'programs that allow parallel computation'. In this session, I call these multithreaded programs (a simplification that is not entirely technically correct). Where multithreaded programs can use multiple cores, singlethreaded program cannot. For singlethreaded programs, booking more cores to speed up the calculation is useless.

There are multiple ways to find out if a program can use multiple cores:

• Measure the number of cores used during a calculation (which is what we will do in this session)
• Read the documentation of the program
• Measure the speed increase by using multiple cores. This is called benchmarking. When a benchmark shows that there is no speed increase for multiple cores, it can be concluded that the program cannot use multiple cores.

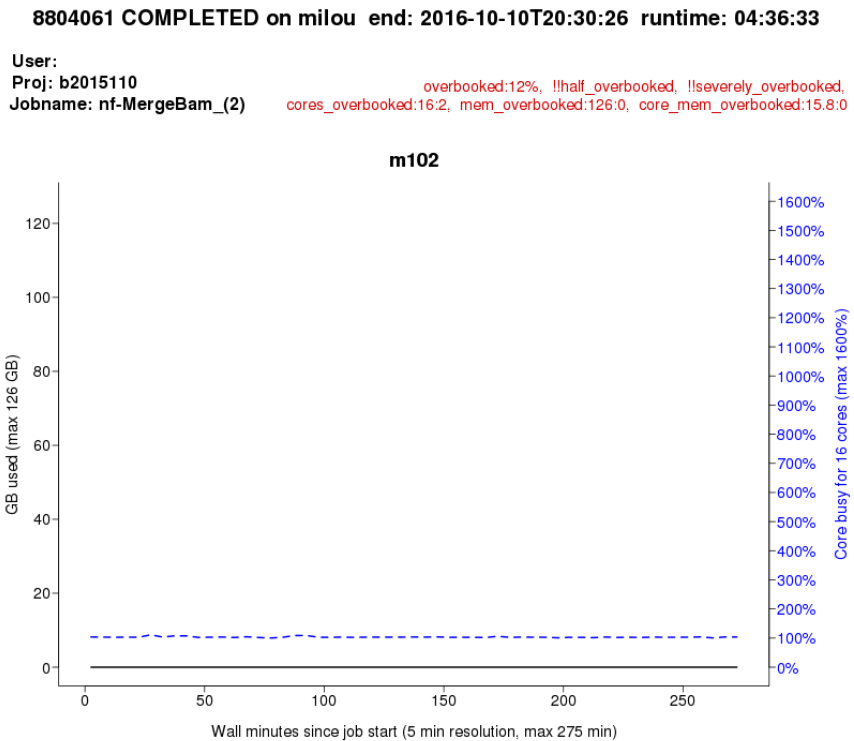

Here is a visualisation of a user that booked multiple cores for a singlethreaded program:

Booking more cores for quicker calculation speed may be wasteful

The most efficient use of core hours is having 1 core working on a calculation:

• The 1 core never needs to ask other cores if they are done
• The 1 core is never waiting for other cores to finish

If we book more cores to work on the same calculation there is overhead:

• The main core need to ask other cores if they are done
• Some cores need to wait for other cores to finish their part of the calculation

Overhead is wasted resources, hence you want to have overhead for the right reasons. Good reasons are:

• You are in a hurry, so you need the calculation to go faster
• Your calculation takes 11 days, where Bianca allows jobs of maximimal 10 days. Instead of dealing with an interruption, booking an extra core may solve the problem

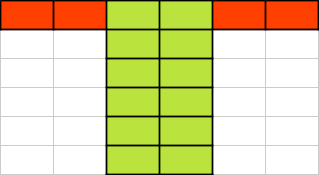

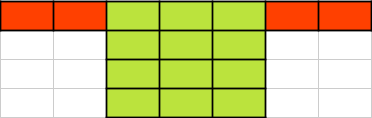

When booking more cores -say twice as much- your program will not go twice as fast. Below is a table of a worked-out example giving some numbers:

Program runtime	Number of cores	Time	Speedup	Efficiency
	1	16	100%	100%
	2	10	160%	80%
	3	8	200%	60%
	4	7	229%	48%
	6	6	267%	33%
.	12	5	320%	18%
.	24	4.5	356%	9%
.	48	4.25	376%	5%

The details behind this table can be found at the 'Parallel computing' session of the R-MATLAB-Julia course.

Exercises

Exercise 1: use cases

Question 1

For your research project, you need to run a lot of calculations. Each calculation takes 10 hours. How do you make optimal use of your computational resources?

Answer

Run the calculation on a single core for 100% efficiency

Question 2

For your research project, you also have a calculation that takes 11 days. Your HPC cluster allows a calculation of at most 10 days. Assume your HPC center will not extend your job (they will probably do so when asked: we are there to help!). How do you make optimal use of your computational resources?

Answer

If your calculation already has parallelism built-in, then run the calculation on two cores: this only involves changing your Slurm script, with a low loss of computational resources.

If you are a really tight on computational resources, you can implement a 'save state' in your calculation, so that you can schedule two runs of nine days in succession, each with 100% efficiency.

Alternatively, you can added thread parallelism to allow running with multiple cores.

Question 3

Your colleague runs many jobs with a lot of cores. 'It is way faster!', he/she states. That same colleague, however, also complains about long waiting times before his/her jobs start. How would you explain this situation?

Answer

The colleague used up (or: 'wasted') all his/her computational resources (commonly 10,000 core hours per month on UPPMAX).

Due to this, his/her jobs are only run when the HPC cluster has a low workload and activates the so-called 'bonus queue' (UPPMAX) or generally have to wait for their priority to go up again.

Question 4

Your colleague needs to finish his/her analysis quickly and starts scheduling multiple cores for his/her jobs. After some measurements, he/she concludes that the calculation does not finish faster at all. How would you explain this situation? What would you advise him/her?

Answer

The colleague is trying to run a singlethreaded calculation, i.e. a calculation that cannot use multiple cores.

You should advise to go back to scheduling single-core jobs directly, to prevent his/her jobs from being in the queue longer.

Question 5

You are using a program that is known to be single-threaded. You does not want to schedule more cores than needed. However, you know that you need to schedule 10 cores for the program to run at all. Is there a way you can use your computational resources more efficiently?

Answer

No.

If you need 10 cores for the memory it provides, than that is what is needed.

Sure, 9 core are not helping with the calculation at all, which is acceptable here.

Question 6

For years, you have been using a pipeline with multiple steps that use different tools. Some of these tools recommend to use 16 cores, so you have booked 16 cores for the whole process.

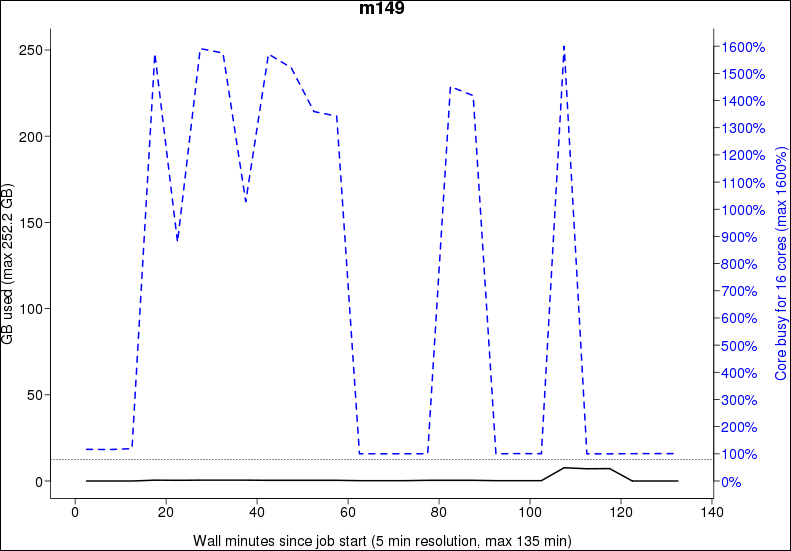

Due to this session, you decided to measure the job statistics of this job and you find the following graph:

After seeing this graph, how much course will you book in the future?

Answer

If you want to make best use of your core hours, use 1 core: the calculation takes around 130 minutes by 16 cores. Assuming that on average 8 cores are actually doing work, this calculation will then take 130 minutes * 8 cores less = 1040 minutes for 1 core = around 18 hours.

If you want to be a bit faster, use between 2-8 cores, as the calculation uses 8 cores on average. Using 8 cores here is reasonable use.

Exercise 2: creating a jobstats plot

We are going to create a jobstats plot. For that, we need a job to plot. Here we first look for a job, after which we plot it.

• Scan the UPPMAX finishedjobinfo documentation
• Log in to your own Bianca project where you have had a run of at least 1 hour
• Find a job that has finished successfully that took longer than one hour (if there is none, use the job the ran longest)

Answer

From the UPPMAX finishedjobinfo documentation, here is a code snippet to find jobs that have completed and took longer than an hour:

finishedjobinfo | grep -E "runtime.([0-9]-)?[0-9][1-9]"

If there is no job that is long enough, use:

finishedjobinfo | grep COMPLETED

Look for a job that has a high runtime value, such as the one below. The runtime must be above 5 minutes for this to work.

2025-11-17 13:21:38 jobid=368 jobstate=COMPLETED username=richel account=sens2025560 nodes=sens2025560-b9 procs=1 partition=core qos=normal jobname=do_r_2d_integration.sh maxmemory_in_GiB=0.1 maxmemory_node=sens2025560-b9 timelimit=02:00:00 submit_time=2025-11-17T13:15:31 start_time=2025-11-17T13:15:52 end_time=2025-11-17T13:21:38 runtime=00:05:46 margin=01:54:14 queuetime=00:00:21

Press CTRL-C to stop the process: it will take very long to finish.

• Read the UPPMAX jobstats documentation, create a jobstats plot of that job

Answer

Here is the general answer:

jobstats --plot [job_id]

For example:

jobstats --plot 368

• jobstats has created a plot and saved it as file bianca-[project_name]-[username]-[job_id].png, for example, bianca-sens2025560-sven-368.png. Download the jobstats plot and view it.

Answer

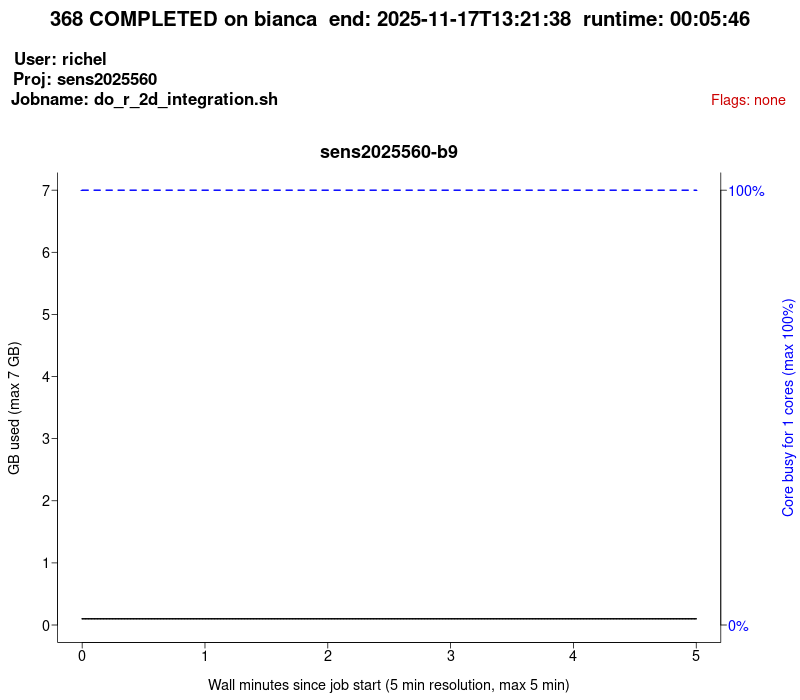

Here is an example plot:

• Was that a job that was set up well? If not, how should it be setup? Why?

Answer

We don't know. The user uses all CPU power perfectly and there is enough memory available.

The user may benefit from more CPUs, as the program may be CPU limited.

It may be that the program used is designed to use all the scheduled cores maximally, hence scheduling that amount of cores is perfect!

It may be that using less cores is a strategy of the user: using multiple cores always brings computational overhead and hence wasted CPU resources.

• Does the quote at the start of this sessions ('If everyone would use our computational resources effectively, there would be no queue') apply to the job you just investigated?

Answer

No.

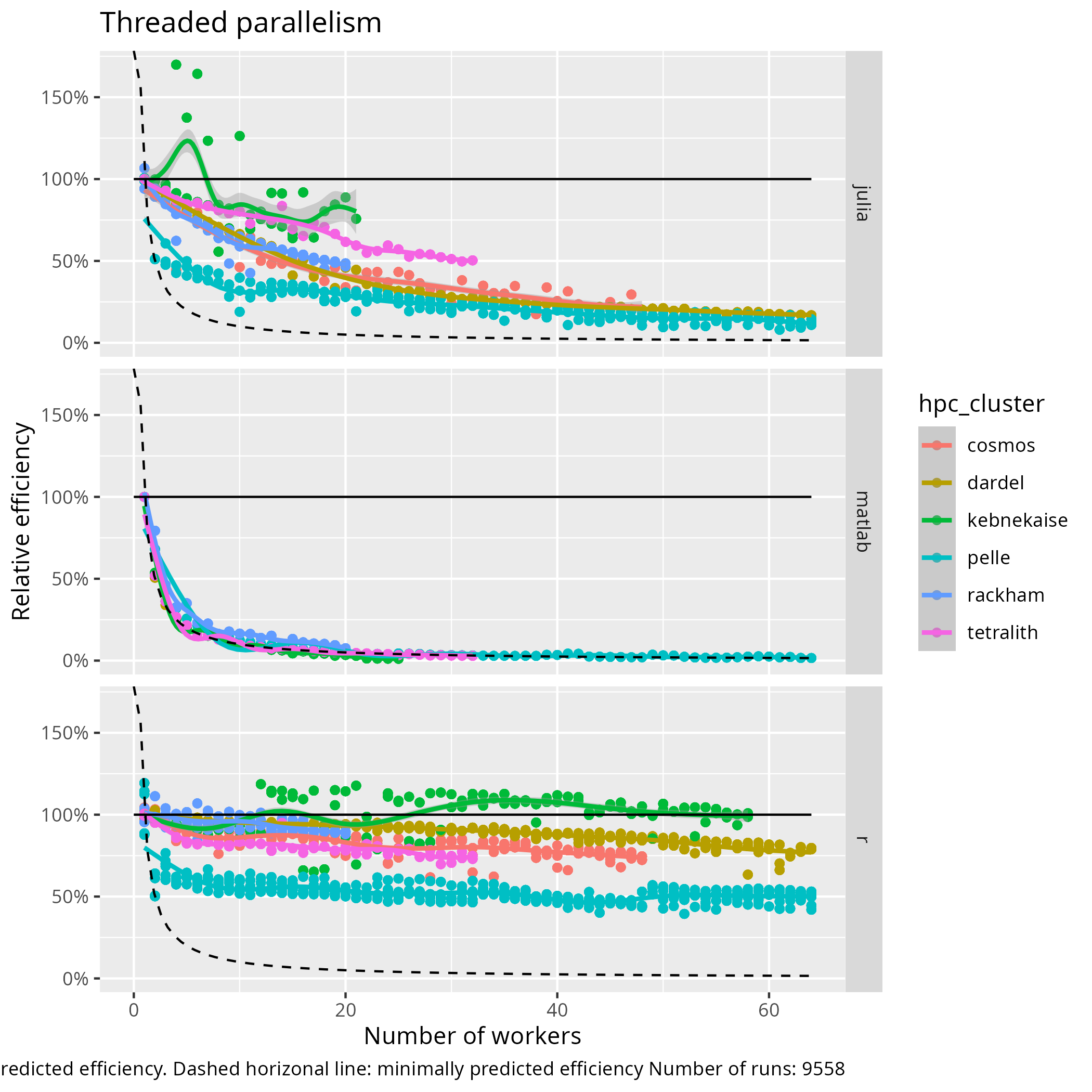

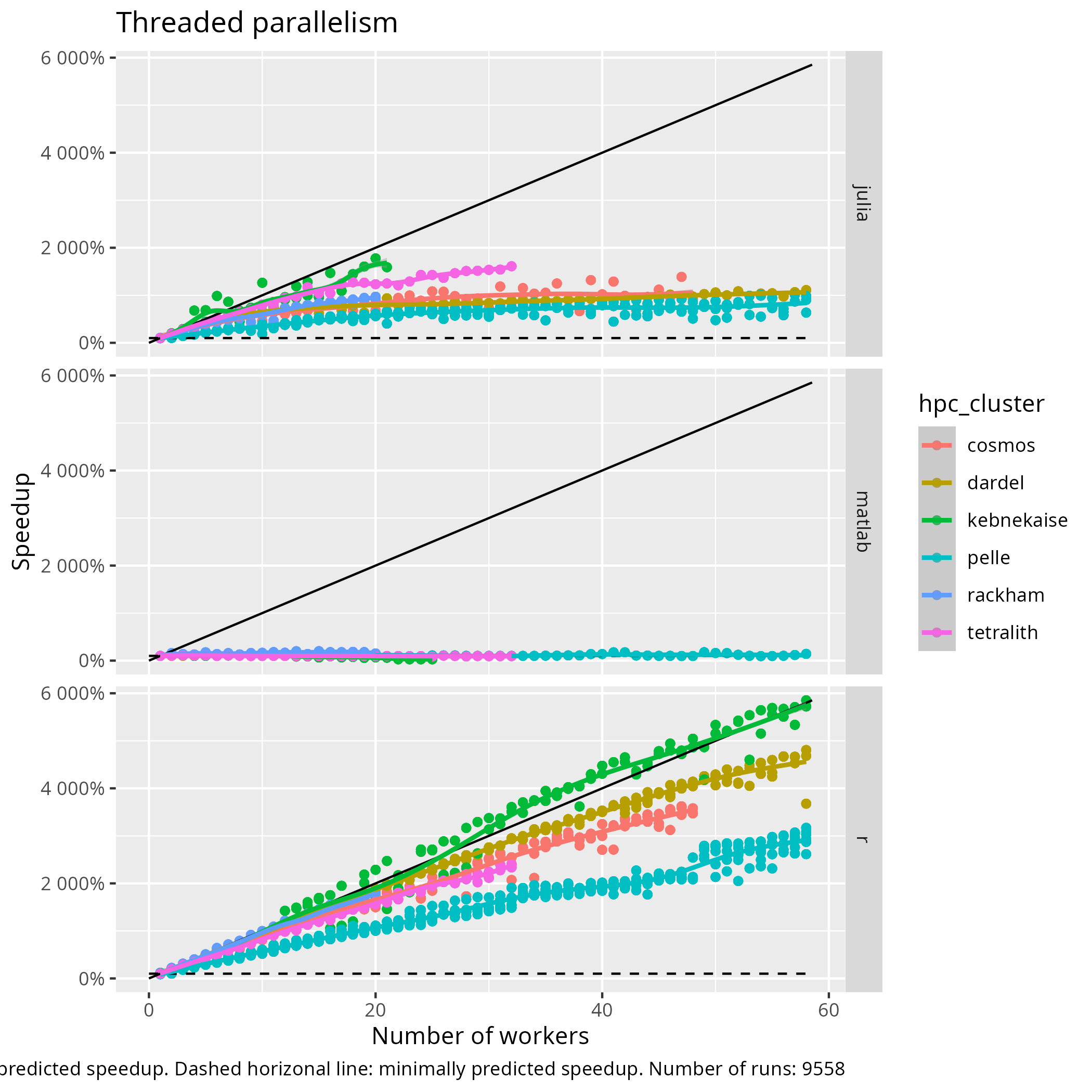

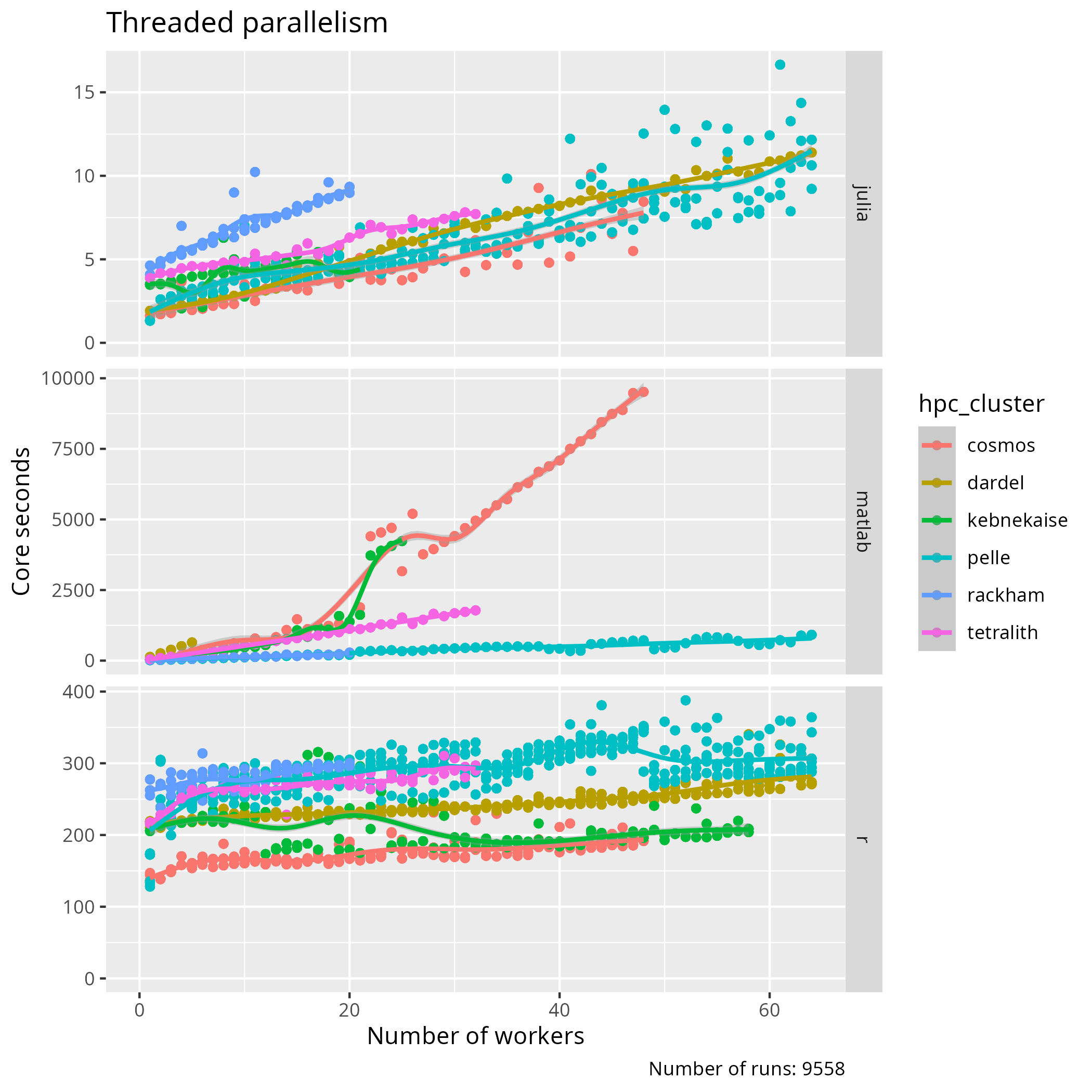

How was the example plot generated?

Using the benchmark script from the R-Julia-MATLAB course, session 'thread parallelism'.
