Introduction to compute nodes¶

Learning outcomes

This is a short introduction in how to reach the calculation/compute/worker nodes
Know when to run interactive and when to use batch system
Run interactively on compute nodes
Run simple jobs
Plan your jobs
Check the progress of your jobs
Use the UPPMAX documentation

Notes for teachers

Teaching goals:

The learners demonstrate to have run in interactive
The learners demonstrate to have run batch job
The learners demonstrate to have understood when to use batch or interactive
The learners demonstrate to have understood how to plan for jobs

Schedule (50 minutes):

10 minutes: lecturing
5 minutes type-alongs ??
20 minutes: exercise + quiz
5 minutes: discuss answers

Why?¶

You would want to use the compute capabilities on an HPC cluster
You may on one hand want to work interactively with your data
You may need to use much compute resources but can let this be done in the background

Nodes and cores¶

What are those?

Bianca contains hundreds of nodes.
Each node is like a ordinary computer without a screen.
One Bianca node consists of 16 cores.
Each core can do work more or less independently.
- On a cluster, like Bianca, a thread (sequence of programmed instructions) typically occupies one core.

There are two types of nodes:

Type	Purpose
Login node	Start jobs for worker nodes and do easy things. \n You share 2 cores and 15 GB RAM with active users within your SENS project.
Compute nodes	Do hard calculations, either from scripts or an interactive session

Principle

Our nodes on Bianca have this principle

node principle

Bianca have this principle

nodes principle

Slurm schedules and allocates compute resources for you¶

Problem: 1000 users, 300 nodes, 5000 cores
We need a queue system:
- Slurm is a job scheduler

Two ways to allocate compute resources¶

Work interactively with your data or develop or test
- Run an Interactive session
- Typical use cases: Run RStudio/matlab/stata
If you don't need any live interaction with your workflow/analysis/simulation
- Send your job to the slurm job batch (sbatch)

Decision maker

flowchart TD
    UPPMAX(What to run on which node?)
    operation_type{What type of operation/calculation?}
    interaction_type{What type of interaction?}
    login_node(Work on login node)
    interactive_node(Work on interactive node)
    calculation_node(Schedule for calculation node)

    UPPMAX-->operation_type
    operation_type-->|light,short|login_node
    operation_type-->|heavy,long|interaction_type
    interaction_type-->|Direct|interactive_node
    interaction_type-->|Indirect|calculation_node

What is a job

Job = what happens during booked time

Allocation flags/Slurm parameters¶

Example

interactive -A sens2025560 -p core -n 4 -t 0:30:0

Slurm Cheat Sheet

-A project number (mandatory)
-t wall time (estimated maximum time of job) (Default is 1 min only)
-n number of cores (Default is 1)
-N number of nodes (can only be used if your code is parallelized with MPI)
-p partition
- core is default and works for jobs narrower than 16 cores
- node can be used if you need the whole node and its memory
- for short development jobs and tests: devcore, devel)

If in doubt:
- -p core
- -n 1, for Rstudio -n 2
- -t 10-00:00:00 (10 days)

Interactive jobs¶

Tip

When to use?
- For development and programs that need responsiveness
Pros
- Interactive jobs are high-priority
- Quickly gives you a job and logs you in to the compute node
- You run play with your data and do graphical analysis in real-time
- You can develop and test your coming workflows to be run later as perfect batch jobs with larger data.

Warning

When to not use?
- Most work is most effective as submitted jobs (batch)
Cons
- Limited to 12 hours (?) and 2 nodes (32 cores)
- CPU hours are ticking all the time the session is active, even if you do not perform any work

Procedure for interactive jobs¶

Log in to compute node via the terminal:

interactive -A [project name] -p core -n [number_of_cores] -t [session_duration]

Do some work!
Log out with <Ctrl>-D or logout

For example:

interactive -A sens2025560 -p core -n 2 -t 8:0:0

This starts an interactive session using project sens2025560 that uses 2 cores and has a maximum duration of 8 hours.

Documentation

Starting an interactive session on Bianca

Tip

(Re-)load modules in an interactive session
Check your working directory, pwd. You are not automatically coming to ~ or you project folder.

Job scripts (batch)¶

A batch job is an instruction you give the job scheduler to perform.
when submitted you will get a "job-id"
The instruction is settled/finally defined when it has been sent to the job scheduler.
- you can though cancel <job-id> the job, if you find out that you missed anything

Typical content of batch script

Slurm parameters (flags)
Load software modules
(Navigate in file system)
Run program(s)
(Collect output)
(... and more)

Tip

When to use?
- Finished (and tested) automatic workflows where no interaction is needed
Pros
- Very effective on CPU hours
- Ends when the job is done
  - or if something goes wrong (hopefully)

Warning

When not to use?
- When you need to interact or adjust settings during run
Cons
- You have no interaction

Procedure for batch jobs¶

Batch scripts can be written in any scripting language. We will use bash
Therefore, let the first line be #!/bin/bash -l

Why -l

It is good practice to end the line with -l to reload a fresh environment with no modules loaded.
This makes you sure that you don't enable other software or versions that may interfere with what you want to do in the job.

Before the job content, add the batch flags starting the lines with the keyword #SBATCH, like:
- #SBATCH -A sens2025560

Why initial#

# will be ignored by bash and can run as an ordinary bash script
If running the script with the command sbatch <script> the #SBATCH lines will be interpreted as slurm flags

Then add your workflow: An algorithm of the steps to be done from the terminal point of view.
- Think about what you would have to do yourself in the terminal to:
  - run the tool in a login session from the terminal.
  - and do possible modification to allow for use of more cores

A (very) simple job script template

#!/bin/bash -l
#SBATCH -A sens2025560  # Project ID
#SBATCH -p core  # Asking for cores (for test jobs and as opposed to multiple nodes)
#SBATCH -n 2  # Number of cores
#SBATCH -t 00:1:00  # One minute
#SBATCH -J Test  # Name of the job

# go to some directory

cd /proj/sens2025560/
pwd -P

# load software modules
module load bioinfo-tools
module list

# do something
hostname
echo Hello world!
echo Using the srun command: Running the same commands using the available cores
srun hostname
srun echo Hello world!

Run it:
- $ sbatch jobscript.sh
Note the job id!
When job is done, depending on settings, there will be an output file called slurm-<job-id>.out
You can check the content with nano or cat
We can modify the slurm parameters for tests from the command-line.
- Like allocating 4 cores (instead 2 defined in the script)
- $ sbatch -n 4 jobscript.sh

Documentation

sbatch a script with command-line Slurm parameters

Check the jobs¶

squeue — quick info about jobs in (your project) in queue
squeue --me — quick info about your jobs

Exercises 30 minutes¶

Start an interactive session

Ask for like 30 minutes and 2 cores and add --mail-type=BEGIN
You will get an email when started so you don't miss some compute time!
Since it may take a while, continue with the other exercises!!

Documentation

Starting an interactive session on Bianca

???- tip "Answer"

 ``$ interactive -A sens2025560 -p devcore -n 2 -t 30:00 --mail-type=BEGIN``

You are developing code on Bianca.

You write the code line-by-line and schedule a test run after each addition.
However, after each new line, it takes a couple of minutes before you know your code worked yes/no.
How could you develop your code quicker?"

Answer

This is the typical use-case to use an interactive node.
One could also consider to develop code on a local computer instead (which uses nonsensitive/simulated/fake testing data) and upload the final code instead.

Why not always use an interactive session?

Because it is an inefficient use of your core hours.
An interactive session means that you use a calculation node with low efficiency: only irregularly you will use such a node to its full capacity.
However, the number of core hours are registered as if the node is used at full capacity, as it is reserved to be used at that capacity.

Which approach is best in the following use cases? Batch jobs or interactive sessions?

Long jobs
Short jobs with interactive "run-time"/interactive user input
Short jobs without interactive "run-time"/interactive user input
Test/debugging/developing code
Playing with and plotting large data

Answer

batch
interactice
batch
interactive
interactive

Use the interactive session

Tip

Wait with this if you have not got your resources yet!

When session is started, you can check which node you are from the information in your prompt, like: [bjornc@sens2025560-b9 ~]$
Once the interactive job has begun after a while you need to load needed modules, even if you had loaded them before in the login node
Load an RStudio module and an R_packages module (if not loading R you will have to stick with R/3.6.0) and run "rstudio" from there.

$ ml RStudio/2023.06.2-561
Start rstudio, keeping terminal active (&)

$ rstudio &

Quit RStudio!
Log out from interactive session with <Ctrl>-D or logout or exit

Submit the slurm job above 'Example Slurm job'

Create the script exampleBatch.sh by copy-pasting the content in 'A (very) simple job script template'
Send it to the queue

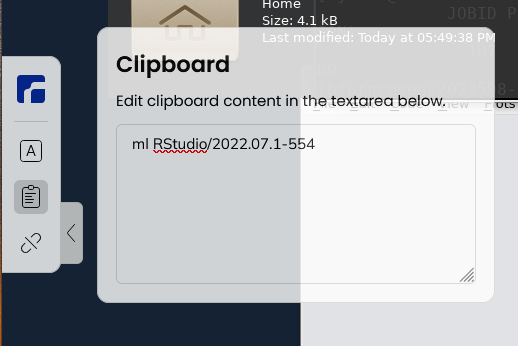

Tip

copy-paste

Documentation

sbatch a script with command-line Slurm parameters

Answer

nano exampleBatch.sh in a personal directory (home or in project)
insert the text above and save
sbatch exampleBatch.sh

Monitor jobs

Monitor all jobs with squeue command.
Monitor your jobs!
Do you find both the interactive session and the batch job?
Are they pending or active?

EXTRA: Play with some changes in the submit script used in the Type-along

Write a bash script called jobscript.sh
- You can be in your ~ folder
To make it faster Copy-paste the code above.
Examples:
- more cores
- other things to do

EXTRA: Submit a complex Slurm job

Make a batch job to run the demo "Hands on: Processing a BAM file to a VCF using GATK, and annotating the variants with snpEff". Ask for 2 cores for 1h.
- You can copy the my_bio_workflow.sh file in /proj/sens2025560/workshop/slurm to your home folder and make the necessary changes.

Answer

edit a file using you preferred editor, named my_bio_worksflow.sh, for example, with the content
alternatively copy the /proj/sens2025560/workshop/slurm/my_bio_workflow.sh file and modify it cd ~ cp /proj/sens2025560/workshop/slurm/my_bio_workflow.sh .
edit my_bio_workflow.sh and add the SBATCH commands

#!/bin/bash
#SBATCH -A sens2025560
#SBATCH -J workflow
#SBATCH -t 01:00:00
#SBATCH -p core
#SBATCH -n 2

cd ~
mkdir -p myworkflow
cd myworkflow

module load bioinfo-tools

# load samtools
module load samtools/1.17

# copy and example BAM file
cp -a /proj/sens2025560/workshop/data/ERR1252289.subset.bam .

# index the BAM file
samtools index ERR1252289.subset.bam

# load the GATK module
module load GATK/4.3.0.0

# make symbolic links to the hg38 genomes
ln -s /sw/data/iGenomes/Homo_sapiens/UCSC/hg38/Sequence/WholeGenomeFasta/genome.* .

# create a VCF containing inferred variants
gatk HaplotypeCaller --reference genome.fa --input ERR1252289.subset.bam --intervals chr1:100300000-100800000 --output ERR1252289.subset.vcf

# use snpEFF to annotate variants
module load snpEff/5.1
java -jar $SNPEFF_ROOT/snpEff.jar eff hg38 ERR1252289.subset.vcf > ERR1252289.subset.snpEff.vcf

# compress the annotated VCF and index it
bgzip ERR1252289.subset.snpEff.vcf
tabix -p vcf ERR1252289.subset.snpEff.vcf.gz

make the job script executable

$ chmod a+x my_bio_workflow.sh

submit the job

$ sbatch my_bio_workflow.sh

EXTRA: Have look at the link below

The job scheduler graphically
Which jobs will start faster?

Ending remarks¶

Discussion

Discuss the exercise
Any further thoughts?

The queue¶

Tip

You don't see the queue graphically.
But, overall:
- short and narrow jobs will start fast
- test and development jobs can get use of specific development nodes if they are shorter than 1 hour and uses up to two nodes.
- waste of resources unless you have a parallel program or need all the memory, e.g. 128 GB per node

Core-hours¶

Remember that you are charged CPU-hours according to booked #cores x hours
Example 1: 60 hours with 2 cores = 120 CPU-hours
Example 2: 12 hours with a full node = 192 hours
- Waste of resources unless you have a parallel program using all cores or need all the memory, e.g. 128 GB per node

Links¶

Keypoints

Slurm is a job scheduler to handle the compute nodes
- add flags to describe your job.
You are always in the login node unless you:
- start an interactive session to do development or hands-on work
- start a batch job to run jobs not needing any manual input
There is a job wall time limit of ten days (240 hours).
