IDEs

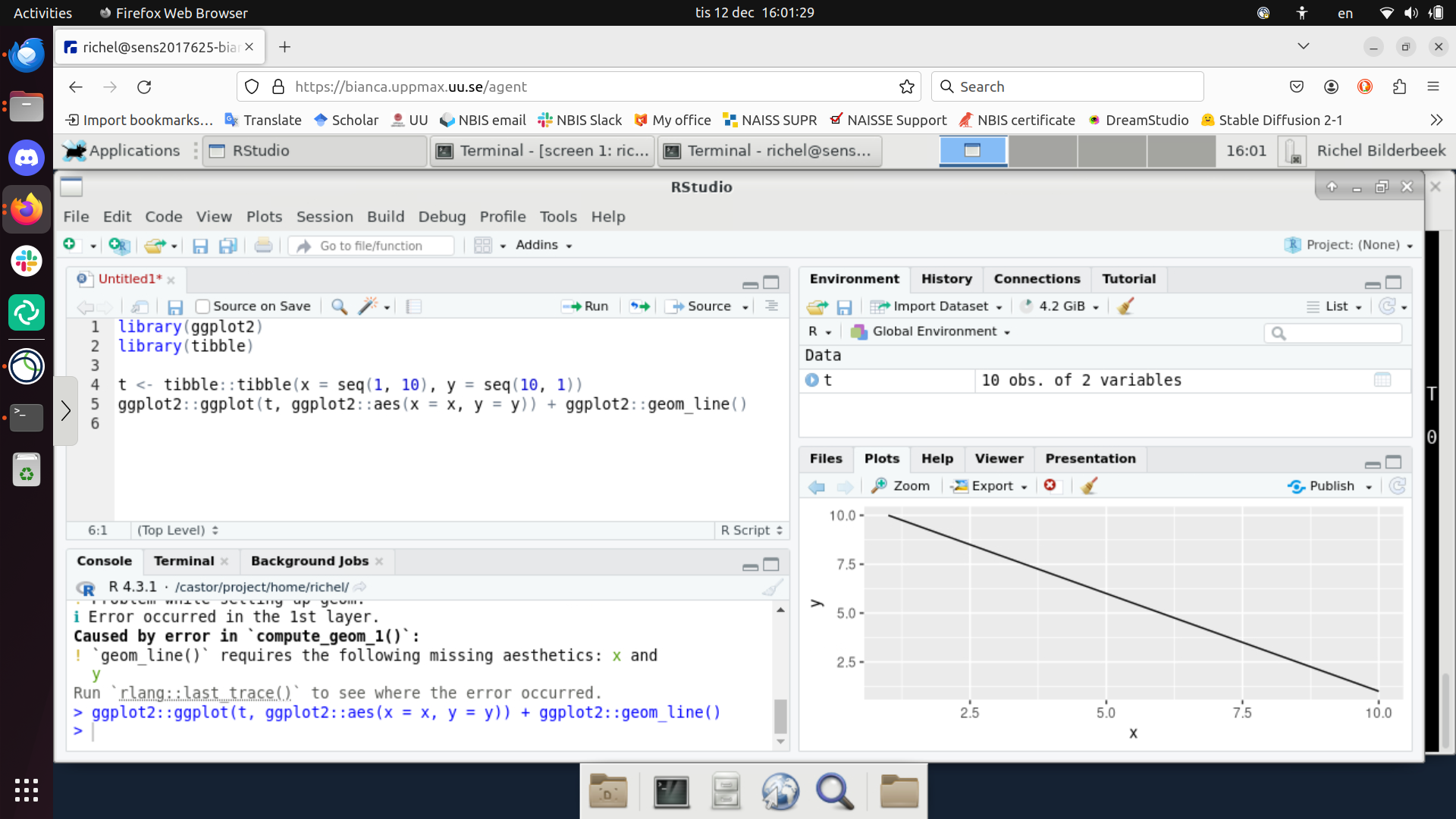

RStudio running on Bianca

RStudio is one of the IDEs that can be used on Bianca.

Objectives

  • Find information in the UPPMAX documentation about IDEs on Bianca
  • Give a reasonable definition of what an IDE is
  • Remember that RStudio, Jupyter, VSCodium and MATLAB are IDEs that can be run on Bianca
  • Can run the voted-for IDE on Bianca
  • (optional) Can give a reason why to use an IDE
  • (optional) Can give a reason why not to use an IDE on Bianca
  • (optional) Can give a reason why not to run an IDE on a login node
  • (optional) Can give a reason when to use an interactive session
  • (optional) Can find out if an interactive session is active
Notes for teachers

Teaching goals:

  • The learners have explored the UPPMAX documentation
  • The learners have seen that there are different IDEs on Bianca
  • The learners have start at least one IDE on Bianca
  • The learners understand why to use an IDE
  • The learners understand why not to use an IDE on Bianca
  • The learners understand when to run an IDE on a login node
  • The learners understand when to use an interactive session
  • The learners understand how to find out an interactive session is active

Lesson plan:

gantt
  title IDEs
  dateFormat X
  axisFormat %s
  Introduction: intro, 0, 5s
  Vote on whcih IDE: vote, after intro, 5s
  Exercise with winning IDE: crit, exercise, after vote, 20s
  Feedback: feedback, after exercise, 10s
  Monologue other 2 IDEs: monologue, after feedback, 5s
  Break: milestone, after monologue

Why?

You want to develop/modify code on Bianca in a program ...

  • ... that you already use on your regular computer
  • ... that is not the terminal
  • ... that helps you do so by providing code completion, code hints, run-time debugging, etc.

Hence, you want to use an IDE.

IDE (pronounce aj-dee-ee) is short for 'Integrated Development Environment', or 'a program in which you do programming'. The goal of an IDE is to help develop code, with features such as code completion, code hints and interactive debugging.

Using an IDE on Bianca is cumbersome and there are superior ways to develop code on Bianca, as -for example- taught in the UPPMAX 'Programming Formalisms' course.

There are three IDEs on Bianca we can show: Jupyter, RStudio or VSCodium. We will practice and discuss one, and briefly talk about the others.

Exercises

Exercise 0: determine which IDE

Tool Language(s) Comment
RStudio R Good for various working methods

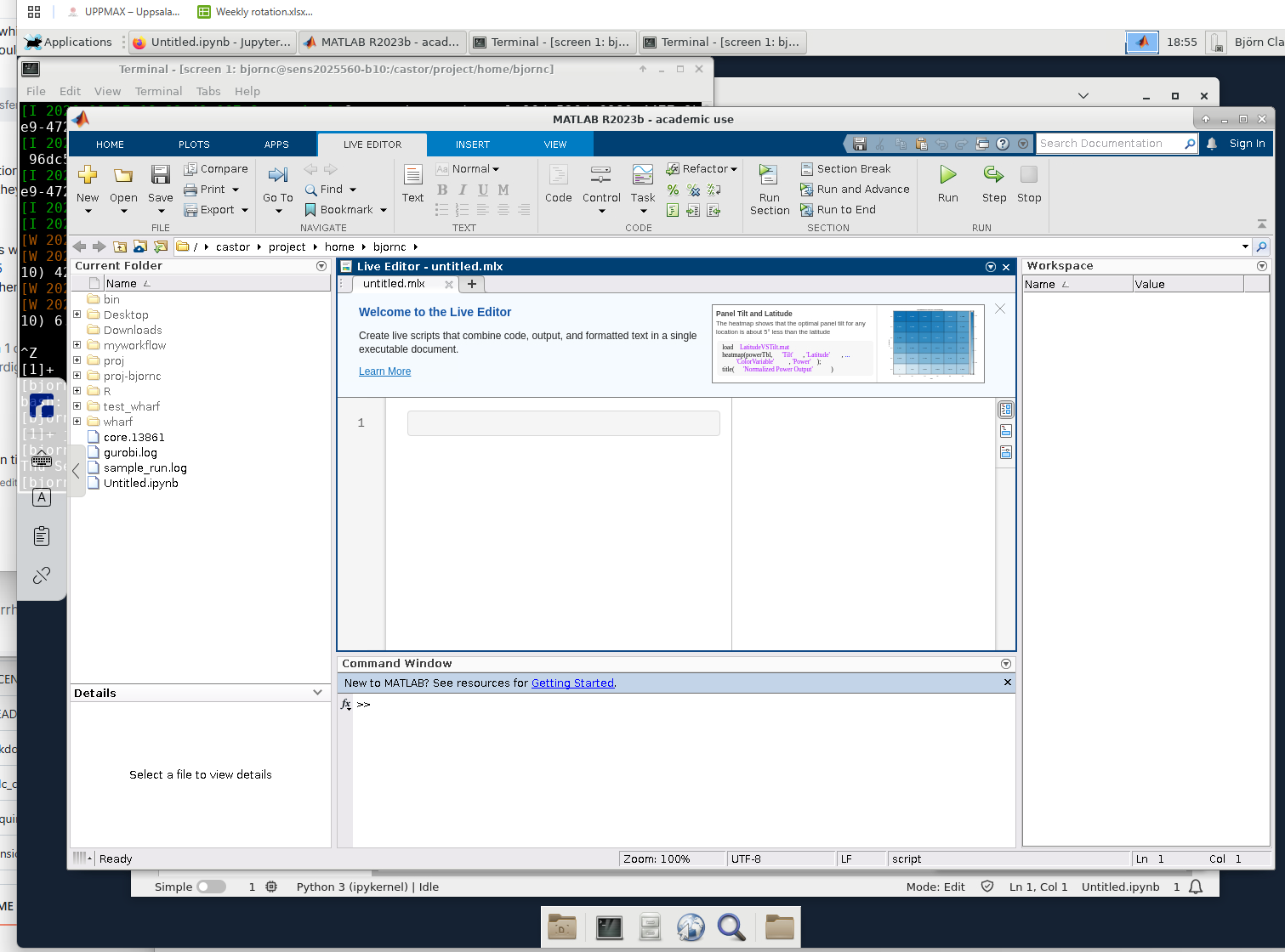

Matlab Matlab Good for various working methods

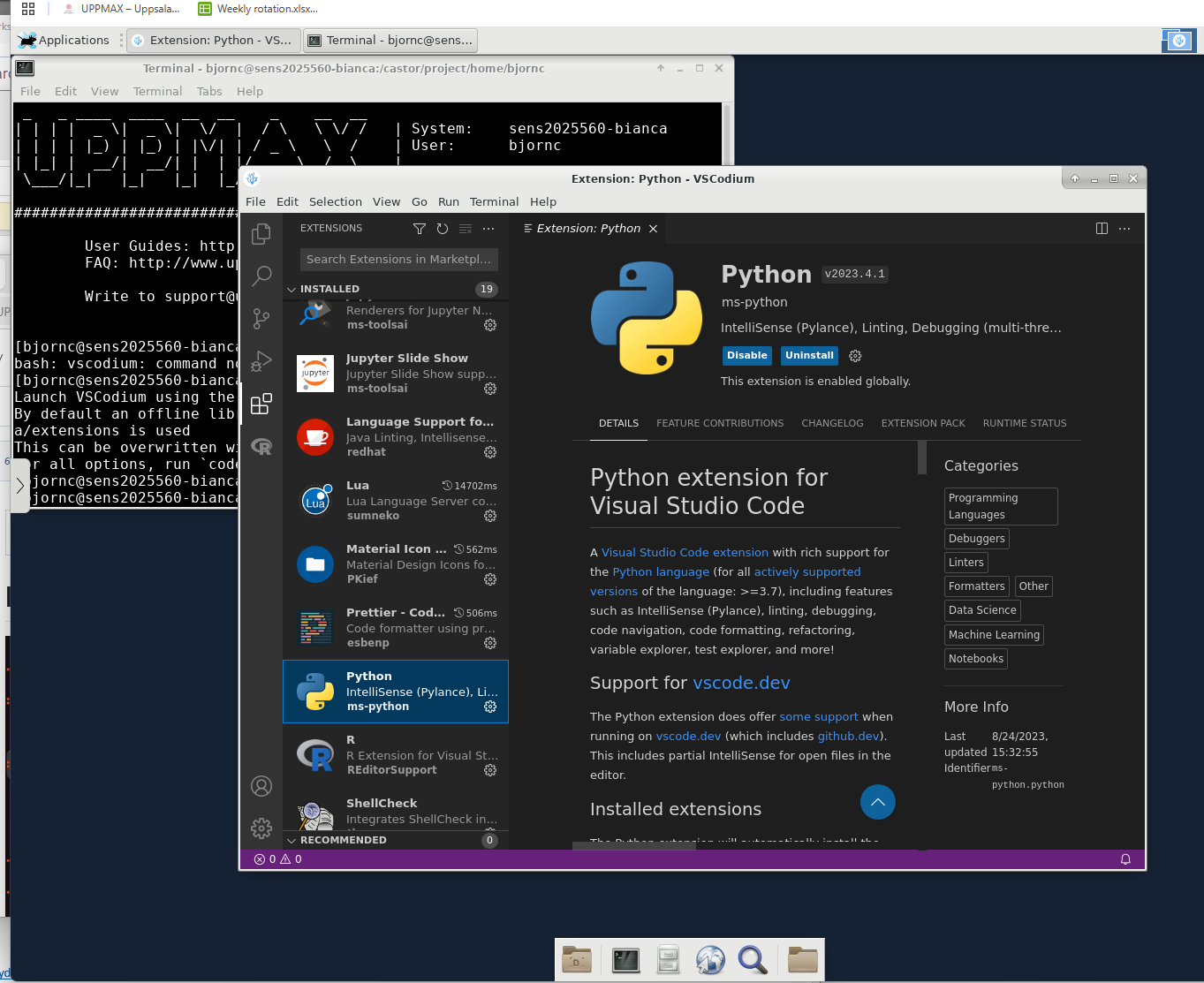

VSCodium All Very versatile but a bit hard to work with

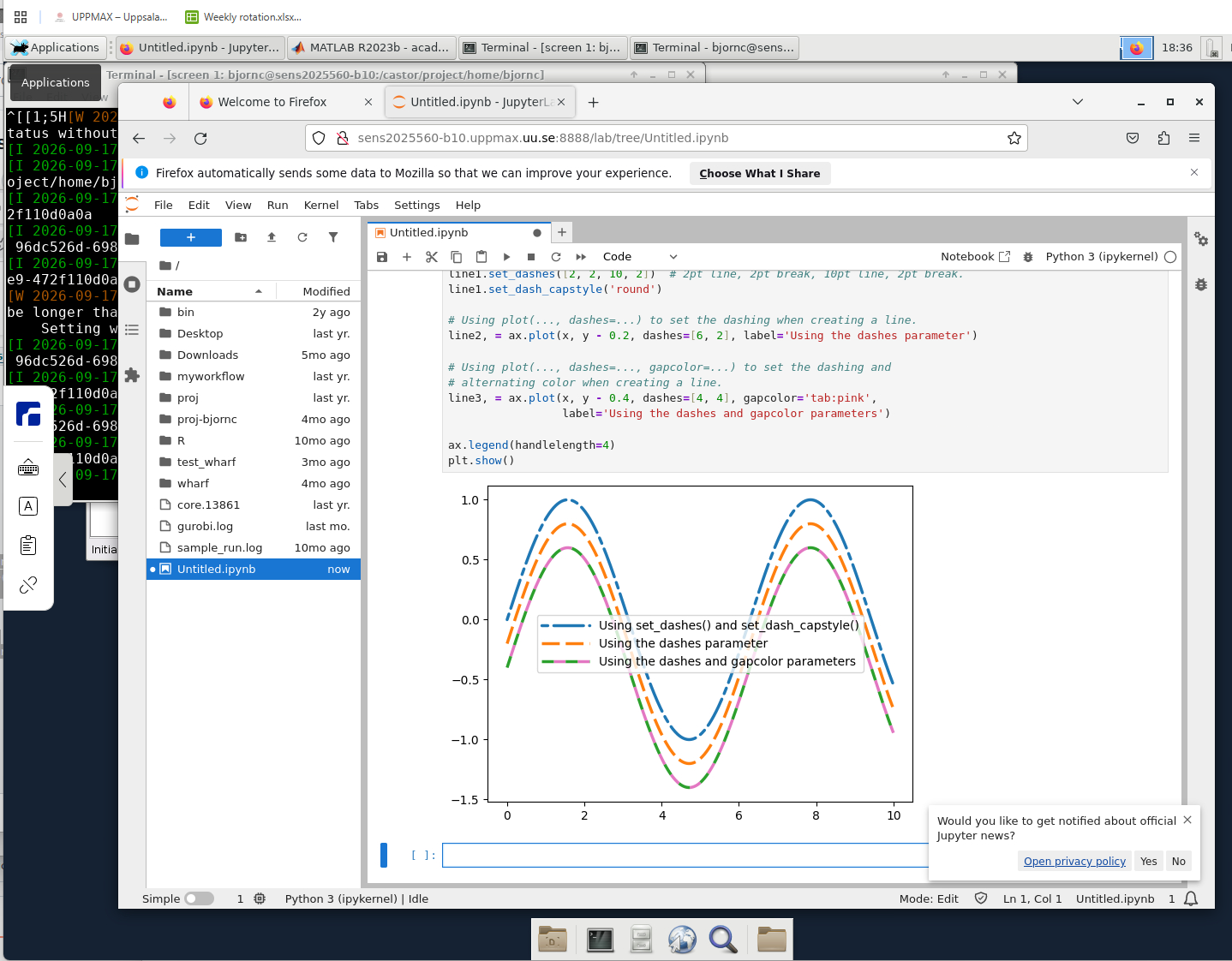

Jupyter Python (R, Julia) More notebook like
  • Use the Zoom breakout room for your favorite IDE

Exercise 1: Understand IDEs on Bianca

Learning outcomes
  • Explore the UPPMAX documentation
  • Understand why to use an IDE
  • Understand why not to use an IDE on Bianca
  • Understand that a ThinLinc session is needed
  • Understand when to run an IDE on a login node
  • Understand when to use an interactive session
  • Understand how to find out an interactive session is active
  • Try to answer the questions below. Be generous in accepting you answer. If you have no idea, use the UPPMAX documentation of the IDEs on Bianca. When done, run the other two IDEs on Bianca
Why use an IDE?

It makes new Bianca users feel comfortable, as an IDE is a recognizable environment. Also, the terminal can be daunting to some.

Additionally, an IDE allows one to do runtime debugging, i.e. running through code line-by-line and/or up/down the so-called call stack.

Why use ThinLinc (web) when working with IDEs?
  • IDEs are by definition graphical tools and needs graphics libraries.
  • SSH login to Bianca does not support graphics.
  • Therefore you need the remote desktop.
Why not always use an IDE?

Using an IDE on Bianca is cumbersome and there are superior ways to develop code on Bianca, as -for example- taught in the UPPMAX 'Programming Formalisms' course.

Is it OK to run IDEs on a login node? Why yes/no?

No. IDEs are big programs, use an interactive session instead.

You could argue if you are the only one on a Bianca project, you code use the login node. This only works if the IDE works fine on such limited computational resources.

-
  • Allocate at least 2 cores: ... -n 2 ....
  • If you are working with large data sets, allocate 7 GB per core, like 8, to get 56 GB.
Why not always use an interactive session?

Because it is an inefficient use of your core hours.

An interactive session means that you use a calculation node with low efficiency: only irregularly you will use such a node to its full capacity. However, the number of core hours are registered as if the node is used at full capacity, as it is reserved to be used at that capacity.

How to find out if you are on a login or interactive node?

In the terminal, type hostname

  • the login node has [project]-bianca, where [project] is the name of the project, e.g. sens2025560
  • the interactive node has b[number] in it, where [number] is the compute node number

Exercise 2: Start the favorite IDE

Learning outcomes
  • Explore the UPPMAX documentation
  • Start the favorite IDE on Bianca
  • Go to the UPPMAX documentation of the IDEs on Bianca
  • If you think it is necessary, start an interactive session. How was this done?
  • Start the IDE of your choice.
Answer

Keypoints

Do you lack an IDE on Bianca?
  • Give some input to us.

Summary

Keypoints

  • There are (at least) 4 IDEs instaleld on Bianca
  • How to start the mare descibed in the documentation
  • ThinLinc remote desktop is needed.
  • Starting an interactive session on a compute node is recommended.
