More about R packages

This page contains some more advanced information about R packages.

R packages: A short Primer

What is a package, really?

An R package is essentially a contained folder and file structure containing R code (and possibly C/C++ or other code) and other files relevant for the package e.g. documentation(vignettes), licensing and configuration files. Let us look at a very simple example

$ git clone https://github.com/MatPiq/R_example.git

$ cd R_example

$ tree
.
├── DESCRIPTION
├── NAMESPACE
├── R
│   └── hello.R
├── man
│   └── hello.Rd
└── r_example.Rproj
Installing tree as non-root on Linux Ubuntu

If you are on a Linux Ubuntu system where tree is not installed, and you do not have root permissions, you can do this to install it in your own area

1) Create a directory (in your home folder) to install in:

mkdir ~/mytree

Change to that directory:

cd ~/mytree

Now download tree:

apt download tree

Unpack the files:

dpkg-deb -xv ./*deb ./

You can use tree like this now, giving the full path:

~/mytree/usr/bin/tree

Note: if you want to be able to use it with the command “tree” you could set an alias in your ~/.bashrc file and then source it:

echo 'alias tree="$HOME/mytree/usr/bin/tree"' >> ~/.bashrc
source ~/.bashrc

Package states

An R packages can exist in five possible states

  • Source: “source code” or “source files”. Development form.
  • Bundled: The source code compressed into a single file, usually tar.gz and sometimes referred to as “source tarballs”. Files in .Rbuildignore are excluded.
  • Binary: A compressed and pre-compiled version of a bundle built for a specific architecture. Usually how the package is provided by CRAN. Much faster than having to compile yourself and no need for dev/build tools.
  • Installed: A decompressed binary package located in a package library (more on this later).
  • In-memory: When the installed package has been loaded from the library into memory, using require(pkg) or library(pkg).

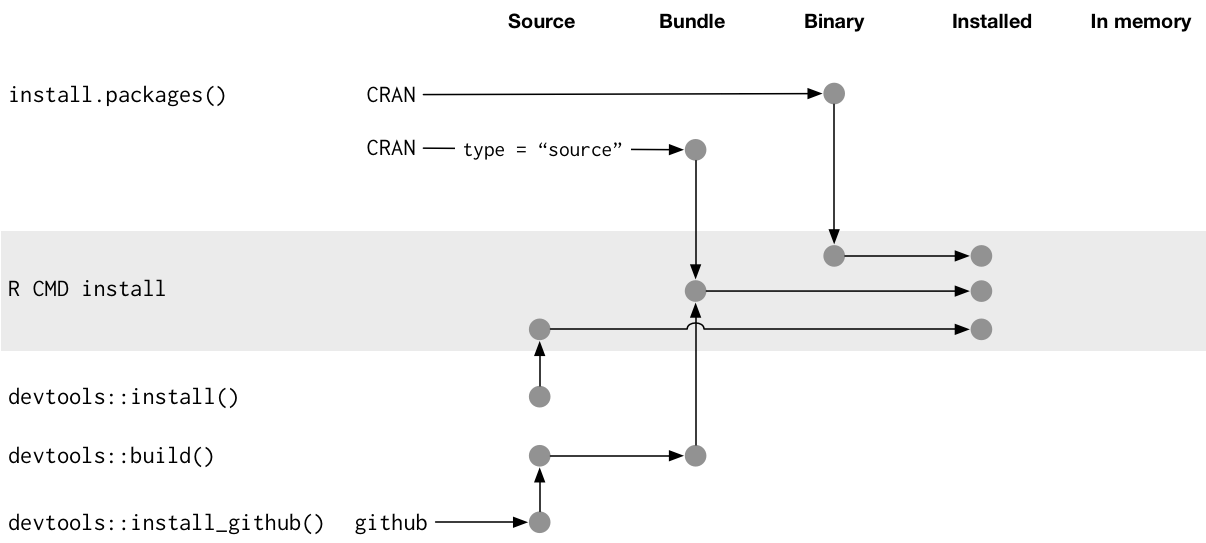

R package states

Source:

  • https://r-pkgs.org/structure.html and
  • https://nbisweden.github.io/RaukR-2021/rpackages_Sebastian/presentation/rpackages_Sebastian.html

Finding out if an R package is installed

There are many different ways to check if the package you are after is already installed - chances are it is! The simplest way is probably to simply try loading the package from within R

library(package-name)

Another option would be to create a dataframe of all the installed packages

ip <- as.data.frame(installed.packages()[,c(1,3:4)])

rownames(ip) <- NULL

ip <- ip[is.na(ip$Priority),1:2,drop=FALSE]

print(ip, row.names=FALSE)

However, this might not be so helpful unless you do additional filtering.

Another simple option is to grep the library directory. For example, both when loading R_packages at UPPMAX and R-bundle-Bioconductor at HPC2N the environment variable R_LIBS_SITE will be set to the path of the package library.

Load R_packages

$ ml R_packages/4.1.1

Then grep for some package

$ ls -l $R_LIBS_SITE | grep glmnet
dr-xr-sr-x  9 douglas sw  4096 Sep  6  2021 EBglmnet
dr-xr-sr-x 11 douglas sw  4096 Nov 11  2021 glmnet
dr-xr-sr-x  8 douglas sw  4096 Sep  7  2021 glmnetcr
dr-xr-sr-x  7 douglas sw  4096 Sep  7  2021 glmnetUtils

Load R-bundle-Bioconductor

$ ml GCC/11.2.0  OpenMPI/4.1.1 R-bundle-Bioconductor/3.14-R-4.1.2

Check the R_LIBS_SITE environment variable

$ echo $R_LIBS_SITE
/hpc2n/eb/software/R-bundle-Bioconductor/3.14-foss-2021b-R-4.1.2:/hpc2n/eb/software/arrow-R/6.0.0.2-foss-2021b-R-4.1.2

Then grep for some package in the BioConductor package library

$ ls -l /hpc2n/eb/software/R-bundle-Bioconductor/3.14-foss-2021b-R-4.1.2 | grep RNA
drwxr-xr-x  9 easybuild easybuild 4096 Dec 30  2021 DeconRNASeq/
drwxr-xr-x  7 easybuild easybuild 4096 Dec 30  2021 RNASeqPower/

Installing your own packages

Sometimes you will need R packages that are not already installed. The solution to this is to install your own packages. These packages will usually come from CRAN (https://cran.r-project.org/) - the Comprehensive R Archive Network, or sometimes from other places, like GitHub or R-Forge

Here we will look at installing R packages with automatic download and with manual download. It is also possible to install from inside Rstudio.

Setup

We need to create a place for the own-installed packages to be and to tell R where to find them. The initial setup only needs to be done once, but separate package directories need to be created for each R version used.

R reads the $HOME/.Renviron file to setup its environment. It should be created by R on first run, or you can create it with the command: touch $HOME/.Renviron

NOTE: In this example we are going to assume you have chosen to place the R packages in a directory under your home directory, but in general it might be good to use the project storage for space reasons. As mentioned, you will need separate ones for each R version.

If you have not yet installed any packages to R yourself, the environment file should be empty and you can update it like this:

$ echo R_LIBS_USER="$HOME/R-packages-%V" > ~/.Renviron

Warning

  • If it is not empty, you can edit $HOME/.Renviron with your favorite editor so that R_LIBS_USER contains the path to your chosen directory for own-installed R packages.

It should look something like this when you are done:

$ R_LIBS_USER="/home/u/user/R-packages-%V"

NOTE Replace /home/u/user with the value of $HOME. Run echo $HOME to see its value. NOTE The %V should be written as-is, it’s substituted at runtime with the active R version.

For each version of R you are using, create a directory matching the pattern used in .Renviron to store your packages in. This example is shown for R version 4.1.1:

$ mkdir -p $HOME/R-packages-4.1.1

Automatical download and install from CRAN

Note

You find a list of packages in CRAN (https://cran.r-project.org/) and a list of repos here: https://cran.r-project.org/mirrors.html

Please choose a location close to you when picking a repo.

$ R --quiet --no-save --no-restore -e "install.packages('<r-package>', repos='<repo>')"

install.packages('<r-package>', repos='<repo>')

In either case, the dependencies of the package will be downloaded and installed as well.

Example

In this example, we will install the R package stringr and use the repository http://ftp.acc.umu.se/mirror/CRAN/

Note: You need to load R (and any prerequisites, and possibly R-bundle-Bioconductor if you need packages from that) before installing packages.

$ R --quiet --no-save --no-restore -e "install.packages('stringr', repos='http://ftp.acc.umu.se/mirror/CRAN/')"

install.packages('stringr', repos='http://ftp.acc.umu.se/mirror/CRAN/')

There are other ways to install R packages, including from GitHub.

Automatic download and install from GitHub

If you want to install a package that is not on CRAN, but which do have a GitHub page, then there is an automatic way of installing, but you need to handle prerequsites yourself by installing those first. It can also be that the package is not in as finished a state as those on CRAN, so be careful.

To install packages from GitHub directly, from inside R, you first need to install the devtools package. Note that you only need to install this once.

This is how you install a package from GitHub, inside R:

install.packages("devtools")   # ONLY ONCE
devtools::install_github("DeveloperName/package")

Example

In this example we want to install the package quantstrat. It is not on CRAN, so let’s get it from the GitHub page for the project: https://github.com/braverock/quantstrat

We also need to install devtools so we can install packages from GitHub. In addition, quantstrat has some prerequisites, some on CRAN, some on GitHub, so we need to install those as well.

install.packages("devtools") # ONLY ONCE
install.packages("FinancialInstrument")
install.packages("PerformanceAnalytics")

devtools::install_github("braverock/blotter")
devtools::install_github("braverock/quantstrat")

Manual download and install

If the package is not on CRAN or you want the development version, or you for other reason want to install a package you downloaded, then this is how to install from the command line:

$ R CMD INSTALL -l <path-to-R-package>/R-package.tar.gz

NOTE that if you install a package this way, you need to handle any dependencies yourself.

Note

Places to look for R packages

  • CRAN (https://cran.r-project.org/)
  • R-Forge (https://r-forge.r-project.org/)
  • Project’s own GitHub page
  • etc.

Keypoints

  • You can check for installed packages
    • from inside R with installed.packages()
    • from BASH shell with the - ml help R/<version> at UPPMAX - ml spider R/<version> at HPC2N
  • Installation of R packages can be done either from within R or from the command line (BASH shell)
  • CRAN is the recommended place to look for R-packages, but many packages can be found on GitHub and if you want the development version of a package you likely need to get it from GitHub or other place outside CRAN. You would then either download and install manually or install with something like devtools, from within R.

Install own packages on Bianca

  • If an R package is not not available on Bianca already (like Conda repositories) you may have to use the wharf to install the library/package
  • Typical workflow
  • Install on Rackham
  • Transfer to Wharf
  • Move package to local Bianca R package path
  • Test your installation
  • Demo and exercise from our Bianca course:
  • Installing R packages on Bianca
