HPC clusters

The HPC centers UPPMAX, HPC2N, LUNARC, NSC and PDC

Five HPC centers

There are many similarities:

  • Login vs. calculation/compute nodes
  • Environmental module system with software hidden until loaded with module load
  • Slurm batch job and scheduling system

… many small differences:

  • commands to load R, Matlab and Julia and packages/libraries
  • sometimes different versions of R, Matlab and Julia, etc.
  • slightly different flags to Slurm

… and some bigger differences:

  • UPPMAX has three different clusters

    • Rackham for general purpose computing on CPUs only
    • Snowy available for local projects and suits long jobs (< 1 month) and has GPUs
    • Bianca for sensitive data and has GPUs

  • HPC2N has Kebnekaise with GPUs

  • LUNARC has Cosmos with GPUs (and Cosmos-SENS)
  • NSC has several clusters
    • BerzeLiUs (AI/ML, NAISS)
    • Tetralith (NAISS)
    • Sigma (LiU local)
    • Freja (R&D, located at SMHI)
    • Nebula (MET Norway R&D)
    • Stratus (weather forecasts, located at NSC)
    • Cirrus (weather forecasts, located at SMHI)
    • We will be using Tetralith, which also has GPUs
  • PDC has Dardel with AMD GPUs

Terminology: modules

We call the applications available via the module system modules. - HPC2N - LUNARC - NSC - PDC - UPPMAX

Briefly about the cluster hardware and system at UPPMAX, HPC2N, LUNARC, NSC and PDC

What is a cluster?

  • Login nodes and calculations/computation nodes

  • A network of computers, each computer working as a node.

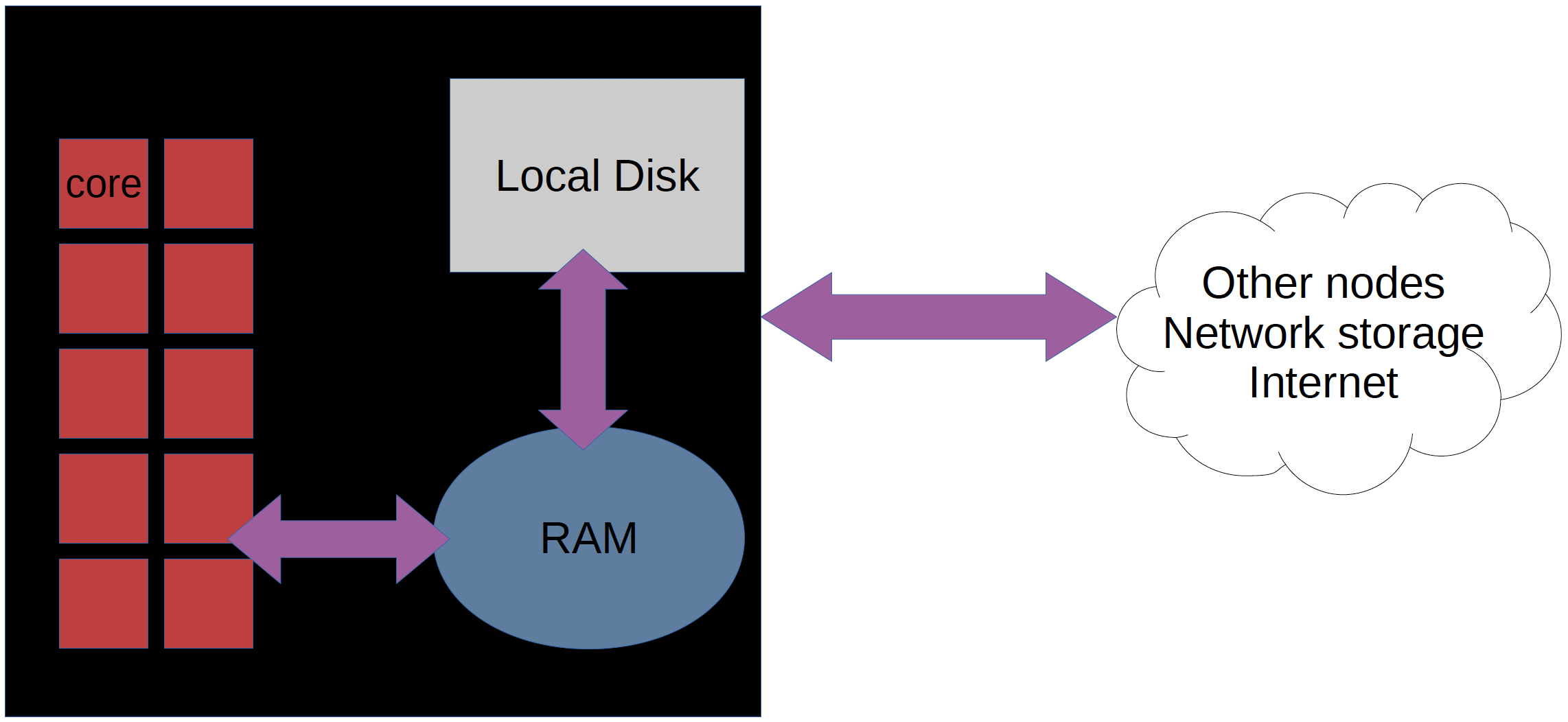

  • Each node contains several processor cores and RAM and a local disk called scratch.

A node

  • The user logs in to login nodes via Internet through ssh or Thinlinc.
    • Here the file management and lighter data analysis can be performed.

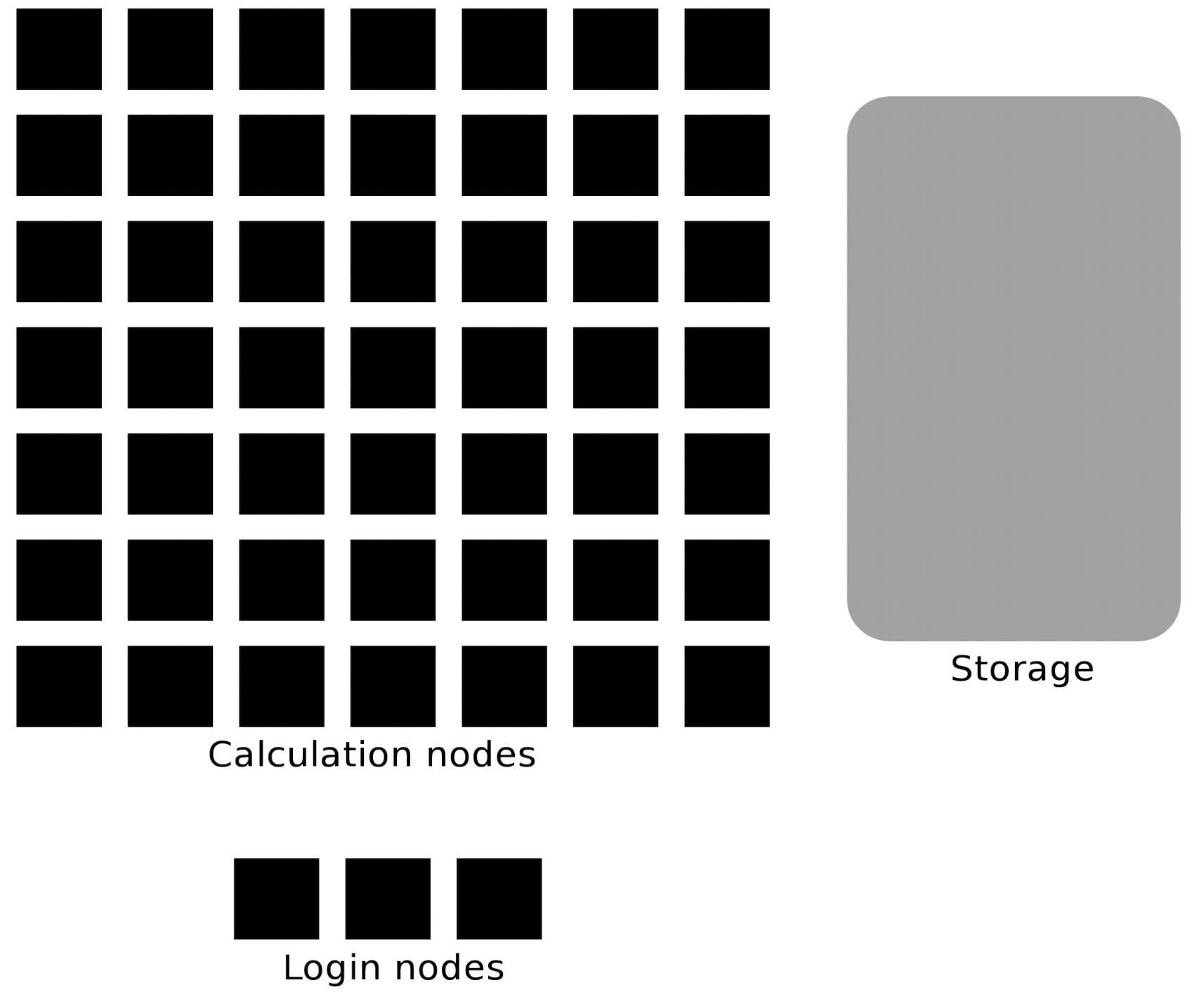

Multiple nodes

  • The calculation nodes have to be used for intense computing.

Common features

  • Linux kernel
  • Bash shell
  • x86-64 CPUs, some clusters with Intel processors and some with AMD.
  • NVidia GPUs (HPC2N/LUNARC, also AMD) except for Dardel with AMD.
HPC Cluster Kebnekaise Rackham Snowy Bianca COSMOS Tetralith Dardel
Cores/compute node 28 (72 for largemem, 128/256 for AMD Zen3/Zen4) 20 16 16 48 32 128
Memory/compute node 128-3072 GB 128-1024 GB 128-4096 GB 128-512 GB 256-512 GB 96-384 GB 256-2048 GB
GPU NVidia V100, A100, A6000, L40s, H100, A40, AMD MI100 None NVidia T4 NVidia A100 NVidia A100 NVidia T4 four AMD Instinct™ MI250X á 2 GCDs

Overview of the UPPMAX systems

graph TB Node1 -- interactive --> SubGraph2Flow Node1 -- sbatch --> SubGraph2Flow subgraph "Snowy" SubGraph2Flow(calculation nodes) end ThinLinc -- usr-sensXXX + 2FA + VPN ----> SubGraph1Flow Terminal/ThinLinc -- usr --> Node1 Terminal -- usr-sensXXX + 2FA + VPN ----> SubGraph1Flow Node1 -- usr-sensXXX + 2FA + no VPN ----> SubGraph1Flow subgraph "Bianca" SubGraph1Flow(Bianca login) -- usr+passwd --> private(private cluster) private -- interactive --> calcB(calculation nodes) private -- sbatch --> calcB end subgraph "Rackham" Node1[Login] -- interactive --> Node2[calculation nodes] Node1 -- sbatch --> Node2 end

Overview of the HPC2N system

graph TB Terminal/ThinLinc -- usr --> Node1 subgraph "Kebnekaise" Node1[Login] -- interactive --> Node2[compute nodes] Node1 -- sbatch --> Node2 end

Overview of the LUNARC system

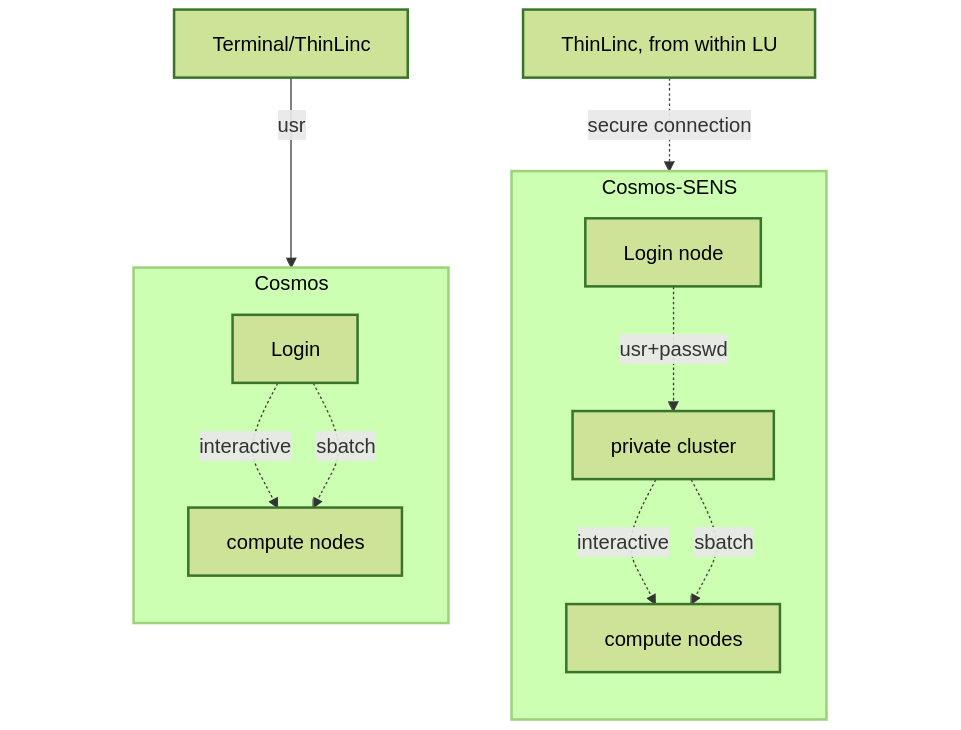

COSMOS resources

Overview of the NSC systems

Tetralith image
