Summary advanced day

Parallel computing

flowchart TD subgraph hpc_cluster[HPC cluster] subgraph node_1[Node] subgraph cpu_1_1[CPU] core_1_1_1[Core] end end end

Simplified HPC cluster architecture

Extent Parallelism
Core Single-threaded
Node Thread parallelism
HPC cluster Distributed parallelism

Types of parallelism, relevant to this courses

Amdahl's law

Amdahl’s law: the maximum speedup of code by parallelization is constrained by the code that cannot be run in parallel.

Thread parallelism

Language Keyword to indicate a parallel calculation
Julia Threads.@threads
MATLAB parfor
R %dopar%

Benchmark results: core seconds

Benchmark: the total core seconds per number of workers

Benchmark results: efficiency

Benchmark: Efficiency per number of workers

Benchmark results: speedup

Benchmark: Speedup per number of workers

  • Singlethreaded code makes the best use of your computational resources
  • HPC clusters differ
  • Languages differ
  • MATLAB does not use multithreading at all: it shows how a misconfigured job looks like

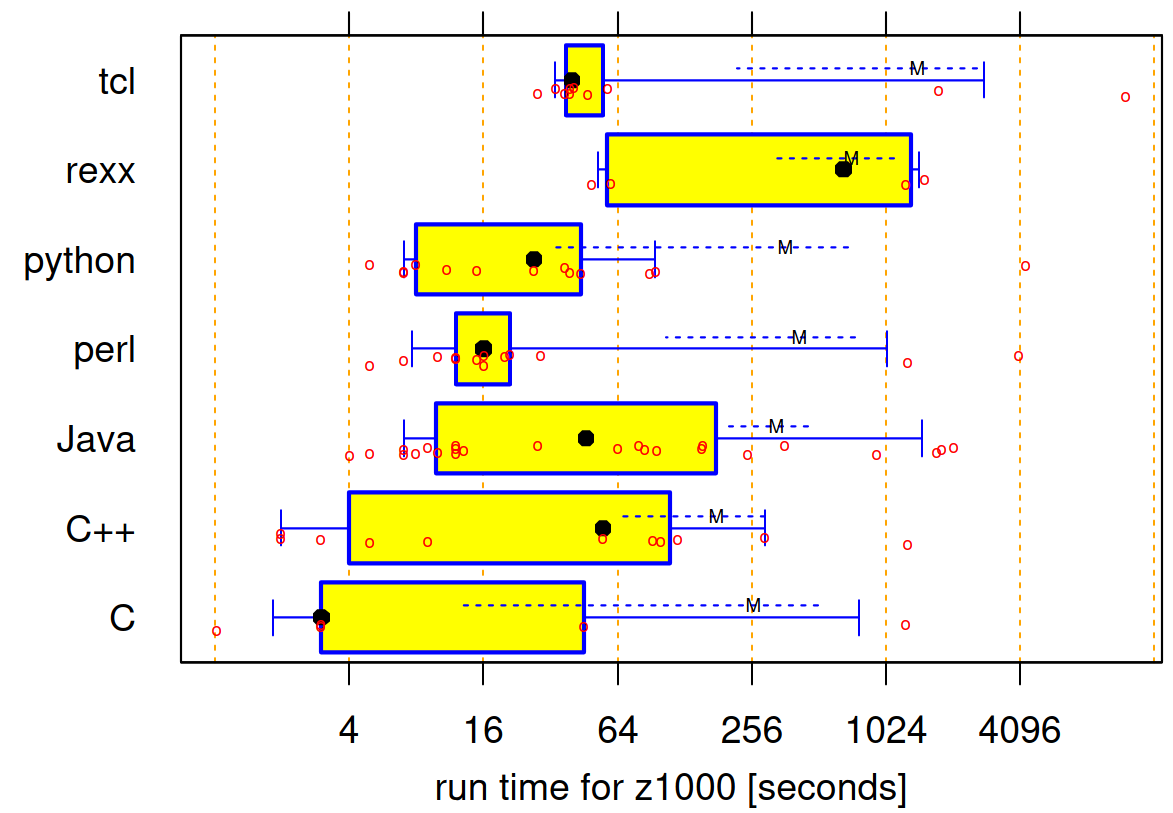

Figure 2, from Prechelt, 2000

  • No need to learn a different ‘faster’ programming language, as the variance within a programming language is bigger than variance between languages (adapted fig 2, from [Prechelt, 2000]). Instead, get good in the one you already know

Distributed parallelism

Learning outcomes

  • I can schedule jobs with distributed parallelism
  • I know the basic difference between threads and distributed memory in terms of memory share
  • I can explain how Julia/MATLAB/R code makes use of distributed parallelism

Summary

  • Memory and processes are distributed among tasks
  • Information sent between tasks only on demand
  • Native packages
    • own syntax and run with -p
    • MATLAB
  • MPI external library
    • MPI-like syntax and run with mpirun -np command or similar.

Big data

Learning outcomes

  • I understand how I can work with big data
  • I know where to find more information about big data

Summary

  • There are packages for all languages
    • Distributing parts of arrays
    • “Lazy computing”
  • Effective storage
    • Different file formats suits diffeent types of data
    • HDF5/NetCDF lets you load parts of the file into memory
  • Allocating memory
    • Allocate more cores
    • Use Slurm commands --mem=<size>GB or --mem-per-gpu=<size>GB

Introduction to GPUs

Learning outcomes

  • I can explain the difference between a CPU and a GPU
  • I can use GPUs with my language

Summary

  • GPUs process simple functions rapidly, and are best suited for repetitive and highly-parallel computing tasks
  • There are GPUs on NSC/Tetralith, PDC/Dardel, C3SE/Alvis, HPC2N/Kebnekaise, LUNARC/Cosmos, UPPMAX/Pelle, but they are different
  • It varies between centres how you allocate a GPU
  • You need to use either batch or interactive/OpenOnDemand to use GPUs

Machine Learning

Learning outcomes

  • I can check if an ML package is installed with a module
  • I can run ML code with my language

Summary

  • ML approaches
    • Supervised learning (with training examples)
      • classification
      • regression
    • Unsupervised learning (find structures in data))
      • clustering
      • dimensionality reduction
    • Reinforcement learning (take actions in different environment)
      • real-time decisions
      • game AIs
      • Robot navigation
  • When to use
    • When tasks are too complex or dynamic for a traditional algorithm
    • When you cannot define a set of rules to solve a problem, like image recognition and spam detection
    • When you have tasks involving large amounts of unstructured data (images, audio, etc.)
    • When you need to be able to easily adapt to new information over time
