Parallel computation

Learning outcomes

  • I can name and describe three types of parallel computation
  • I can explain at least 1 advantage of parallel computation
  • I can explain at least 2 disadvantages of parallel computation
  • I can explain how to use my computational resources effectively
For teachers

Teaching goals are:

  • Learners have scheduled and run a job that needs more cores, with a calculation in their favorite language
  • Learners understand when it is possible/impossible and/or useful/useless to run a job with multiple cores

Lesson plan:

  • 10 mins: Prior
  • 5 mins: Present
  • 15 mins: Challenge
  • 15 mins: Feedback

Prior:

  • What is parallel computing?
  • When to use parallel computing

Feedback:

  • When to use parallel computing?
  • When not to use parallel computing?
  • The main section is called ‘The ideal effectiveness of parallelism’. What does ‘ideal’ mean in this context? What could make parallelism less ideal?

Why parallel computing is important

Most HPC clusters use 7-10 days as a maximum duration for a job. Your calculation may take longer than that. One technique that may work is to use parallel computing, where one uses multiple CPU cores to work together on a same calculation

HPC cluster architecture

Here is a simplified picture of HPC cluster architecture:

flowchart TD subgraph hpc_cluster[HPC cluster] subgraph node_1[Node 1] subgraph cpu_1_1[CPU 1] core_1_1_1[Core 1] end end end
Term What it loosely is Amount
Core Something that does a calculation One or more per CPU
CPU A collection of cores that share the same memory One or more per node
Node A collection of CPUs that share the same memory One or more per HPC cluster
HPC cluster A collection of nodes One or more per universe
The universe A collection of HPC clusters One

Types of ‘doing more things at the same time’

There are many types of ‘doing more things at the same time’. One way to distinguish these, is to separate these on the extent of the parallelism:

Extent Parallelism
Core Single-threaded (you already do this)
Node Thread parallelism (today’s session)
HPC cluster Distributed parallelism
The universe Distributed parallelism

Today, we will extend your toolkit from a single-threaded calculation (you already do this) to thread parallelism.

The ideal effectiveness of parallelism

Before going into details, we will look at the effectiveness of parallelism in the most optimal case, with the goal that you can determine if it is worth it.

By now, you can probably guess that parallel computing spreads a calculation over multiple things that can calculate.

Imagine a calculation that takes 16 time units, represented as this:

1 core

A calculation of 16 time units run on 1 core, where square is a time unit of calculation.

Red square: a unit of calculation that cannot be run in parallel. Green square: a unit of calculation that can be run in parallel

Using 2 calculation units, this results in:

2 cores

A calculation of 16 time units run on 2 cores, where square is a time unit of calculation.

Red square: a unit of calculation that cannot be run in parallel. Green square: a unit of calculation that can be run in parallel. White square: a unit of calculation that is spent doing nothing

This takes the calculation down from 16 to 10 time units. The so-called ‘speedup’ of using two workers is 16 / 10 = 1.6.

How did you calculate the speedup exactly?

The speedup, S, equals:

S = t_regular / t_enhanced`

where:

  • t_enhanced is the time the enhanced process takes
  • t_regular is the time the regular/unenhanced process takes

In this context, the ‘enhanced process’ is the calculation performed by multiple cores.

Do not be confused by another version of Amdahl’s Law, that is expressed and the calculation units used (and where the numerator and denominator are swapped):

S =  n_used_enhanced / n_used_regular

where:

  • n_used_enhanced is the number of calculation units (the ‘work’) the enhanced process does
  • n_used_regular is the number of calculation units the regular process has
Isn’t that Gustafson’s Law?

Not directly.

We do use the same term ‘speedup’ as is calculated in Gustafson’s Law, yet we apply it to compare between a single-core and a multi-core process.

Gustafson’s Law predict the maximum speedup, which is

S = s + (p * N) = N - ((N - 1) * s) = 1 + ((N - 1) * p)
  • S is the speedup
  • s is fraction of the calculation that cannot be parallelized. The ‘s’ stands ‘serial’
  • p is fraction of the calculation that can be parallelized
  • N is the number of workers, in our case: cores

However, 4 (out of 20) calculations units are spent waiting. This means that 16 / 20 = 80% of the calculation time is spent efficiently.

How did you calculate the efficiency exactly?

The efficiency, f, equals:

f = t_used_effectively / t_total`

where:

  • t_used_effectively is the time spend on a calculation, summed up over all cores
  • t_total is the total time all spent by all cores

These two can be calculated as such:

t_used_effectively = (p + s) + (p * (N - 1))
t_total = time * N

where:

  • s is fraction of the calculation that cannot be parallelized. The ‘s’ stands ‘serial’
  • p is fraction of the calculation that can be parallelized
  • N is the number of workers, in our case: cores

Here one can see this calculation for more cores:

Program runtime Number of cores Time Speedup Efficiency
1 core 1 16 16 / 16 = 100% 16 / 16 = 100%

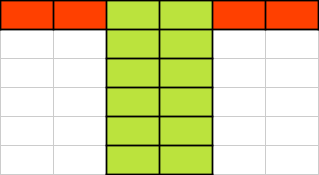

2 cores 2 10 16 / 10 = 160% (10 + 6) / (10 * 2) = 16 / 20 = 80%
3 cores 3 8 16 / 8 = 200% (10 + 6 + 6) / (10 * 3) = 22 / 30 = 73%
4 cores 4 7 16 / 7 = 229% (10 + 6 + 6 + 6) / (10 * 4) = 28 / 40 = 70%
6 cores 6 6 16 / 6 = 267% (10 + 6 + 6 + 6 + 6) / (10 * 5) = 34 / 50 = 68%

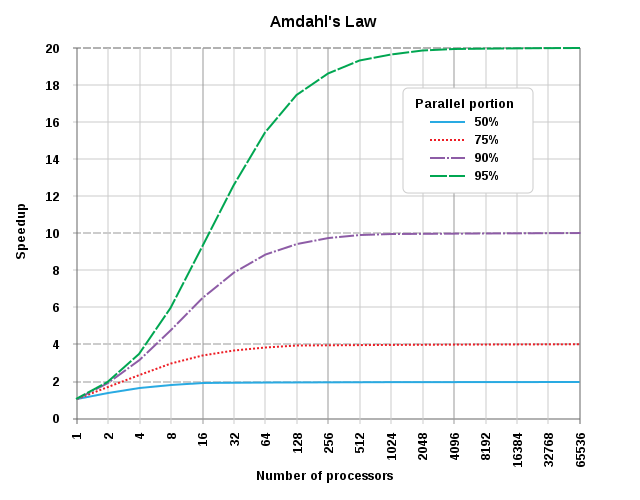

The best possible speed gain (as shown here) is called Amdahl’s Law and, in a general form, is plotted like this:

Amdahl's law

Question

  • Which of the lines in the graph of Amdahl’s Law corresponds with the worked-out example of 16 time units?
Answer

The red dotted line.

Using a different unit (i.e. ‘relative speed’, instead of ‘speedup’) was done on purpose. It is easy to convert between the two: just take the inverse (i.e. divide 1 by the value you have)

  • In the example of 16 time units, what is the shortest amount of time that can be spent on the calculation, given infinite resources?
Answer

The length of the calculation that cannot be run in parallel, which is 4 time units.

  • In this example, what is the maximal possible speedup?
Answer

400%, as the calculation takes 16 units of work on a single core, and 4 time units on an infinite amount of cores.

In mathematical form, the speedup, S, equals:

S = t_regular / t_enhanced
S = 16 / 4
S = 4
S = 400%

where:

  • t_enhanced is the time the enhanced process takes
  • t_regular is the time the regular/unenhanced process takes
  • For your research project, you need to run a lot of calculations. Each calculation takes 10 hours. How do you make optimal use of your computational resources?
Answer

Run the calculation on a single core for 100% efficiency

  • For your research project, you also have a calculation that takes 11 days. Your HPC cluster allows a calculation of at most 10 days. Assume your HPC center will not extend your job (they will sometimes do so when asked!). How do you make optimal use of your time?
Answer

If your calculation already has parallelism built-in, then run the calculation on two cores: this only involves changing your Slurm script, with a low loss of computational resources.

If you are a really tight on computational resources, you can implement a ‘save state’ in your calculation, so that you can schedule two runs of nine days in succession, each with 100% efficiency.

Alternatively, you can added thread parallelism to allow running with multiple cores.

  • Your colleague runs many jobs with a lot of cores. ‘It is way faster!’, he/she states. That same colleague, however, also complains about long waiting times before his/her jobs start. How would you explain this situation?
Answer

The colleague used up (or: ‘wasted’) all his/her computational resources (commonly 10,000 core hours per month on UPPMAX).

Due to this, his/her jobs are only run when the HPC cluster has a low workload and activates the so-called ‘bonus queue’ (UPPMAX) or generally have to wait for their priority to go up again.

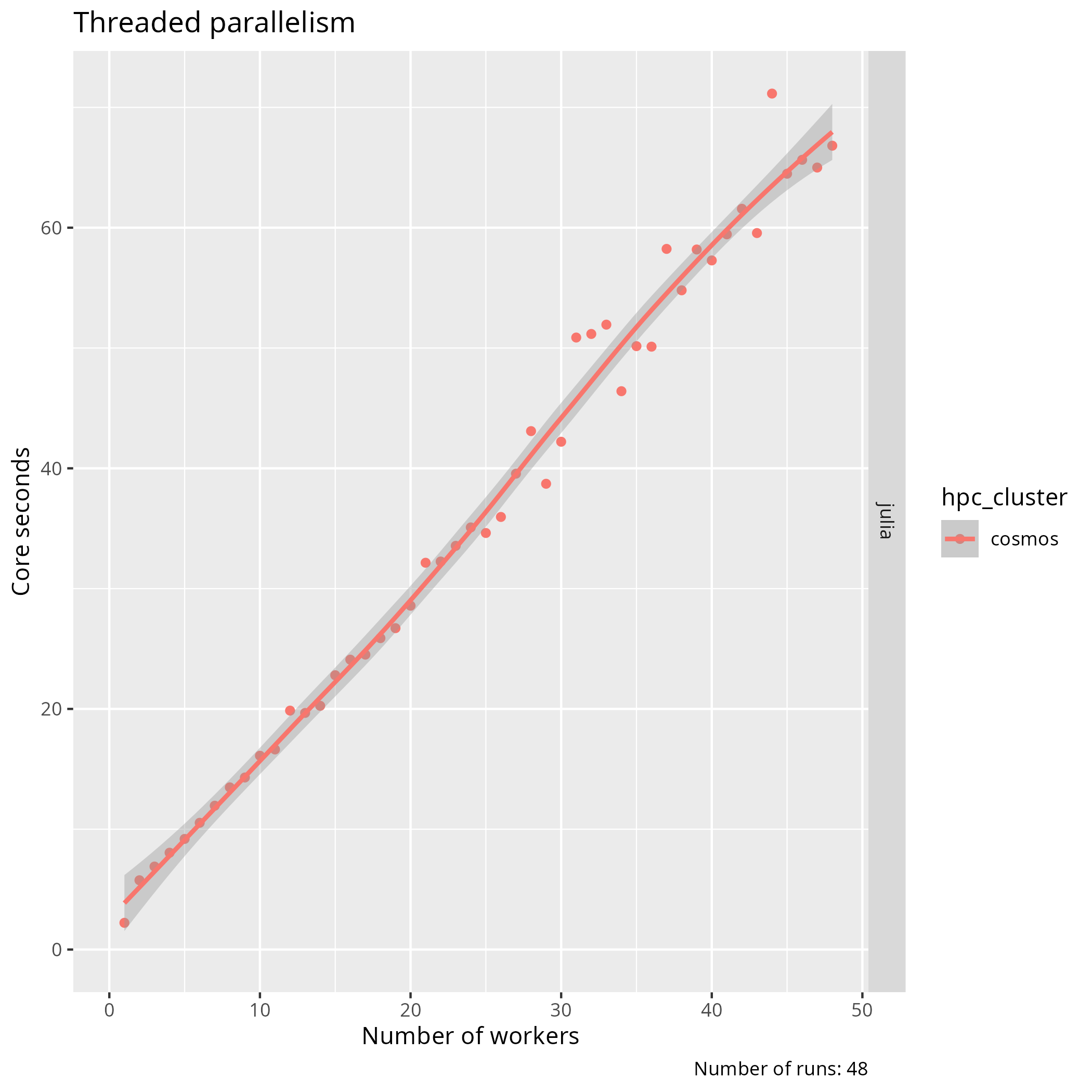

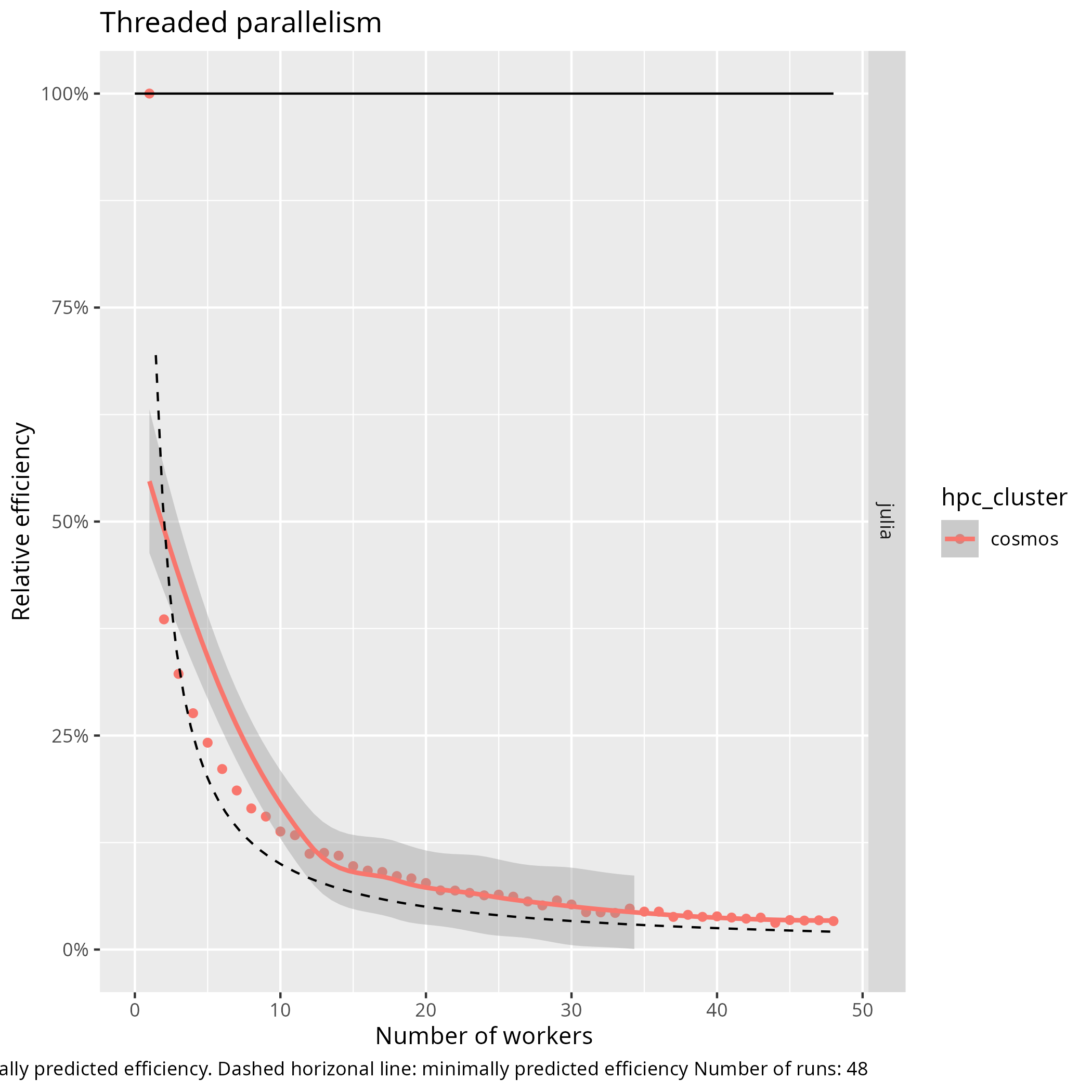

  • Your colleague has done a benchmark and concluded the plot below. What seemed to be the percentage of his/her code that could be run in parallel?

Benchmark of speedup

Answer

TODO
