LLM Inference

LM Studio

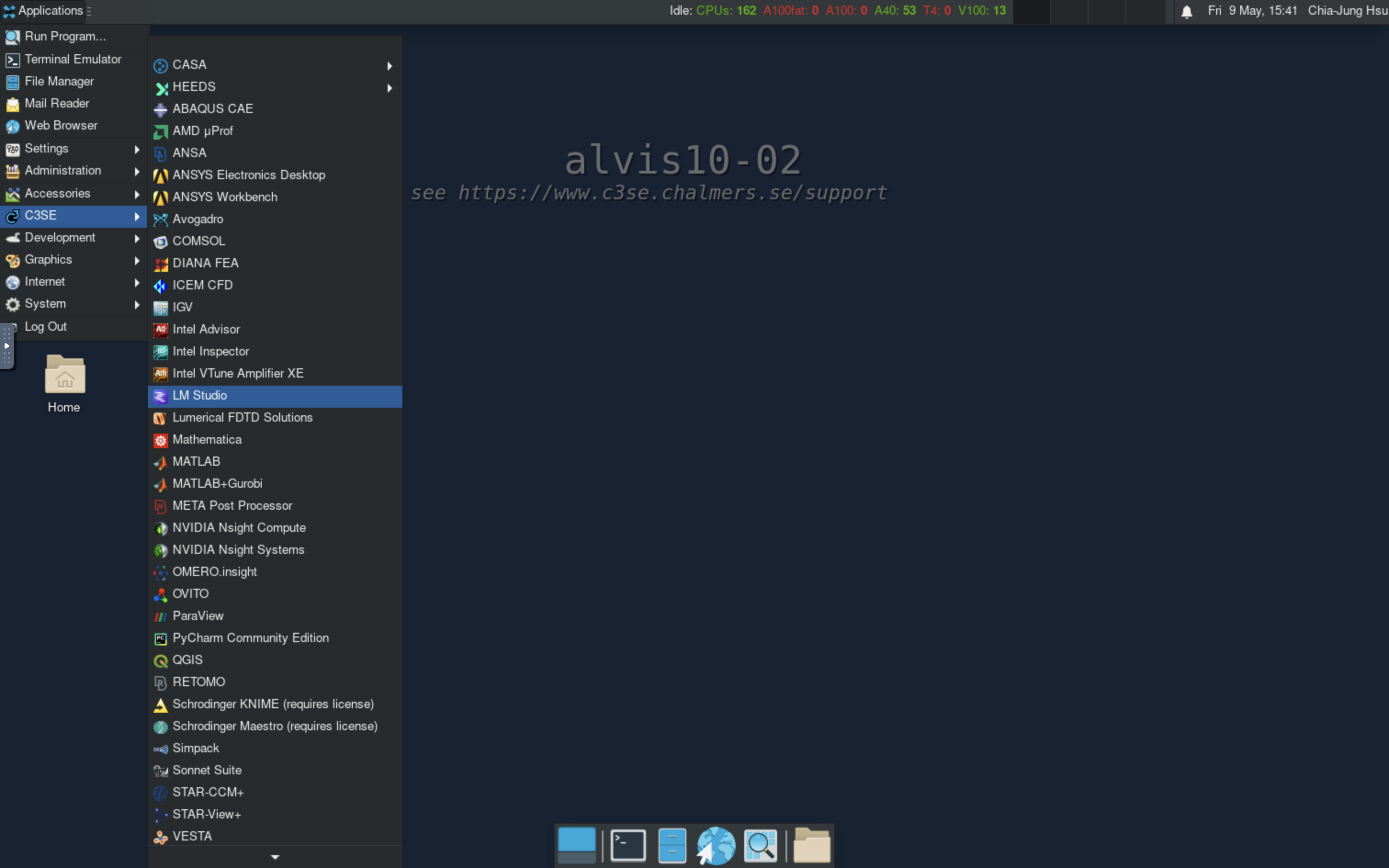

LM Studio on Alvis

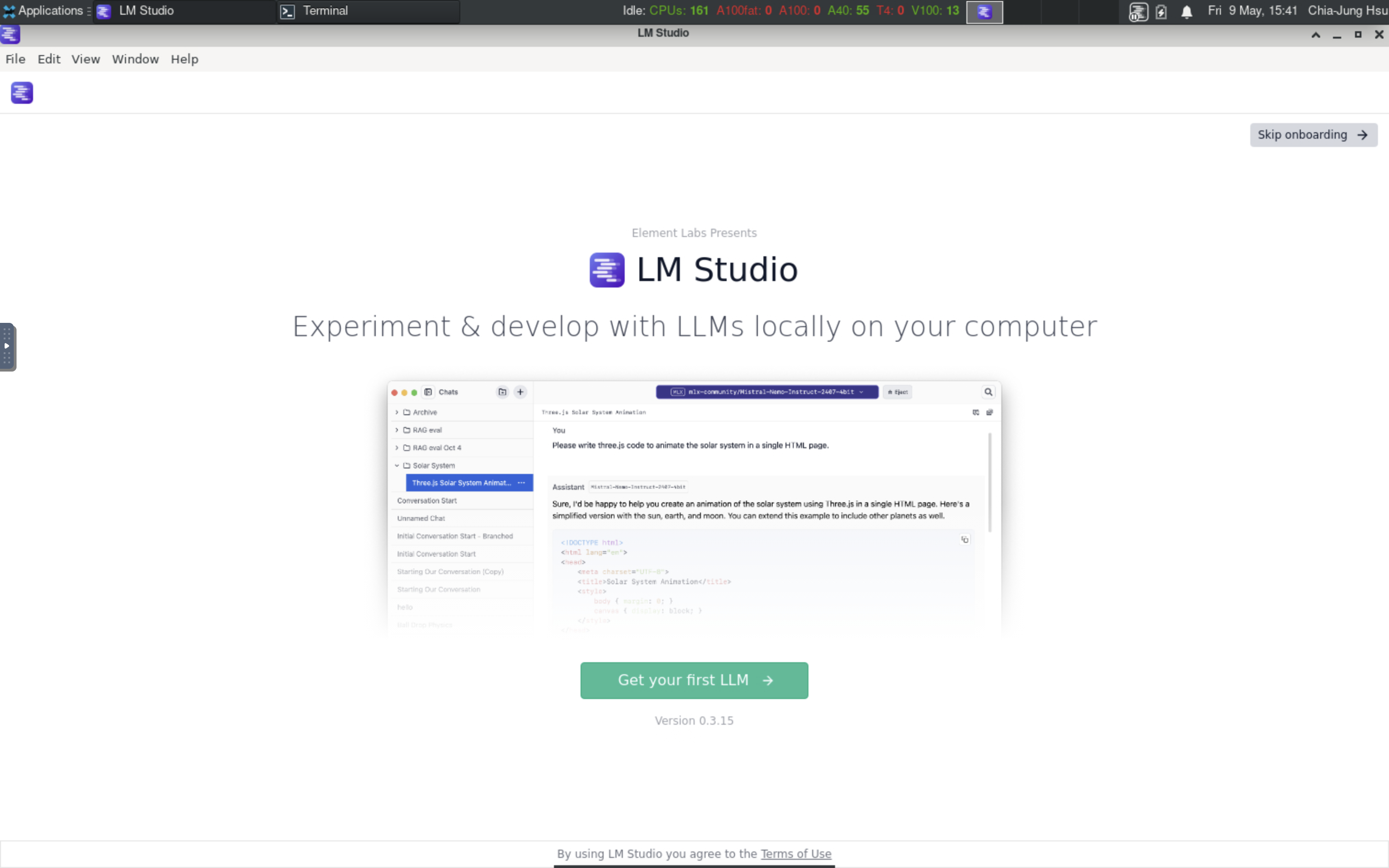

LM Studio desktop app

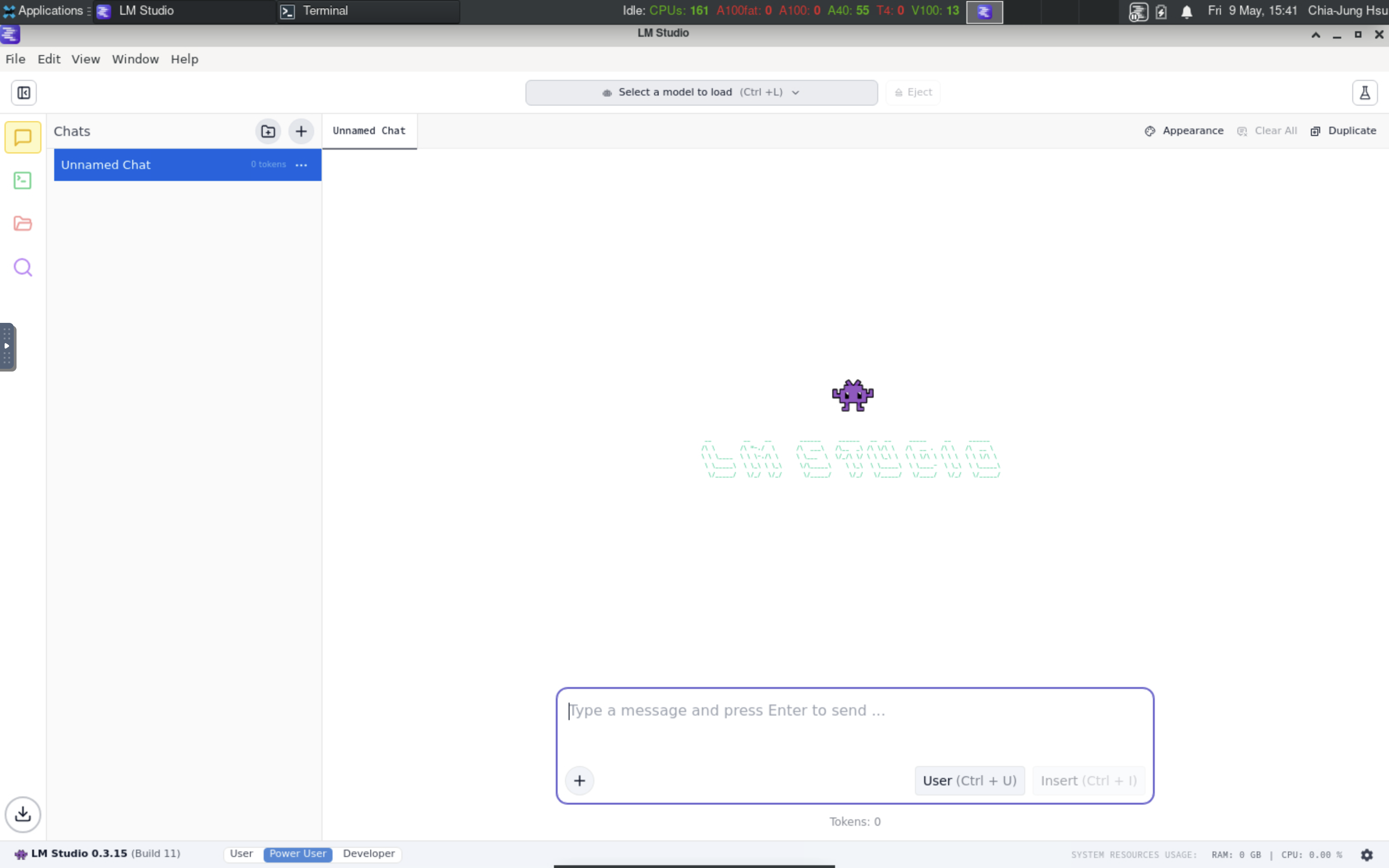

Chat interface

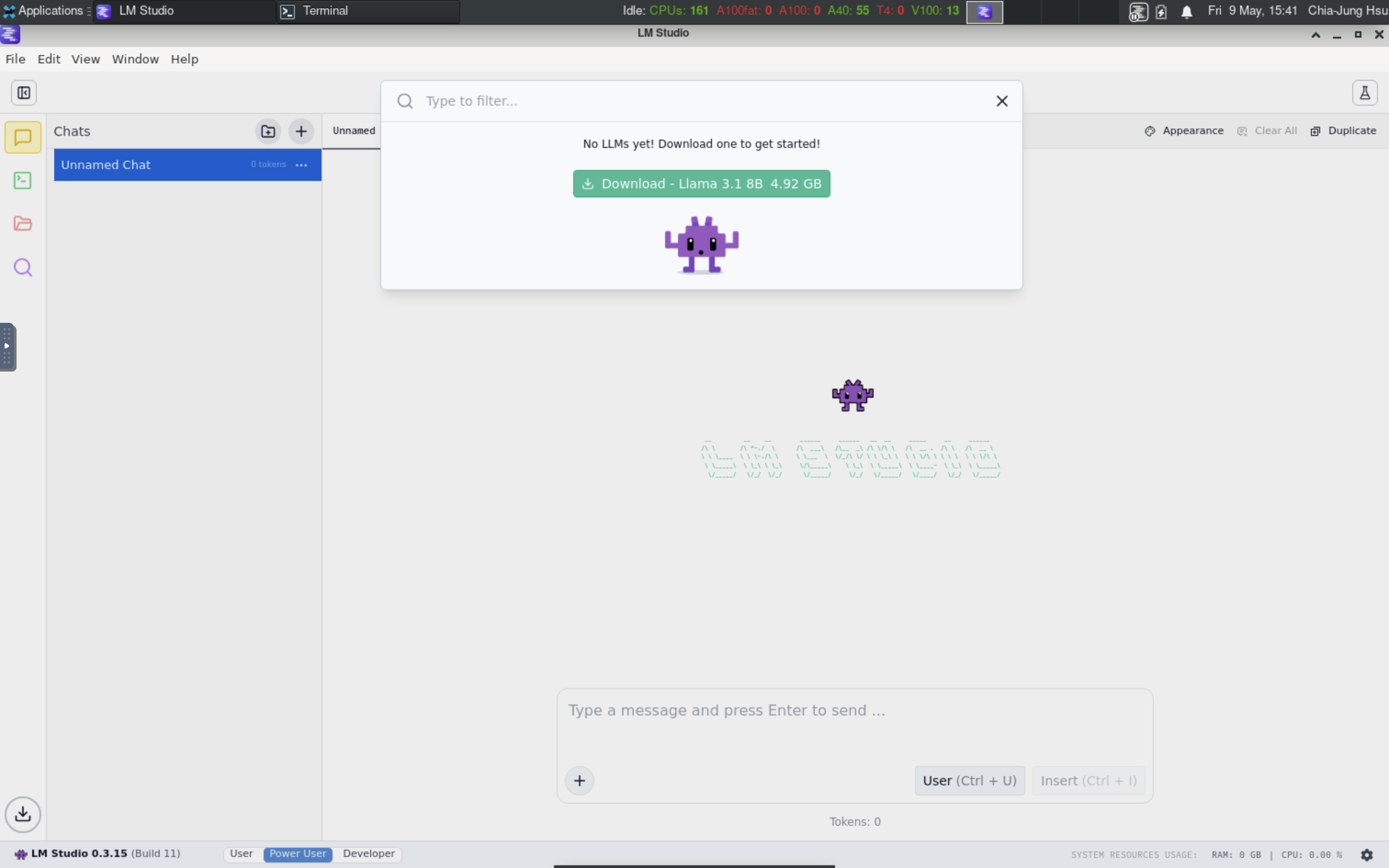

Model download

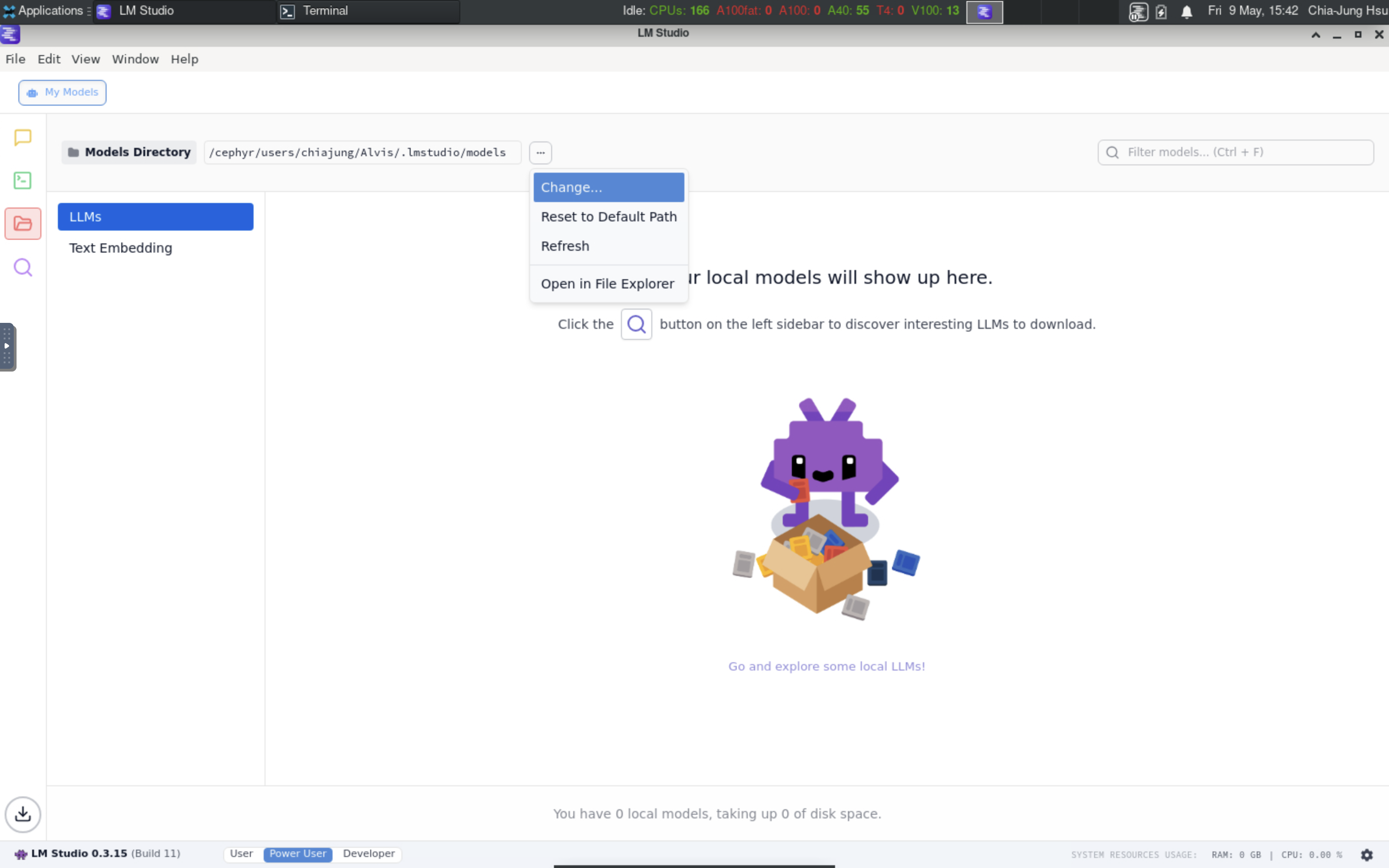

Select download directory

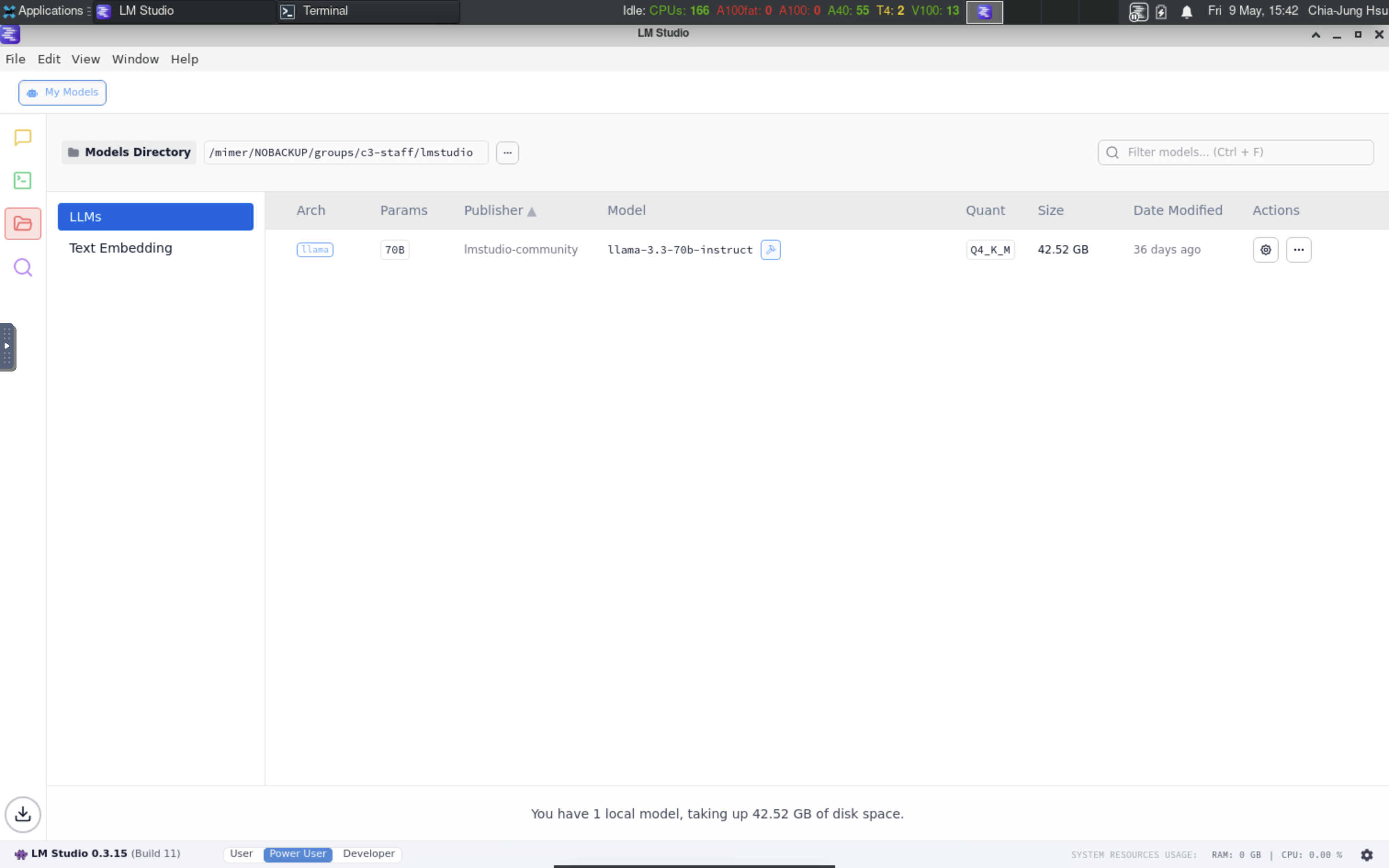

Check downloaded models

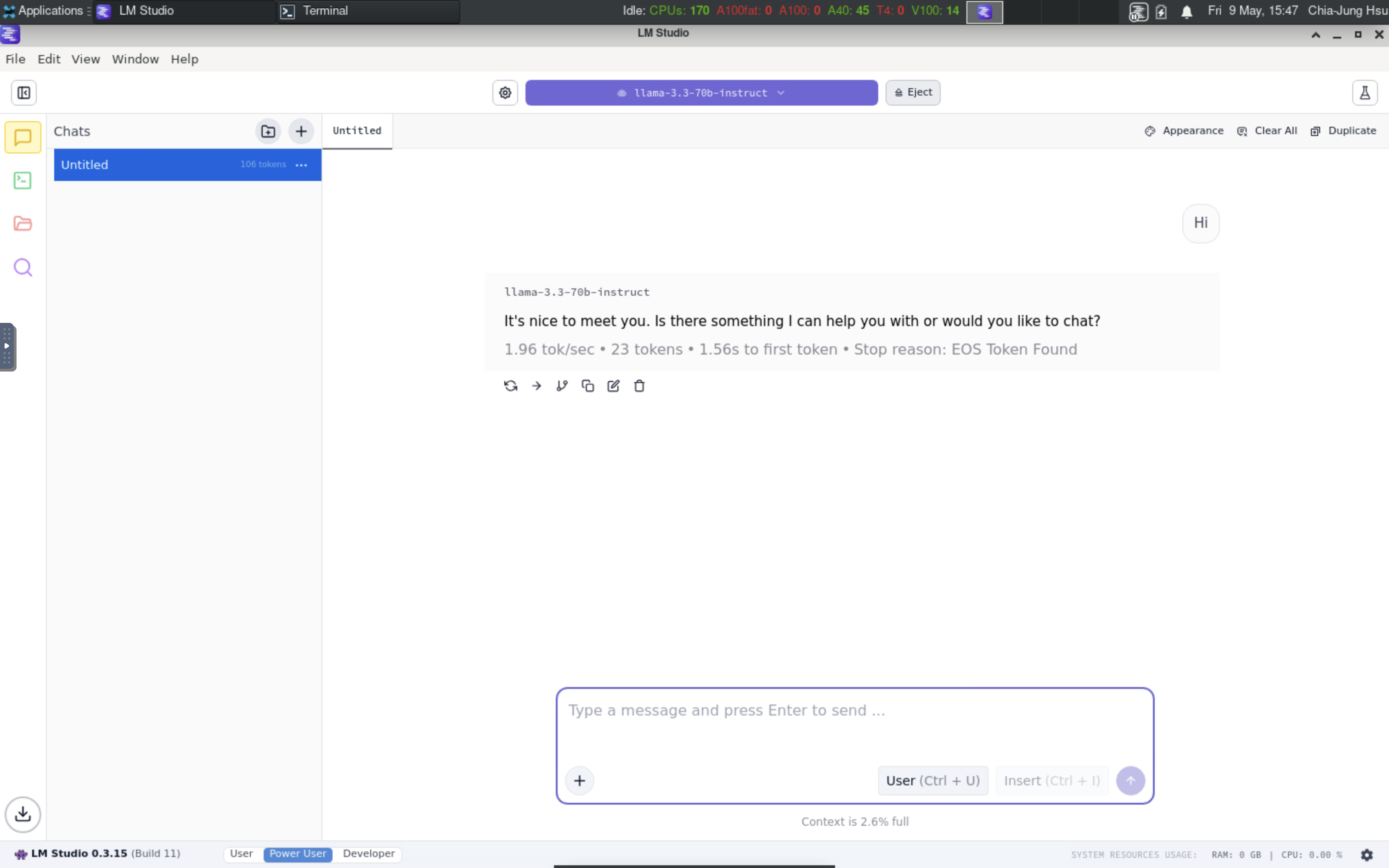

Load model and chat

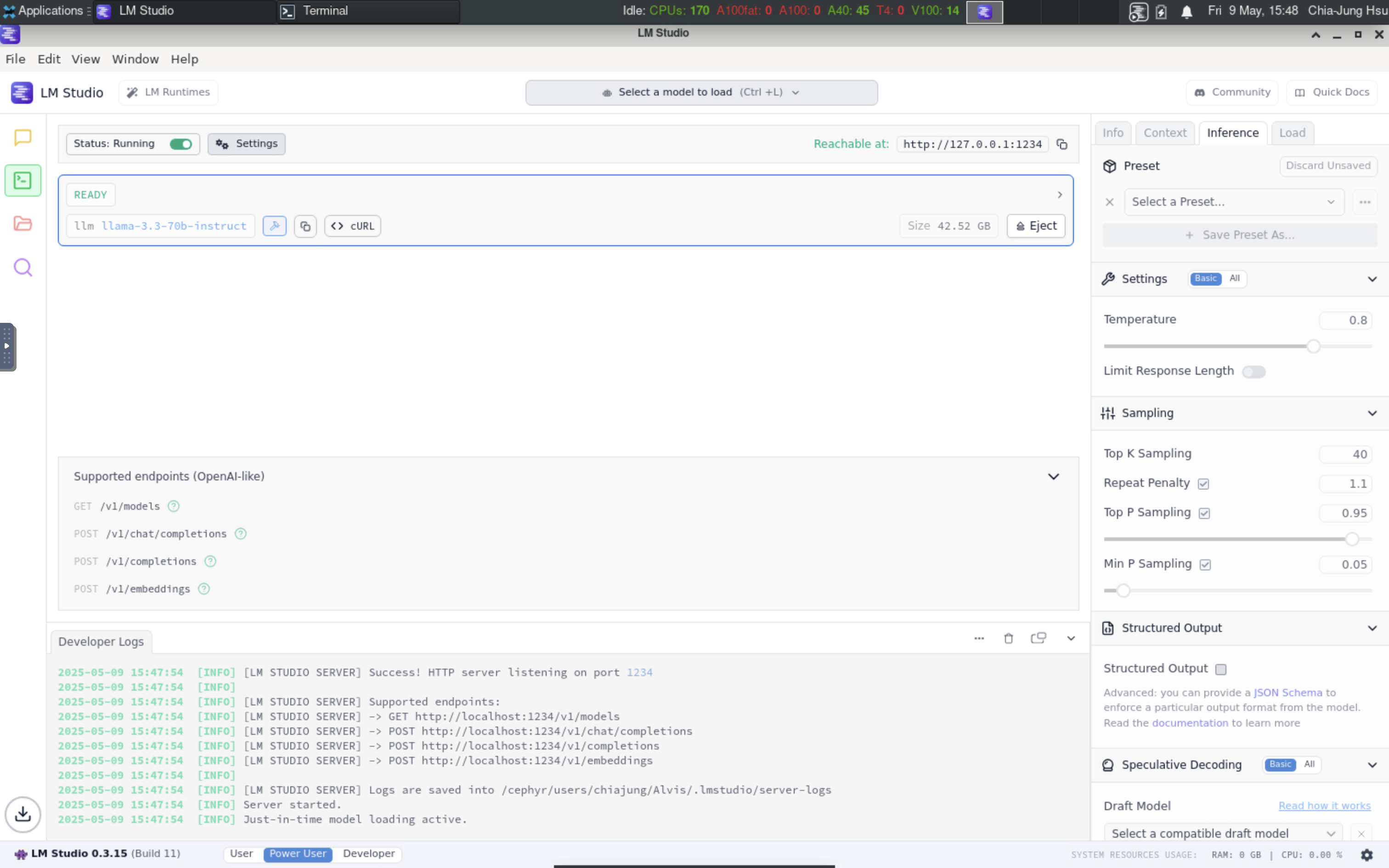

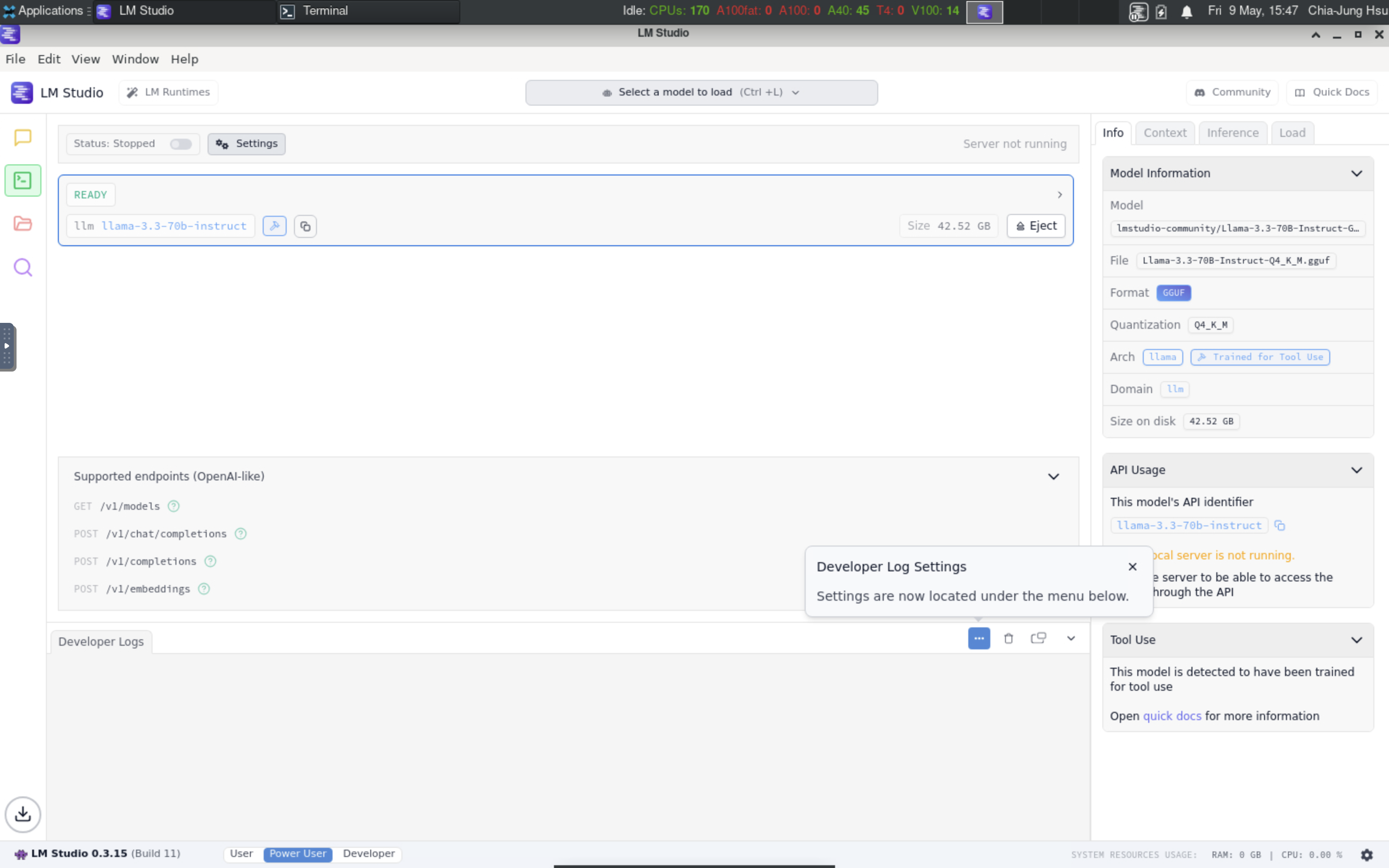

OpenAI-compatible API server

Endpoints

• Four endpoints:
  • /v1/models
  • /v1/chat/completions
  • /v1/completions
  • /v1/embeddings

Use OpenAI API

• Get available models:

$ curl http://localhost:1234/v1/models

• Chat to a model:

$ curl http://localhost:1234/v1/chat/completions -H "Content-Type: application/json" -d '{
    "model": "llama-3.3-70b-instruct",
    "messages": [
        { "role": "user", "content": "why is the sky blue" }
    ]
}'

• LM Studio document
• OpenAI API document

OpenAI Python SDK

from openai import OpenAI

client = OpenAI(base_url="http://localhost:1234/v1")

model_list = client.models.list()
print(model_list)

response = client.chat.completions.create(
    messages=[{"role": "user", "content": "why is the sky blue?"}]
)
print(reponse)

Chat completion arguments

Command line tools

$ ~/.lmstudio/bin/lms status

   ┌ Status ───────────────────────────────────┐
   │                                           │
   │   Server:  ON  (Port: 1234)               │
   │                                           │
   │   Loaded Models                           │
   │     · llama-3.3-70b-instruct - 42.52 GB   │
   │                                           │
   └───────────────────────────────────────────┘

Command line tools (continue)

$ ~/.lmstudio/bin/lms ps

   LOADED MODELS

Identifier: llama-3.3-70b-instruct
  • Type:  LLM
  • Path: lmstudio-community/Llama-3.3-70B-Instruct-GGUF/Llama-3.3-70B-Instruct-Q4_K_M.gguf
  • Size: 42.52 GB
  • Architecture: Llama

Check more: ~/.lmstudio/bin/lms --help

Advanced settings

Exercise

- Launch your own LM Studio on compute node - Use `curl` to get response - Use OpenAI python SDK to get response

vLLM

OpenAI-Compatible API Server

• Launch server: vllm serve unsloth/Llama-3.2-1B-Instruct
  • default URL: http://localhost:8000
  • set host: --host <host>
  • set port: --port <port>
  • More arguments

Once a server is launched, in another terminal:

• Chat: vllm chat
• Completion: vllm complete
• Benchmark: vllm bench

Note:

- Using `unsloth/Llama-3.2-1B-Instruct` will download model from huggingface to your `HF_HOME` directory. - To load local model, you can use `/..../models--unsloth--Llama-3.2-1B-Instruct/snapshots/d2b9e3...../`

Endpoints

• Part of the endpoints

  • /v1/models
  • /v1/responses
  • /v1/responses/{response_id}
  • /v1/chat/completions
  • /v1/completions
  • ...
  • /openapi.json
  • /docs
  • /health
  • ...

• Similiarly, get available models:

  $ curl http://localhost:8000/v1/models


Offline inference (LLM class)

• LLM python class

from vllm import LLM

# Initialize the vLLM engine.
llm = LLM(model="unsloth/Llama-3.2-1B-Instruct")

• Arguments are similar to the ones used in vllm serve except for some missing features like pipeline parallelism.

LLM class methods

• Chat

from vllm import LLM, SamplingParams

sampling_params = SamplingParams(
    temperature=0.6,
    max_tokens=128,
    top_p=0.9,
)

messages = [
    {"role": "user", "content": "Why is the sky blue?"},
]

llm = LLM(
    model="unsloth/Llama-3.2-1B-Instruct",
    tensor_parallel_size=4,
)

output = llm.chat(messages, sampling_params, use_tqdm=False)
print(output[0].outputs[0].text)

• More examples.

Exercise

- Launch your own vLLM server on compute node - Write a jobscript to launch vLLM - Use `curl` in your jobscript to get response the vLLM server - Write another python file and use OpenAI python SDK to get response - Use `LLM` class to load model and generate some output

Huggingface Transformers

OpenAI-Compatible API Server

• Launch server: transformers serve (model is not selected yet)
• Endpoints:
  • /v1/chat/completions
  • /v1/responses
  • /v1/audio/transcriptions
  • /v1/models
• Chat in another teminal: transformers chat --model-name-or-path openai/gpt-oss-20b
• More information

Lower level operation

from transformers import AutoModelForCausalLM, AutoTokenizer

model_name = "openai/gpt-oss-20b"
tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(
    model_name, torch_dtype="auto", device_map="auto"
)

messages = [
    {"role": "user", "content": "Explain what MXFP4 quantization is."},
]

inputs = tokenizer.apply_chat_template(
    messages, add_generation_prompt=True, return_tensors="pt", return_dict=True,
).to(model.device)

outputs = model.generate(
    **inputs, max_new_tokens=200, temperature=0.7
)

print(tokenizer.decode(outputs[0]))

Exercise

- Use `AutoModel` and `AutoTokenizer` class to load model and generate some output

Other Tools

• SGLang
• Huggingface TGI
• Ollama
